➤ Used SPINNER MVC-1600 For Sale | gindumac.com

Show in original language

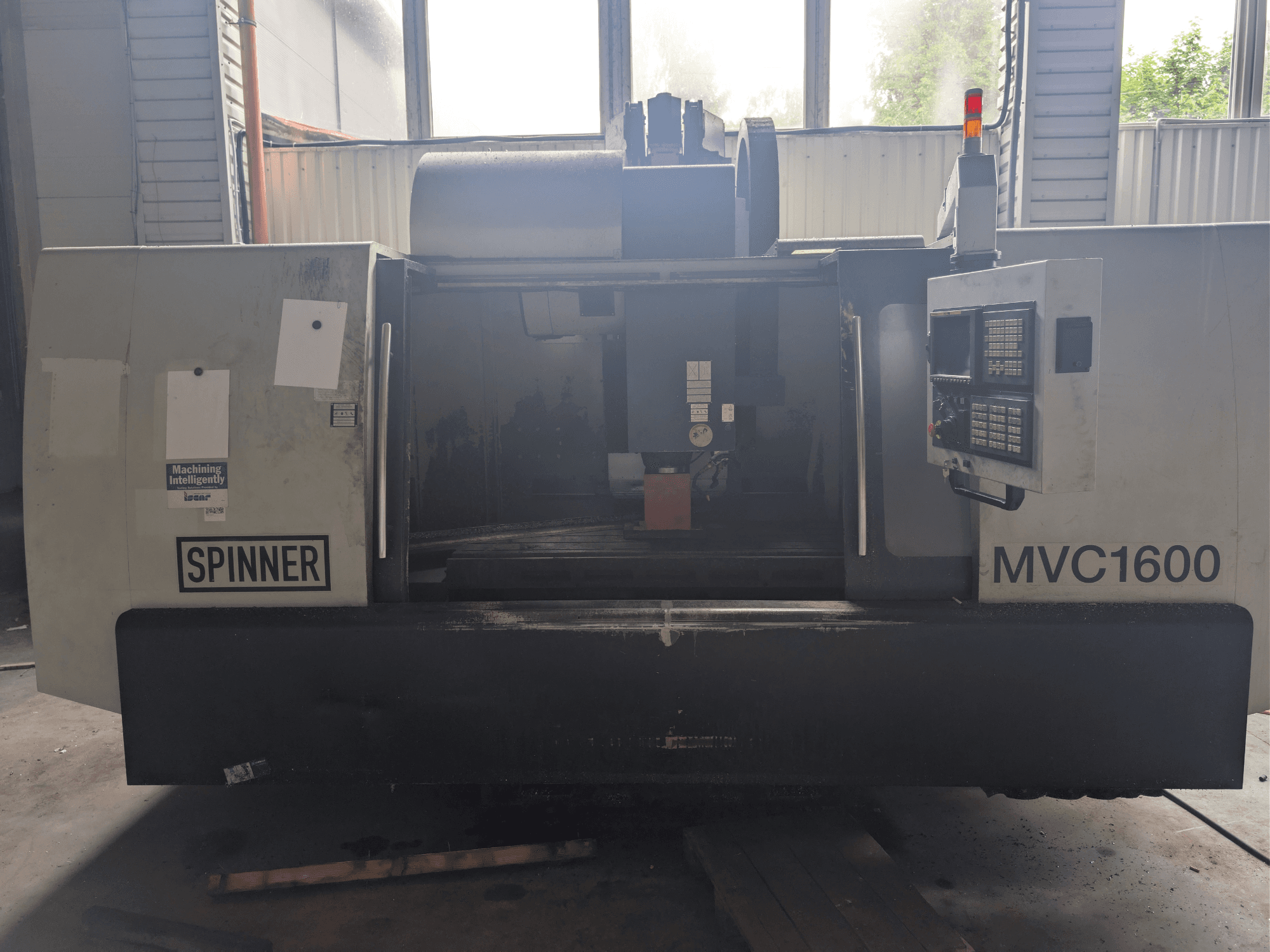

This 3-axis SPINNER MVC-1600 was manufactured in 2006. It features an impressive X-axis travel of 1,600 mm, Y-axis travel of 810 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1,800 × 810 mm and a maximum table load of 2,000 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MVC-1600 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: SPINNER
year: 2006
MODEL: MVC-1600
application type: Milling
Location: Lithuania
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - SPINNER MVC-1600

Control Unit

Control Brand: FANUC
Control Model: 21i-MB

Dimensions

Machine Height: 3100 mm
Machine Length: 4300 mm
Machine Weight: 13000 kg
Machine Width: 2500 mm
Table Load: 2000 kg

Movement

Number of Axes: 3
X-axis Travel: 1600 mm
Y-axis Travel: 810 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40
Tool Stations: 24

Additional Information

Table size: 1,800 × 810 mm
Rapid traverse (X/Y/Z): 18 / 18 / 15 m/min
Electrical supply: 3/PE ~ 400 V, 50/60 Hz
Rated current: 50 A
Machine dimensions: approx. 4.3 × 2.5 × 3.1 m
Operational status: dismantled, not under power

Additional equipment

E.A.-tronic Super 3 central lubrication unit
Habor heat pipe heat exchanger (Model HPM-35AR)
Coolant hoses/piping system installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
