KUNZMANN - BA1400DE-MIL-KUN-2017-00001

Rs. 6,888,093
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

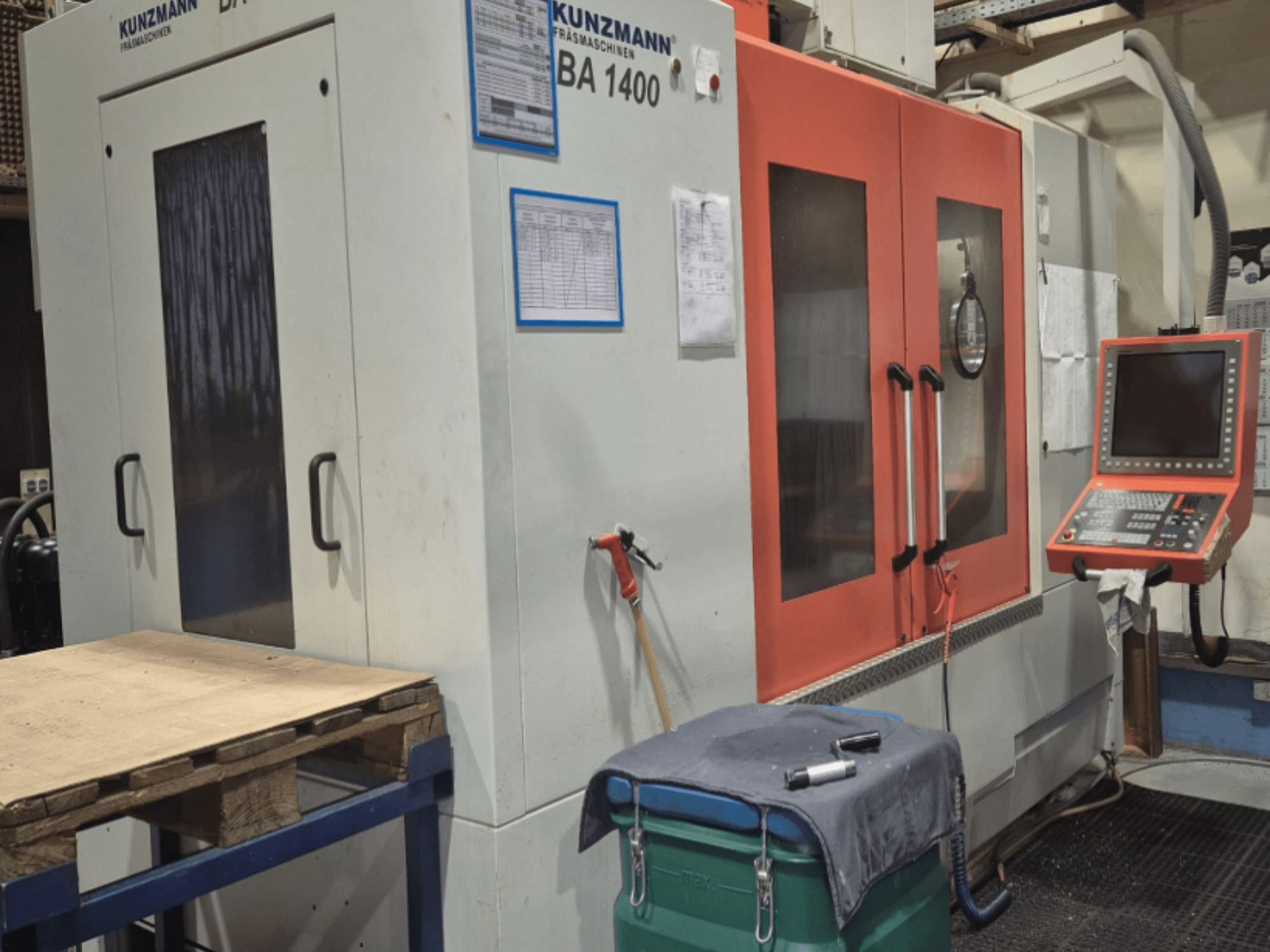

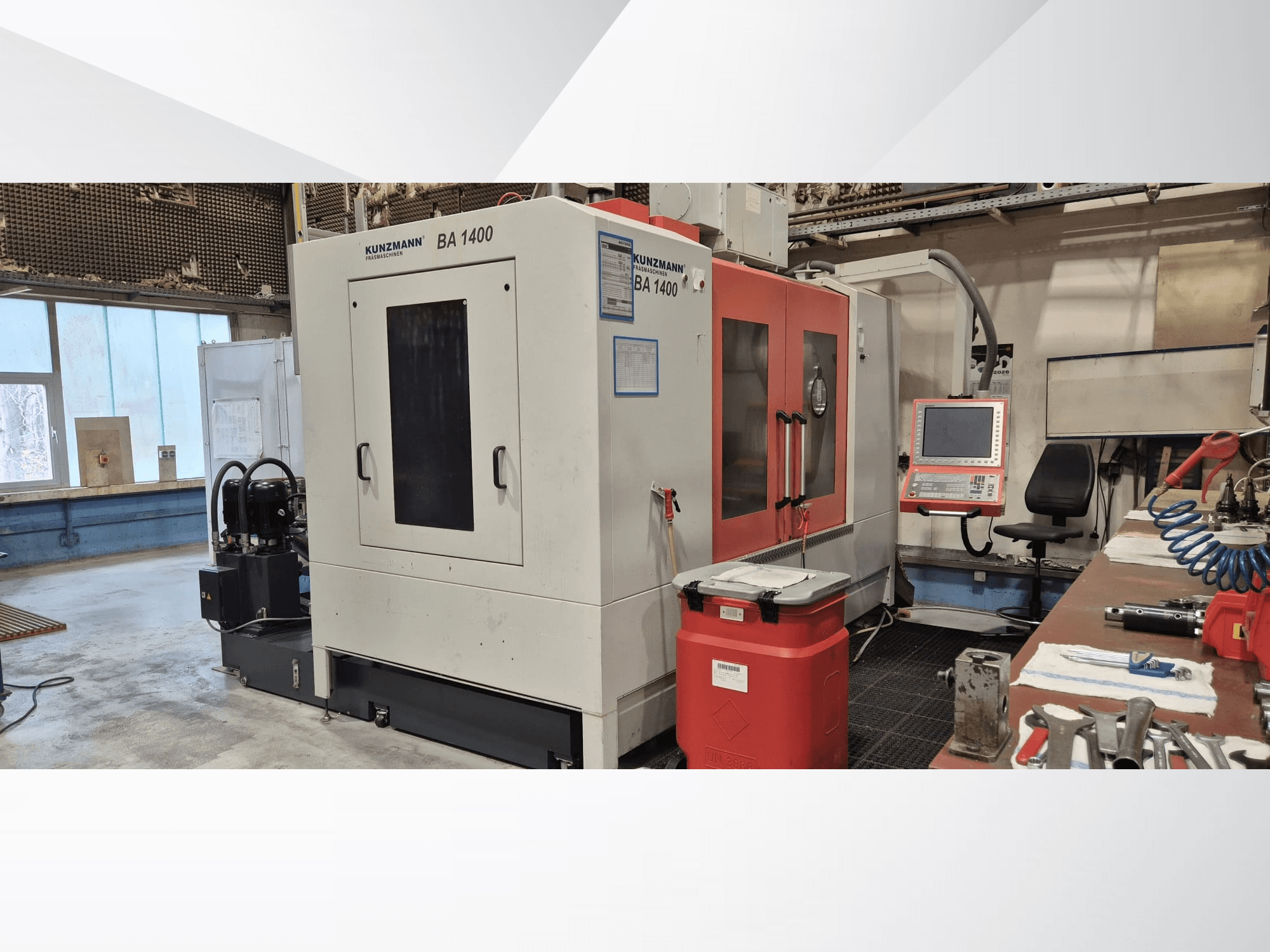

This 3-axis KUNZMANN BA1400 was manufactured in 2017. It features a powerful 28 kW motor and a Heidenhain TNC 640 control unit. The machine has a table size of 1400 x 710 mm and can handle a maximum workpiece weight of 1500 kg. If you are looking to get high-quality machining capabilities, consider the KUNZMANN BA1400 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: KUNZMANN
  • year: 2017
  • MODEL: BA1400
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - KUNZMANN BA1400

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 640

Movement

  • Number of Axes: 3
  • X-axis Travel: 1400 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 760 mm

Technical Specification

  • Max. Tool Weight: 160 kg
  • Spindle Power: 28 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 40

Additional Information

  • Control Heidenhain TNC 640

  • Standard spindle SK40 (belt-driven)

  • Spindle taper SK40

  • Speed 10,000 rpm

  • Vertical spindle stepless adjustable 20–10,000 rpm

  • Power 28 kW

  • Power 100% duty cycle 10.0 kW

  • Power 40% duty cycle 14.0 kW

  • Power at 100% duty cycle 20.0 kW

  • Power at 40% duty cycle 25.0 kW

  • Torque at milling spindle 100% duty cycle 130 Nm

  • Torque at milling spindle 40% duty cycle 190 Nm

  • Torque at milling spindle 100% duty cycle 180 Nm

  • Torque at milling spindle 40% duty cycle 240 Nm

  • MAS-BT40 tool holder with pull stud DIN 69872 A

  • Tool changer 40 positions (chain magazine)

  • Max tool weight 160 kg

  • Tool change time 3 sec

  • Chip-to-chip time 8 sec

  • Table dimensions 1400 × 710 mm

  • Max workpiece weight 1500 kg

  • X-axis travel 1400 mm

  • Y-axis travel 700 mm

  • Z-axis travel 760 mm

  • Working area X-axis 1400 mm

  • Working area Y-axis 700 mm

  • Working area Z-axis 750 mm

  • Spindle to table distance 180–930 mm

  • Spindle center to column 760 mm

  • Feed rate X/Y/Z 10 m/min

  • Rapid traverse X/Y/Z 20 m/minBrushless digital servo motors on all axes

  • Chip conveyor with coolant tak (LU version)

  • Coolant through spindle up to 40 bar

  • Coolant flow rate 25 l/min at 40 bar

  • Automatic coolant fine filtration 40 µm

  • Rotating viewing window in front door

  • Oil mist extraction system with multi-stage filtration (H13 filter)

  • Electronic handwheel HR 510 FS with integrated buttons and emergency stop

  • Touch probe TS 460 with radio transmission

  • Automatic tool measurement Heidenhain TT 46

  • Measuring accuracy ≤ 15 µm

  • Max probe deflection 5 mm

  • Probing speed max 5 m/min

  • DXF converter software for 2D contour transfer

  • PC software teleservice for remote diagnostics and maintenance

  • Operating voltage 400 V 50 Hz

  • Power consumption 35 kVA

  • Control voltage 24 V

  • Machine weight approx. 8.5 t

  • Machine weight approx. 12000 kg

  • Machine dimensions approx. 4.20 × 2.45 × 3.09 m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
