Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Hurco - VMX 42iDE-MIL-HUR-2018-00004
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Hurco VMX 42i For Sale | gindumac.com

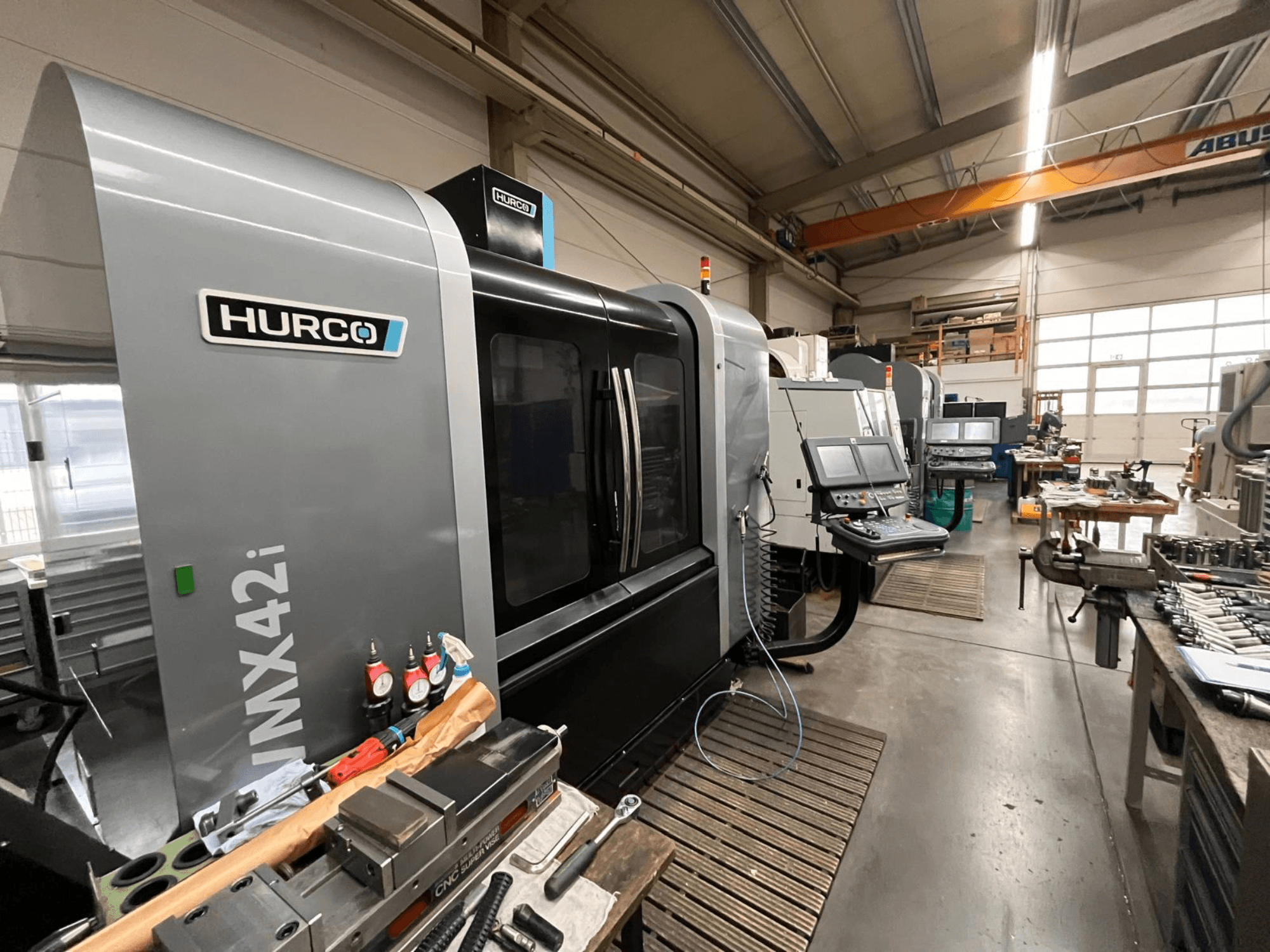

This 3-axis Hurco VMX 42i was manufactured in 2018 and features X, Y, and Z travels of 1067 mm, 610 mm, and 610 mm respectively. It boasts a maximum spindle speed of 12000 rpm and a machine mass of 6450 KG. If you are looking to get high-quality milling capabilities consider the Hurco VMX 42i machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2018
- MODEL: VMX 42i
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HURCO
Technical Information - Hurco VMX 42i
Control Unit
- Control Brand: HURCO
- Control Model: MAX5
Dimensions
- Machine Weight: 6850 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1067 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Tool magazine capacity: 30 tools
Spindle hours: approx. 7,800 h
Machine weight: approx. 6,850 kg
Machine mass: 6,450 kg
Total power requirement: approx. 28 kVA
Internal coolant system
Additional equipment
Chip conveyor
Software Features
Adaptipath: Trochoidal milling for higher removal rates, controlled engagement, and residual material detection
Dialog / NC Mix: Allows mixing of Dialog and NC programs
NCPP (Industry Standard Software):
ISNC extended NC mode for FANUC compatibility (FANUC 0)
Parameter and MACRO programming
Subprogram technology for NC mode
Ulti-Motion:
Dynamic Lookahead (up to 10,000 blocks)
Improved surface quality via "Motion Control Technology"
Reduced cycle times and machine wear
Standard Features:
Simulation graphics
Pocket milling with islands
Synchronous tapping (without compensation chuck)
Hardware Components & Accessories
Cooling & Chips:
High-pressure coolant system (Through-Spindle Coolant) at 20 bar (Emulsion type)
Spindle cooler
Standard coolant system with spray gun
Chip conveyor and flushing system for chip removal
Chip splash guard cabin
Tooling: Integrated hydraulic tool clamping system
Workspace:
LED machine light
Signal light for operating status
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
