Hurco - BMC30APDE-MIL-HUR-1994-00001

Rs. 933,432
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

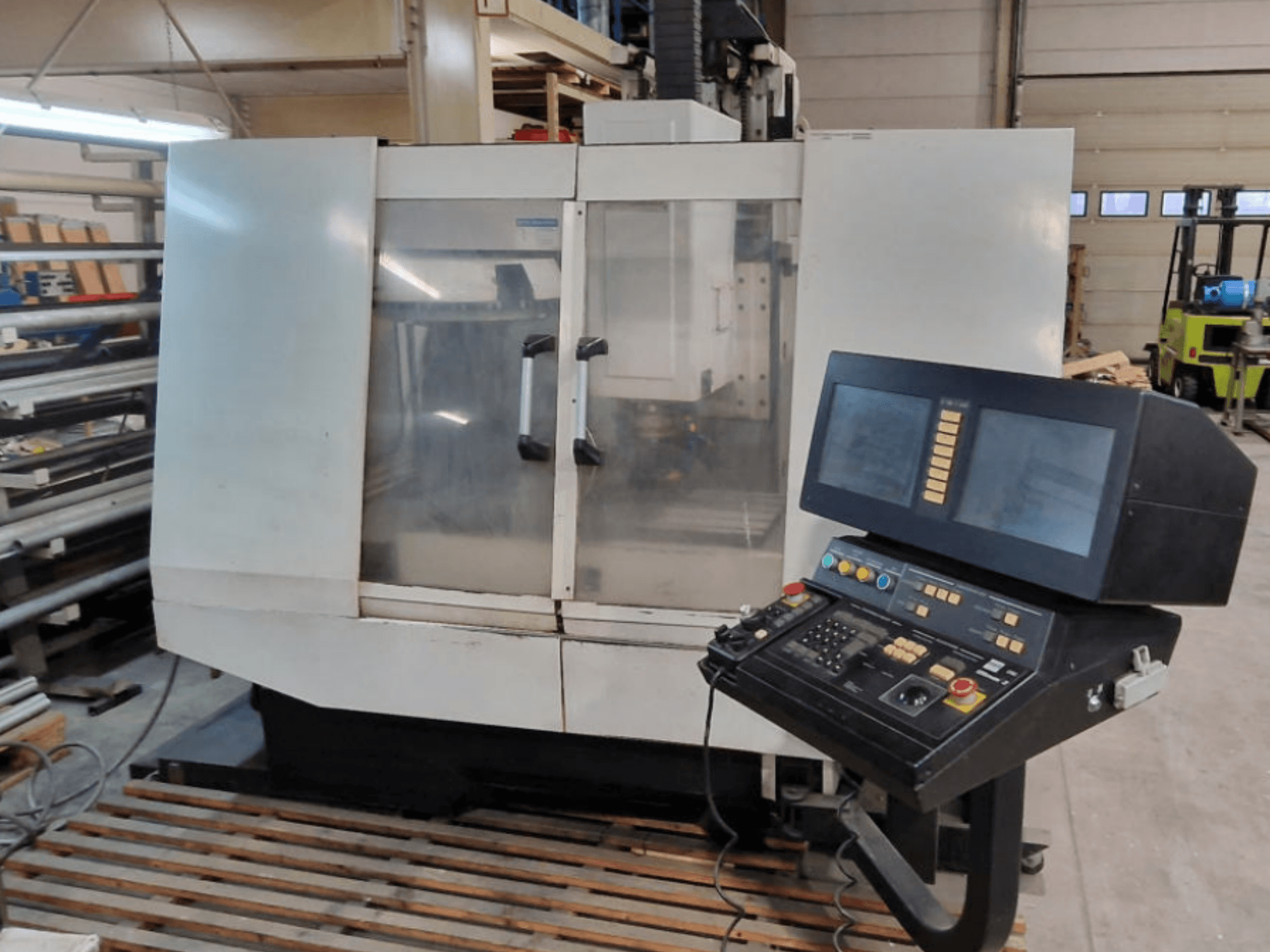

This 3-axis Hurco BMC30AP was manufactured in 1994. It features X, Y, and Z travels of 760 mm, 460 mm, and 500 mm, respectively, with a robust table size of 1000 x 450 mm and a maximum table load capacity of 500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco BMC30AP vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Hurco
  • year: 1994
  • MODEL: BMC30AP
  • production hours: 37780
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HURCO

Technical Information - Hurco BMC30AP

Control Unit

  • Control Brand: HURCO
  • Control Model: Ultimax 3

Dimensions

  • Machine Weight: 4600 kg
  • Table Length: 1000 mm
  • Table Load: 500 kg
  • Table Width: 450 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 760 mm
  • Y-axis Travel: 460 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Power: 7.5 kW
  • Spindle Speed: 6000 RPM
  • Taper Size: ISO 40
  • Through-spindle Coolant: Yes
  • Tool Stations: 24

Additional Information

- Display: TFT

- Spindle Speed Range: 30 - 6,000 RPM

- Gear / Speed Adjustment: Two-stage gearbox; infinitely variable per range

- Tool Changer Type: Umbrella type, automatic

- Coolant Supply: Flood cooling

- Chip Conveyor: Available

- DXF Option: Available on control and floppy disk

- Computer Connection: 9-pin; RS-232 (Port 1)

- Installed Software Version / Hardware: Ultimax 3 V1.53

- Operating Voltages: 440 / 415 / 380 / 220 V, 3-phase

- Mains Frequency / Apparent Power: 50-60 Hz / 20 kVA

- Rapid Traverse Rate: 15 m/min

- Compressed Air Requirement / Operating Pressure: 6 bar

- Included Documentation:

- Parts Listings & Wiring Diagrams - BMC 30 (1991, English)

- Machine Operation and Maintenance (11/1993 Rev. B, English)

- Options Manual Ultimax 4 (2004 Rev. A, German)

- 2x BMC Operator Manual: BMC 30 with Ultimax 3 (06/1995 Rev. C, German)

- Included Software & Backup Floppy Disks:

- Optikey Utility Disk - Security Modifier Mill V1.52-V1.59

- Optikey Utility Disk - Software Option DXF

- Ultimax 3 Version 1.53 - Disk 1 and Disk 2

- Ultimax 3 Machine Configuration

- Backup Machine Config

- Condition & Repair Notes: Machine needs to be rebooted via floppy disks because the buffer battery was depleted. One circuit board was repaired by the machine lab (new capacitors and a new Intel processor installed).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
