Hurco - VMX 24iDE-MIL-HUR-2015-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Hurco VMX 24i For Sale | gindumac.com

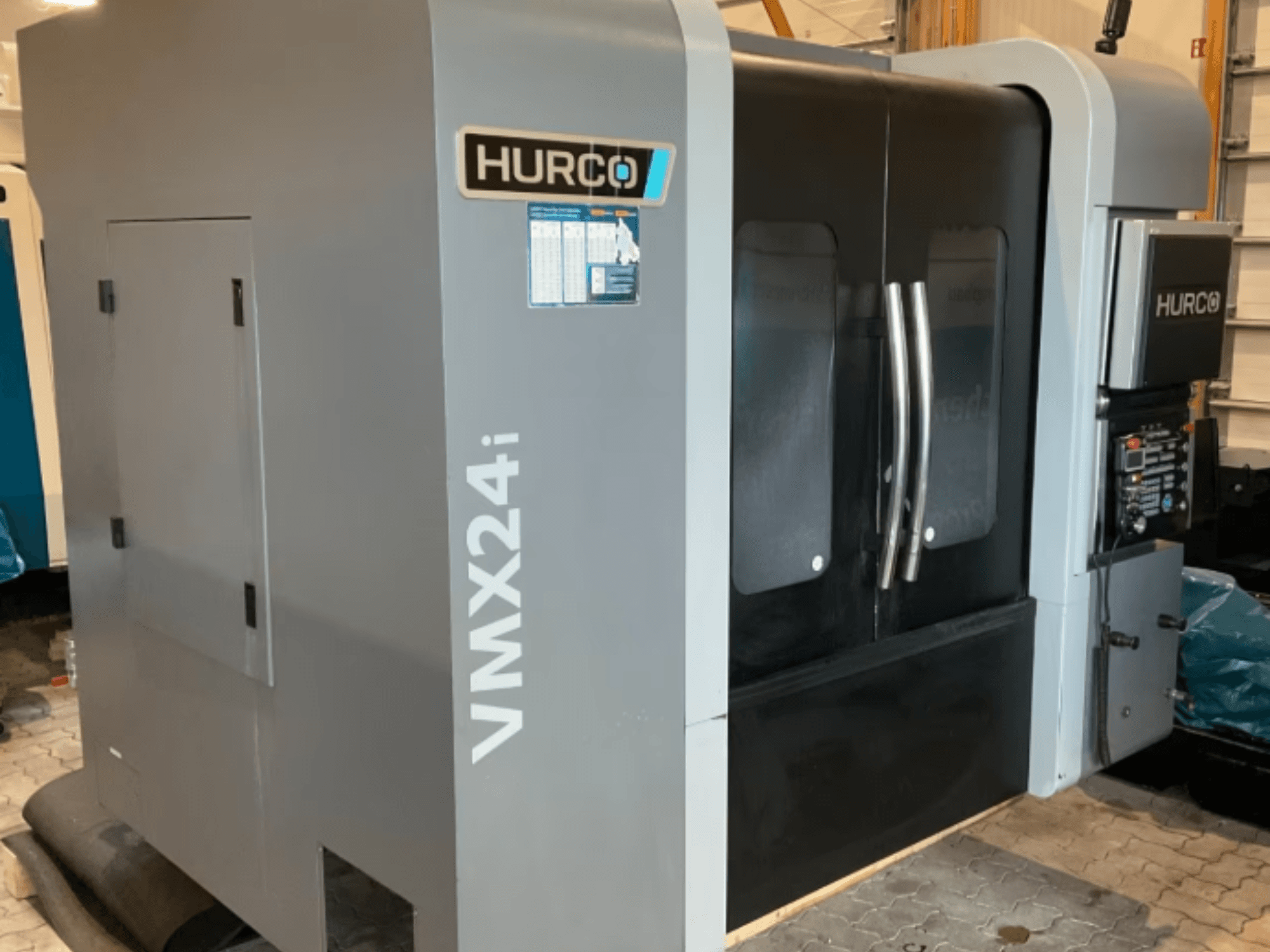

This 3-axis Hurco VMX 24i was manufactured in 2015. It features an X-axis travel of 610 mm, Y-axis travel of 508 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 760 x 508 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 24i vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Hurco
- year: 2015
- MODEL: VMX 24i
- production hours: 9000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HURCO
Technical Information - Hurco VMX 24i
Control Unit
- Control Brand: HURCO
- Control Model: WinMax / MAX5
Dimensions
- Table Length: 760 mm
- Table Load: 1500 kg
- Table Width: 508 mm
Movement
- Number of Axes: 3
- X-axis Travel: 610 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 12000 RPM
- Tool Stations: 30
Additional Information
- Tool Holder: SK40 / CAT40
- Max. Torque: 95 Nm
- Max. Tool Diameter: 80 mm
- Max. Tool Length: 300 mm
- Max. Tool Weight: 7 kg
- Rapid Traverse X/Y: 38 m/min
- Rapid Traverse Z: 32 m/min
- Additional Equipment: Automatic centralized lubrication, Chip flushing system, Scraper belt conveyor, Coolant unit, Electronic handwheel, Network connection
- Included in Delivery: CNC milling machine Hurco VMX 24i
- Excluded Items: Vise, tools, clamping devices, other accessories
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
