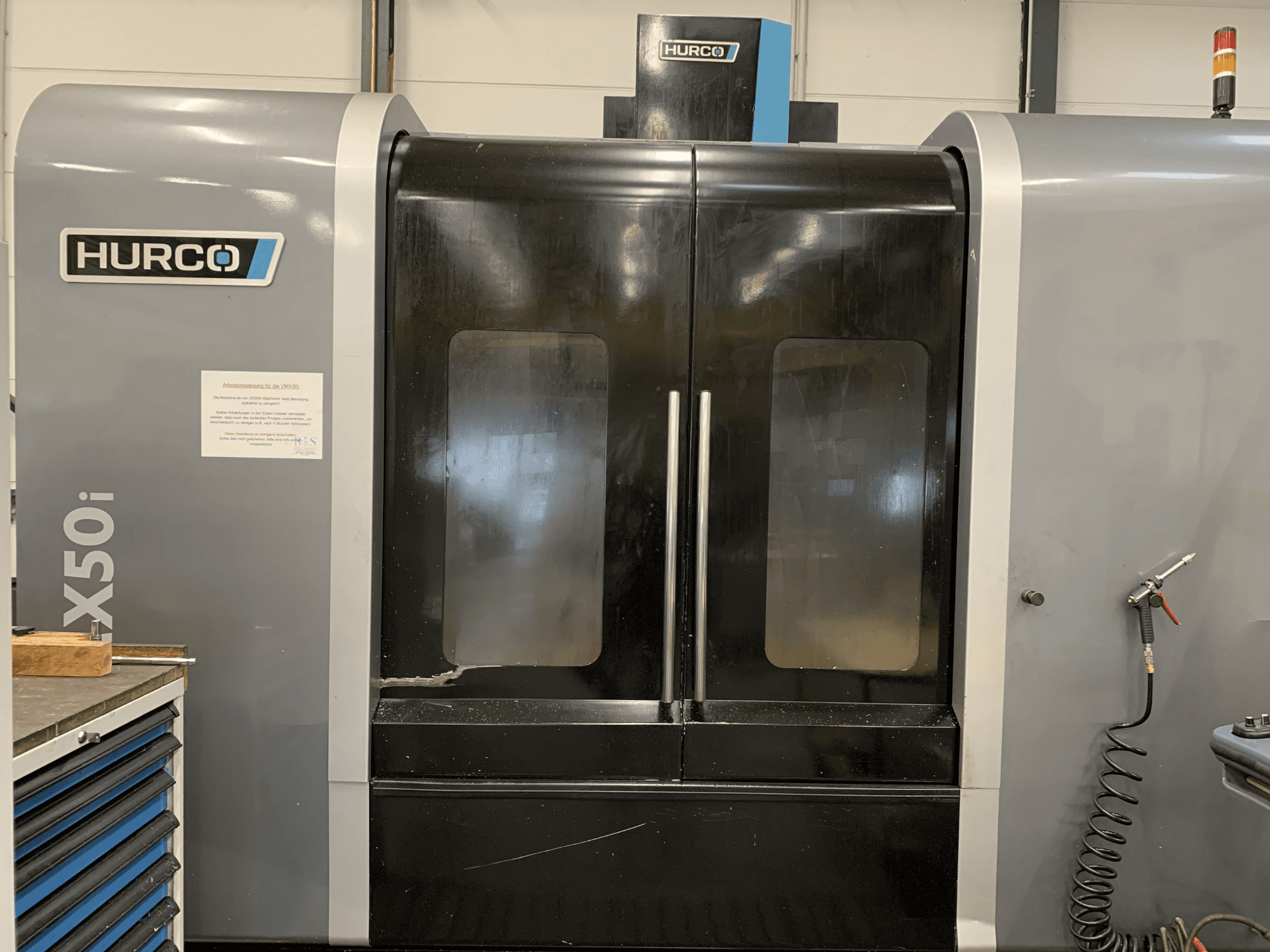

This 3-axis Hurco VMX 50i was manufactured in 2014, featuring a robust table size of 59 x 26 inches and a maximum spindle speed of 12,000 rpm. It supports a tool capacity of 40 with a rapid tool-to-tool ATC time of 2 seconds. Ideal for precise, heavy-duty machining with a maximum table load of 4,410 lb. If you are looking to get high-quality milling capabilities consider the Hurco VMX 50i machine we have for sale. Contact us for more information.
Overview
- brand: Hurco
- year: 2014
- MODEL: VMX 50i
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Hurco VMX 50i
Dimensions
- Machine Depth: 5055 mm
- Machine Height: 3240 mm
- Machine Weight: 8880 kg
Additional Information
Table Size: 1500 x 660 mm
T-Slots: 6 x 18 mm
Maximum Weight on Table: 2000 kg
Spindle Nose to Table: 101 mm
Maximum Spindle Speed: 12000 rpm
Spindle Power (15 min/Continuous): 15 kW / 11 kW @ 720 rpm
Spindle Torque (15 min/Continuous): 198.9 Nm / 116.7 Nm @ 720 rpm
Tool Type: CAT 40 / Big Plus®
Tool Capacity: 40
Maximum Tool Diameter: 76 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 7 kg
Tool-to-Tool ATC Time: 2 sec
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
