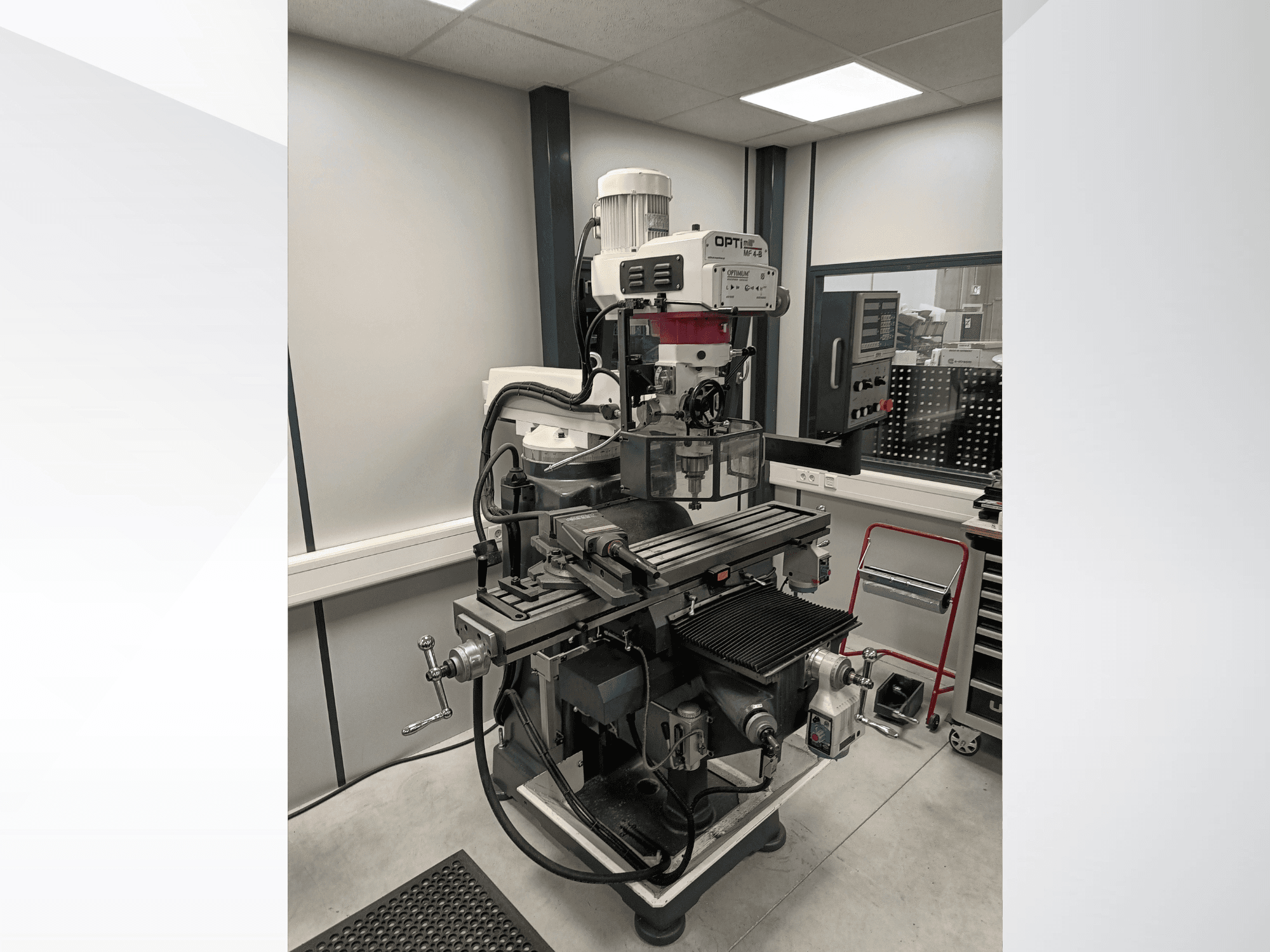

Optimum - MF 4-BDE-MIL-OPT-2018-00001

- Description: 3-axis manual conventional milling and drilling machine with sleeve feed, tiltable milling head, rotatable spindle head carrier and position indicator

- Face Cutter Capacity: max. Ø 76 mm

- End Mill Capacity: max. Ø 25 mm

- Drilling Capacity (Steel S235JR): Ø 24 mm

- Continuous Drilling Capacity (Steel S235JR): Ø 20 mm

- Throat Depth: 0 - 420 mm

- Quill / Sleeve Stroke: 127 mm

- Spindle Taper: ISO 40 - DIN 2080

- Spindle Speed: 60 - 4200 rpm (min-1)

- Gear Steps: 2 / continuously variable in steps

- Automatic Quill Feeds: 0.04 | 0.08 | 0.15 mm/rev

- Motor Power: 2.2 kW | 400 V - 50 Hz

- Milling Head Tilt (Front / Back): +/- 45 degrees

- Milling Head Tilt (Left / Right): +/- 90 degrees (horizontal)

- Ram Overarm Travel: 470 mm

- Distance Spindle to Table: max. 405 mm

- Table T-Slot Size / Pitch / Qty: 16 mm / 63 mm / 3

- X-Axis Travel (Manual / Power Feed): 820 mm / 740 mm

- Y-Axis Table Travel (Manual / Power Feed): 410 mm / 330 mm

- Z-Axis Knee Travel (Manual / Power Feed): 400 mm / 320 mm

- Main Motor Power: 2.2 kW (400 V / 3 Ph / 50 Hz)

- Coolant Pump Power: 90 W

- Included Accessories: Coolant system, chip tray, and operating tools
