DMG - DMU 50DE-MIL-DMG-2018-00006

Rs. 15,417,294
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG DMU 50 was manufactured in 2018. It features a working table size of Ø 630 x 500 mm and a maximum table load of 300 kg. The machine is equipped with a high-speed spindle capable of 15,000 rpm and a tool magazine with 30 positions. If you are looking to get high-quality machining capabilities, consider the DMG DMU 50 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: DMG
  • year: 2018
  • MODEL: DMU 50
  • production hours: 18600
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: SIEMENS

Technical Information - DMG DMU 50

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D sl

Dimensions

  • Machine Weight: 7420 kg
  • Table Length: 500 mm
  • Table Load: 300 kg
  • Table Width: 630 mm

Movement

  • Number of Axes: 5
  • X-axis Travel: 650 mm
  • Y-axis Travel: 520 mm
  • Z-axis Travel: 475 mm

Technical Specification

  • Spindle Power: 21 kW
  • Spindle Speed: 15000 RPM
  • Taper Size: SK 40
  • Tool Stations: 30

Additional Information

Control System: CELOS with Siemens 840D sl Operate (21.5-inch ERGOline Multi-Touch display)

Machining Type: 5-axis simultaneous machining

Working Table / NC Swivel Rotary Table: Ø 630 x 500 mm

Swivel / Rotary Axes: B: -35° to +110°, C: 360°

Rapid Traverse X / Y / Z: 42 m/min

Main Spindle: speedMASTER 20 - 15,000 rpm (SK40 / CAT40 taper)

Spindle Power: 21 kW (40% duty cycle) / 16 kW (100% duty cycle)

Tool Magazine: 30 positions (SK40)

Operating Hours (Control/On-Hours): 33,089 h

Spindle Hours: 18,597 h

Internal Coolant Supply (IKZ): 40 bar / 600 l with paper band filter and cabin root

Chip Conveyor: Scraper belt type

Optional Equipment:

Renishaw PP60 optical infrared workpiece probe (OMP60)

Heidenhain TT160 tool measurement / length, diameter, and breakage detection

3D quickSET (kinematics check and correction)

ATC (Application Tuning Cycle)

Electronic handwheel

Manual double switch filter (25 µm)

Air blast through spindle center (selectable via M-function)

Rinsing gun for chip flushing

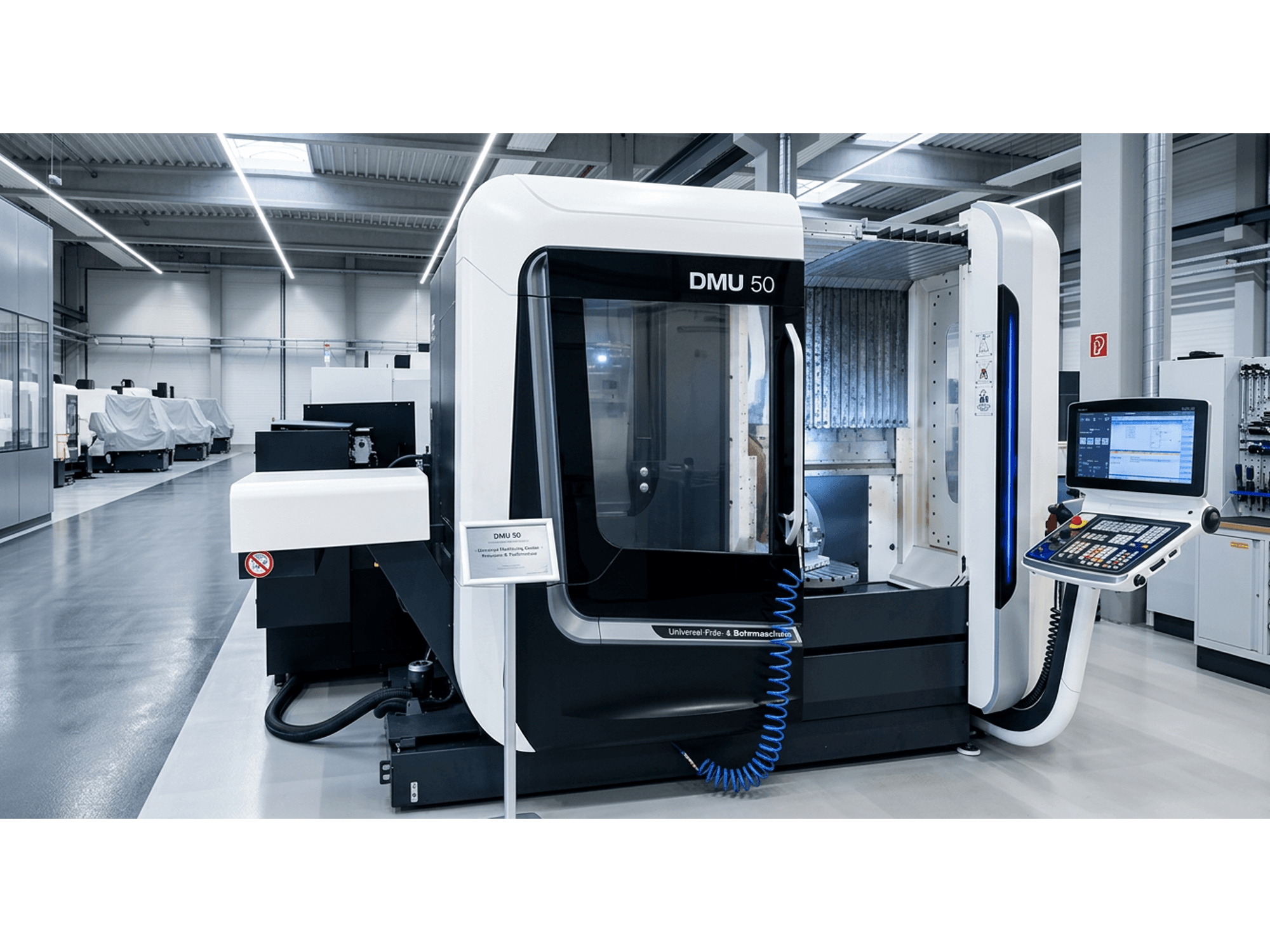

The image was generated by AI.

Images available on request

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
