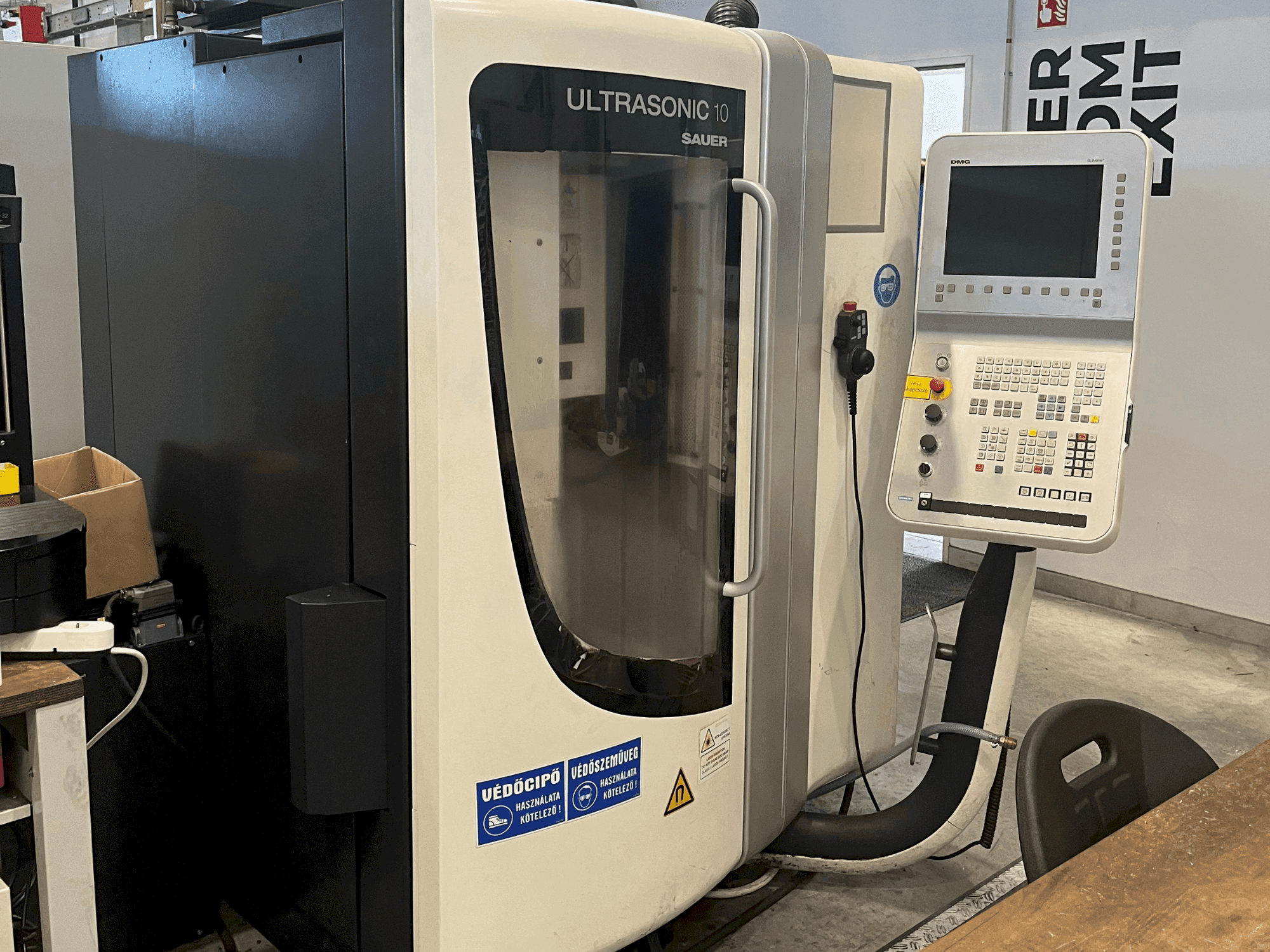

This 5-axis DMG ULTRASONIC 10 was manufactured in 2011. It features a Siemens Sinumeric 840D control, a spindle with 40,000 rpm max speed, and a tool magazine with 60 slots. The machine offers a compact footprint and includes options like a DMG PP-400 Infrared probe and RS NC-4 tool measurement. If you are looking to get high-quality milling capabilities consider the DMG ULTRASONIC 10 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: DMG
- year: 2011
- MODEL: ULTRASONIC 10
- production hours: 937
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG ULTRASONIC 10
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumeric 840D
Dimensions
- Machine Depth: 775 mm
- Machine Height: 2253 mm
- Machine Weight: 1800 kg
- Table Load: 10 kg
Movement
- Number of Axes: 5
- X-axis Travel: 120 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 200 mm
Technical Specification
- Spindle Speed: 40000 RPM
Additional Information
Additional equipment
- Workpiece Measurement: DMG PP-400 Infrared probe
- Tool Measurement: RS NC-4
- Coolant Conditioning Equipment: KM 10
Machine Benefits
Technical Machine Benefits
- Surface area: less than 2 m²
- Required space (lxwxh): 4100x3700x2300 mm
- Machine on time: 2773 hours
- A axis: -10° to 120°
- C axis: 360°
- Feedrate – feed speed range: up to 10000 mm/min
- Repeatability in x / y / z: p8 μm
Extra Information
Workpiece NC Table with Clamping Surface: ø 190 mm Max.Speed of Rotary Axes (A / C): 100 rpm / 150 rpm Positioning Accuracy (A / C Axis): ± 5 Tools Tool Magazine: 60 items, chain magazine Chip-to-Chip Replacement Time: 15 seconds Media Compressed Air Required: 6 bar Average Air Consumption: 20 m³/hour Working Voltage: 400V (N / PE) / 50A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
