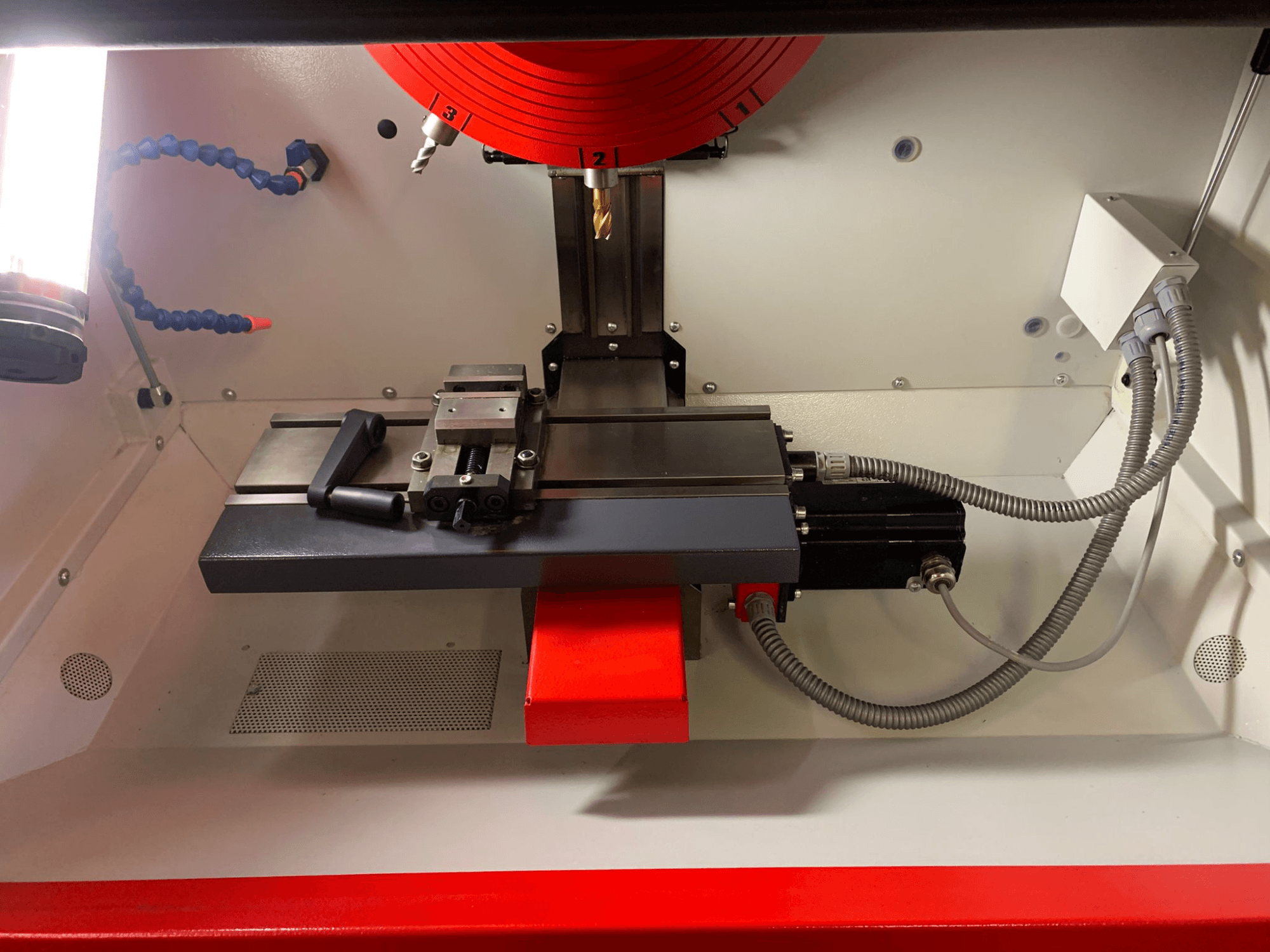

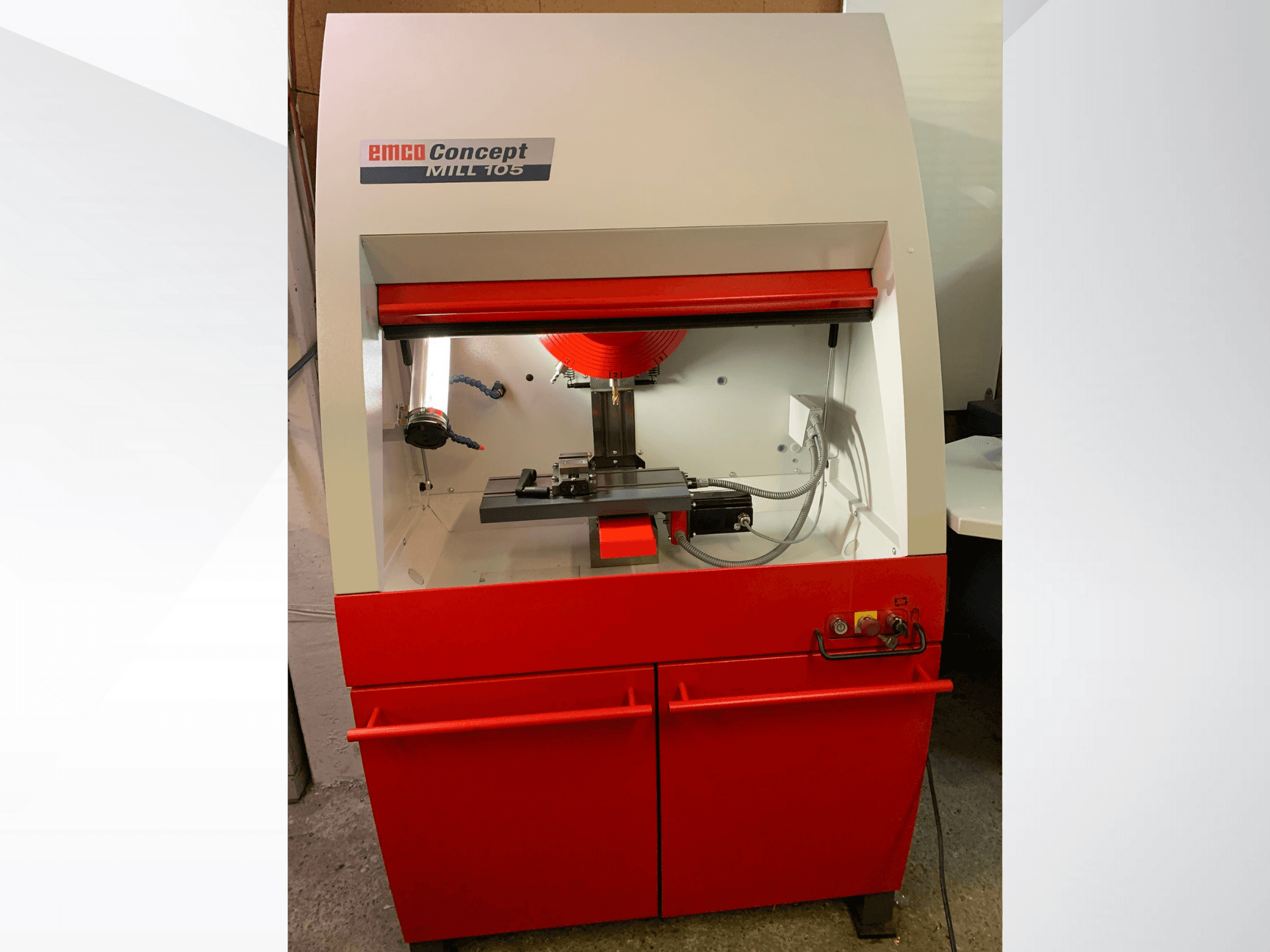

This 3s EMCO Concept Mill 105 was manufactured in 2016. It features a maximum spindle speed of 5000 rpm and a spindle motor power of 1.1 kW, providing efficient machining capabilities. The machine has a table size of 420 × 125 mm and a maximum table load of 10 kg. If you are looking to get high-quality milling capabilities, consider the EMCO Concept Mill 105 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: EMCO
- year: 2016
- MODEL: Concept Mill 105
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: EMCO
Technical Information - EMCO Concept Mill 105
Control Unit
- Control Brand: EMCO
Dimensions
- Machine Height: 1100 mm
- Machine Length: 1135 mm
- Machine Weight: 400 kg
- Table Load: 10 kg
Movement
- Number of Axes: 3
- X-axis Travel: 200 mm
- Y-axis Travel: 150 mm
- Z-axis Travel: 250 mm
Technical Specification
- Max. Tool Weight: 0.7 kg
- Spindle Power: 1.1 kW
- Spindle Speed: 5000 RPM
Additional Information
Distance spindle nose to table: 95–245 mm
Table size: 420 × 125 mm
T-slots: 2 × 11 × 90 mm
Max spindle torque: 4.2 Nm
Rapid traverse (X/Y/Z): 5 m/min
Feed rate: 0–5 m/min
Max feed force X/Y: 2000 N
Max feed force Z: 2400 N
Positioning accuracy (X/Y/Z): 0.005 mm
Repeatability: 0.005 mm
Tool stations: 10
Max tool diameter: 55 mm
Max tool length: 50 mm
Tool change time (T1–T2–T3): 9.7 / 5 / 7.5 s
Connected load: 1.4 kW
Required air pressure: 6 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
