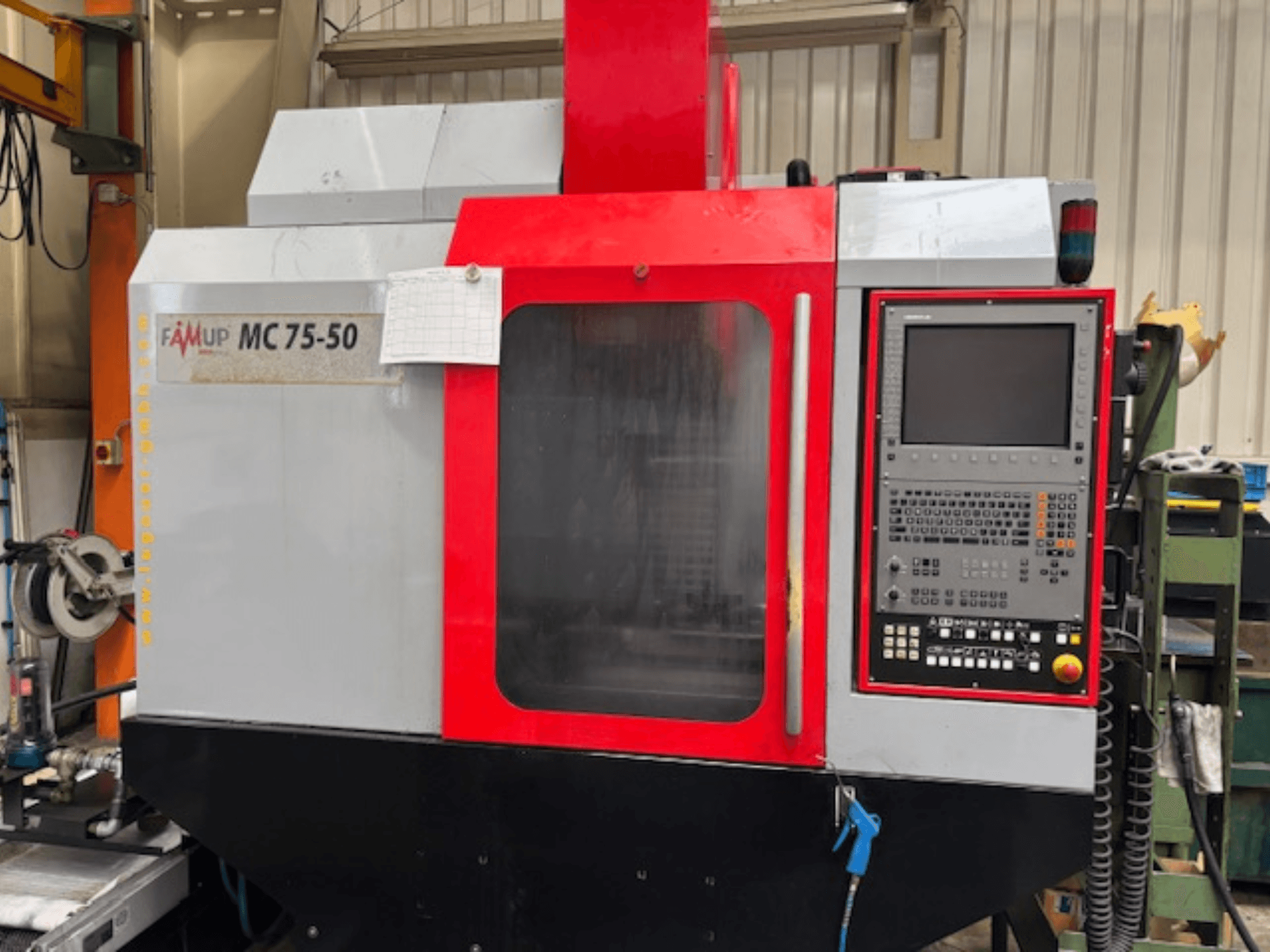

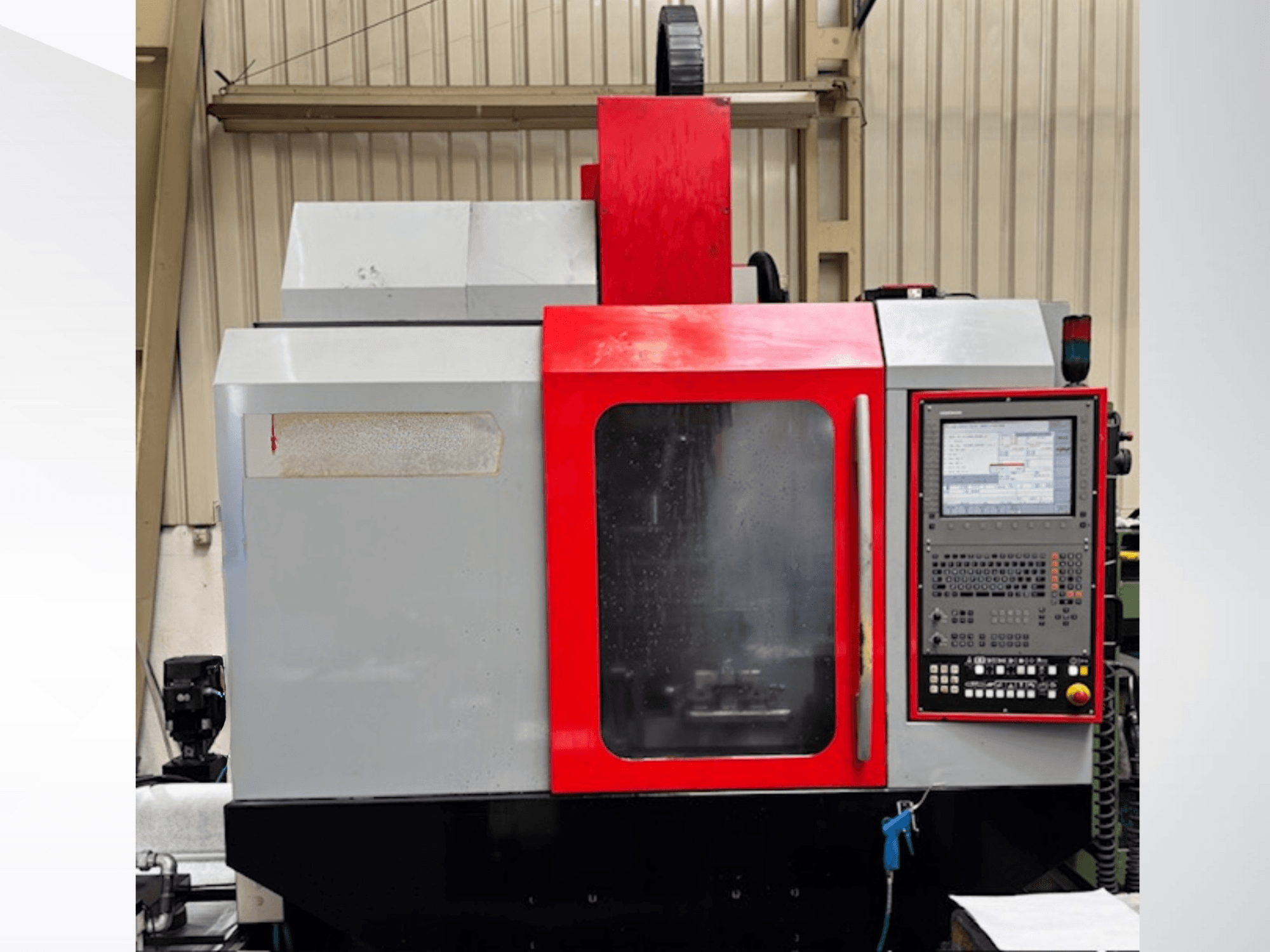

This 5-axis EMCO MC 75-50 was manufactured in 2008. It features an X-axis travel of 750 mm and Y-axis travel of 500 mm, providing versatile machining capabilities. The machine is equipped with a Heidenhain iTNC 530 control and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the EMCO MC 75-50 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: EMCO
- year: 2008
- MODEL: MC 75-50
- production hours: 9848
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - EMCO MC 75-50
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 750 mm
- Y-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Axes: 4 (standard) + optional 5th axis
Spindle: Kessler
Operating hours: Control ON 36,839 h; Machine ON 21,370 h; Program run 11,122 h; Spindle ON 9,848 h
Electrical: 400 V, 3 phases, 50 Hz, nominal current 50 A, largest load current 30 A, breaking capacity 16 kA
Protection grade: IP54
Electrical cabinet weight: 220 kg
Cooling: Coolant system with belt filter (MicroMag filtration unit visible)
Additional equipment
Chip conveyor
Wired electronic handwheel
Lehmann rotary axis with rocker and counter bearing
Zeroclamp zero-point clamping system
Retrofitted electrical cabinet cooling unit (Rittal)
Nikken rotary table
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
