POSmill - B 800DE-MIL-POS-2014-00007

Rs. 1,326,195
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

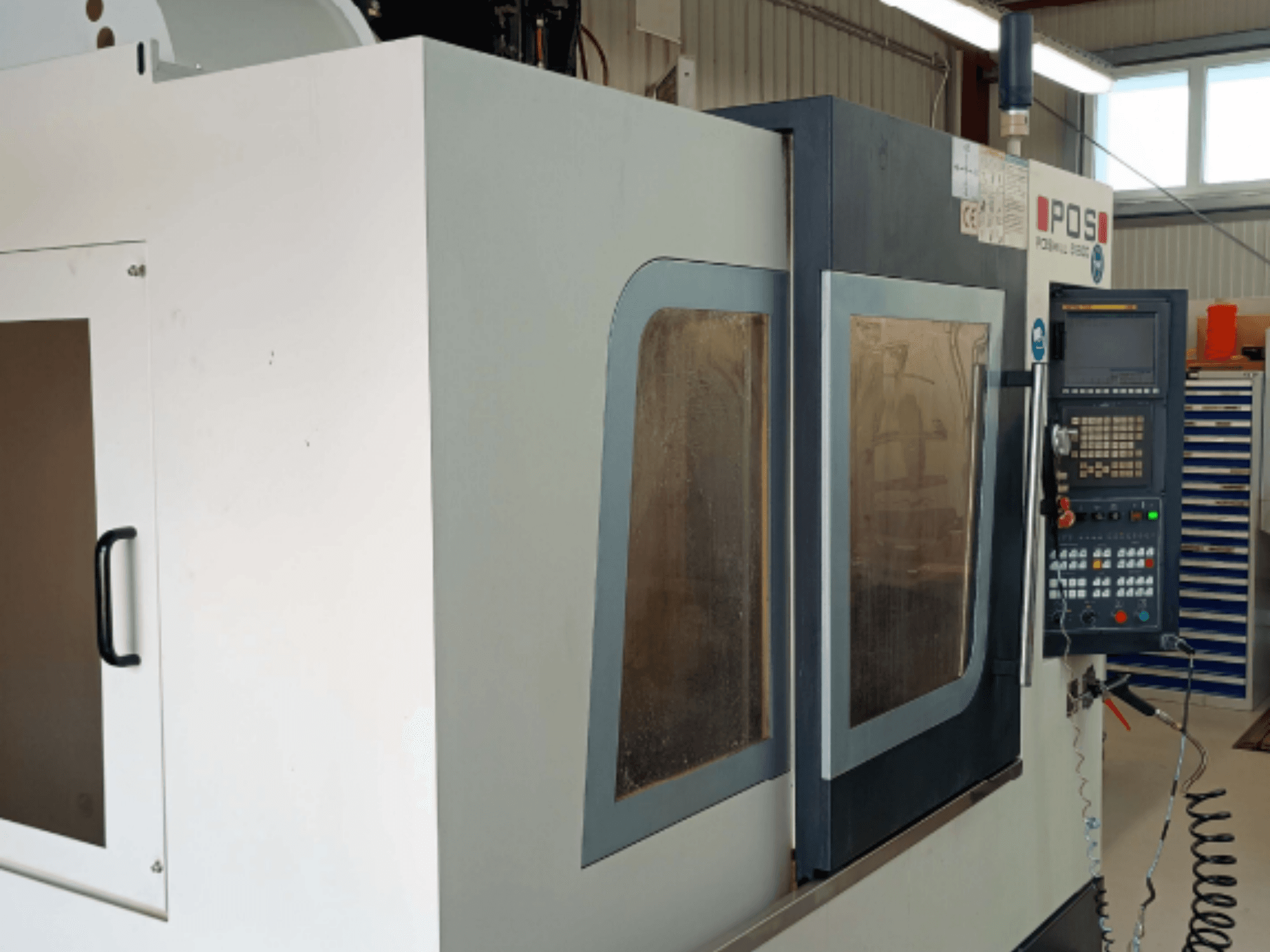

This 3-axis POSmill B 800 was manufactured in 2014. It features an X-axis travel of 800 mm, Y-axis travel of 510 mm, and Z-axis travel of 630 mm. The machine includes a table size of 950 x 510 mm and a spindle speed of 10,000 RPM. If you are looking to get high-quality machining capabilities, consider the POSmill B 800 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: POSmill
  • year: 2014
  • MODEL: B 800
  • production hours: 10712
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - POSmill B 800

Control Unit

  • Control Brand: FANUC
  • Control Model: 0i MD

Dimensions

  • Machine Weight: 6000 kg
  • Table Length: 950 mm
  • Table Width: 510 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 800 mm
  • Y-axis Travel: 510 mm
  • Z-axis Travel: 630 mm

Technical Specification

  • Spindle Speed: 10000 RPM
  • Taper Size: ISO 40

Additional Information

- Control System: Fanuc 0i MD (Hartrol-Fanuc AI100 display interface)

- Storage Capacity: 2+2 GB

- Tool Changer: 24-fold ISO 40

- Internal Coolant Supply (CTS): 20 bar with cartridge filter

- Apparent Power: 25 kVA

- Fuse Protection: 35 A

- Voltage / Frequency: 400 V / 50 Hz (3-phase)

- Power On Hours: 21,699 H

- Run Time Hours: 10,712 H

- Total Parts Count: 47,887

- Standard Equipment: Active air-air control cabinet cooler, Ethernet network connection, regulated spindle cooler, opening left/right side windows, polycarbonate protective enclosure, external spiral chip conveyor, coolant head pump (M-functions), chip flushing pump & device, water gun, air gun, coolant at spindle, operating status light, electromechanical oil coolant separator, mobile electronic handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
