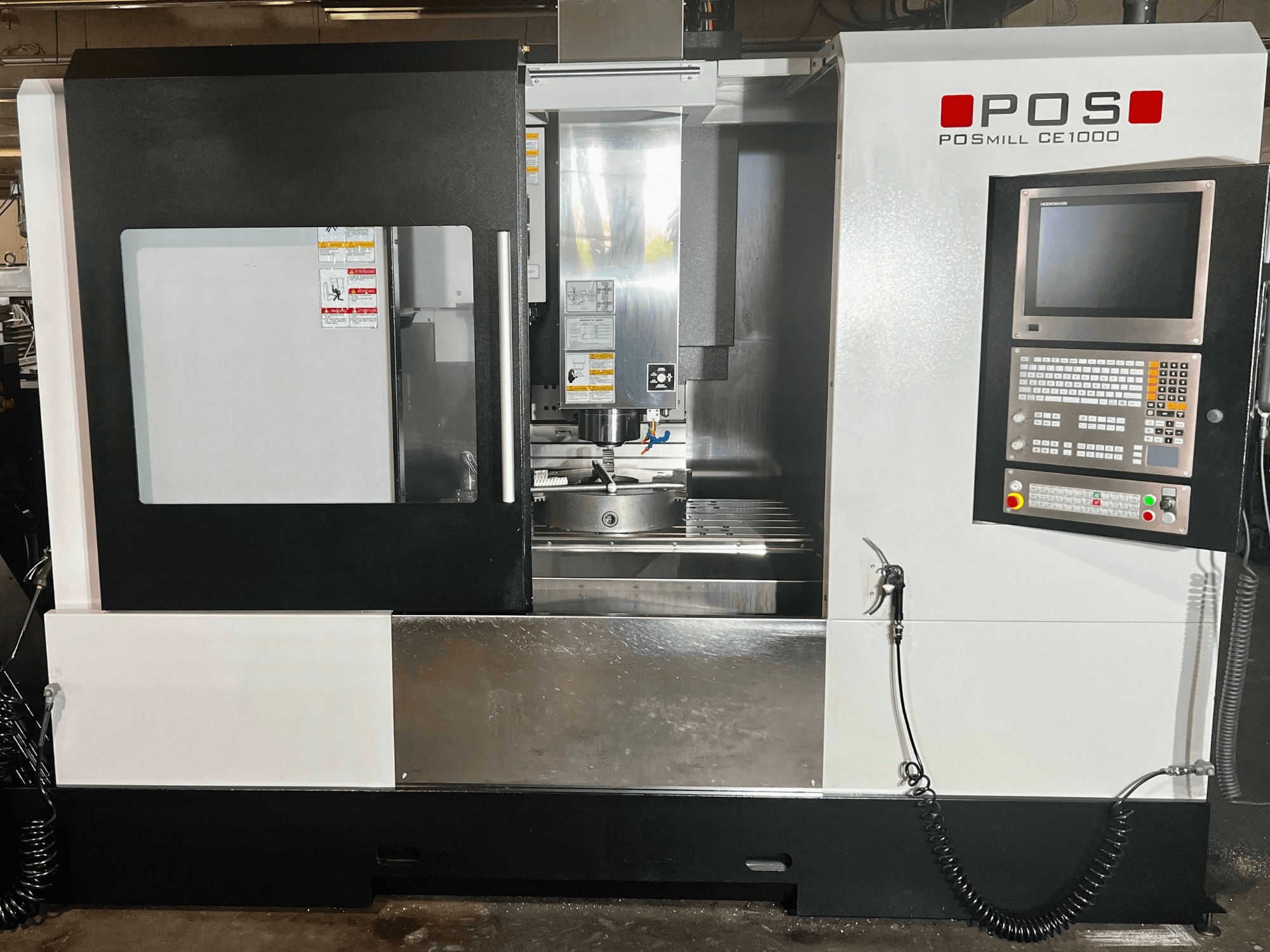

This 3-axis POSmill CE1000 was manufactured in 2023. It features an X-axis travel of 1,060 mm, Y-axis travel of 600 mm, and Z-axis travel of 600 mm. The machine is equipped with a Heidenhain TNC 640 control unit and has a maximum spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the POSmill CE1000 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: POSmill
- year: 2023
- MODEL: CE1000
- production hours: 533
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill CE1000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 640
Dimensions
- Machine Weight: 7800 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1060 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
- Through-spindle Coolant: Yes
Additional Information
- Coolant Supply Through Spindle / High Pressure: 20 bar
- Rated Power: 30 kVA
- Voltage: 400 V (3-Phase, 50 Hz)
- Full Load Current: 52 A
- Max. Current Load: 250 A
- Short-Circuit Resistance: 25 kA
- Spindle Hours: 533 h
- Power-on Hours Machine / Control: 2,410 h / 2,436 h
- Equipment: Documentation/Manual, chip conveyor, external high-pressure coolant unit/tank with filtration, pneumatic maintenance unit, electronic handwheel
- Condition: Very good, fully functional; checked in late 2025 with no defects found
- Usage History: Exclusively soft-annealed tool steels (no hard or dry machining)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
