Z-YANG - V7LDE-MIL-ZYA-2021-00001

Rs. 8,569,728
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

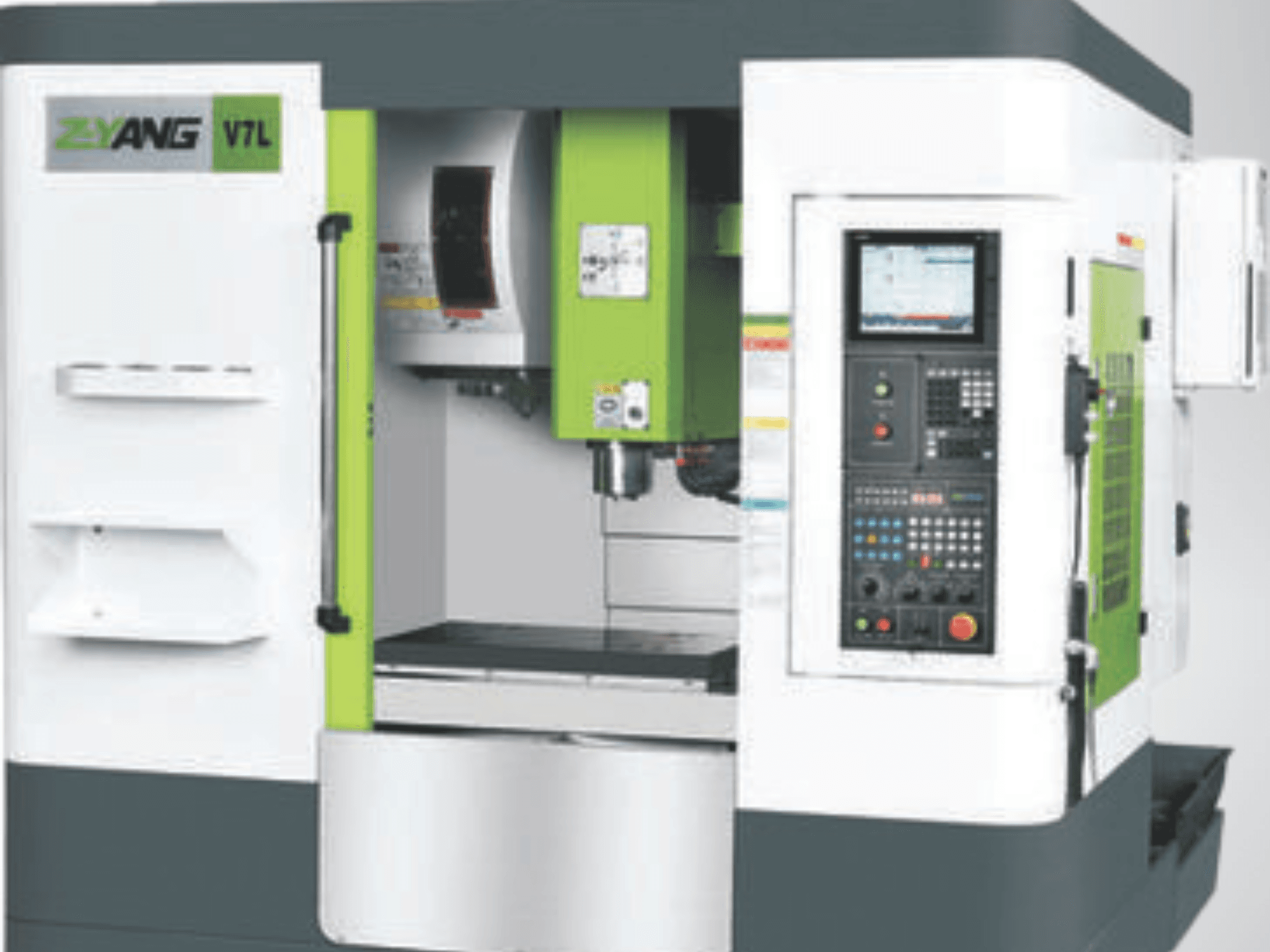

This 4-axis Z-YANG V7L was manufactured in 2021. It features an X-axis travel of 750 mm, Y-axis travel of 430 mm, and Z-axis travel of 530 mm. The machine is equipped with a FANUC Oi MF5 control system, a powerful 11 kW spindle motor, and an automatic tool changer with 24 tools. If you are looking to get high-quality metalworking capabilities, consider the Z-YANG V7L vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Z-YANG
  • year: 2021
  • MODEL: V7L
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - Z-YANG V7L

Control Unit

  • Control Brand: FANUC
  • Control Model: Oi MF5

Dimensions

  • Machine Height: 2850 mm
  • Machine Length: 2400 mm
  • Machine Weight: 5000 kg
  • Machine Width: 2600 mm
  • Table Length: 750 mm
  • Table Load: 400 kg
  • Table Width: 420 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 750 mm
  • Y-axis Travel: 430 mm
  • Z-axis Travel: 530 mm

Technical Specification

  • Spindle Power: 11 kW
  • Spindle Speed: 11000 RPM
  • Taper Size: BT 40
  • Tool Stations: 24

Additional Information

  • Automatic Tool Changer: 24 tools

  • Rapid Traverse: 48 m/min

  • Feed Rate: up to 15 m/min

Additional equipment

  • Chip conveyor (included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
