SMEC SL 3500XLY

Photo Gallery

SMEC - SL 3500XLYIT-TUR-SME-2018-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SMEC SL 3500XLY - Lathe For sale | gindumac.com

Show in original language

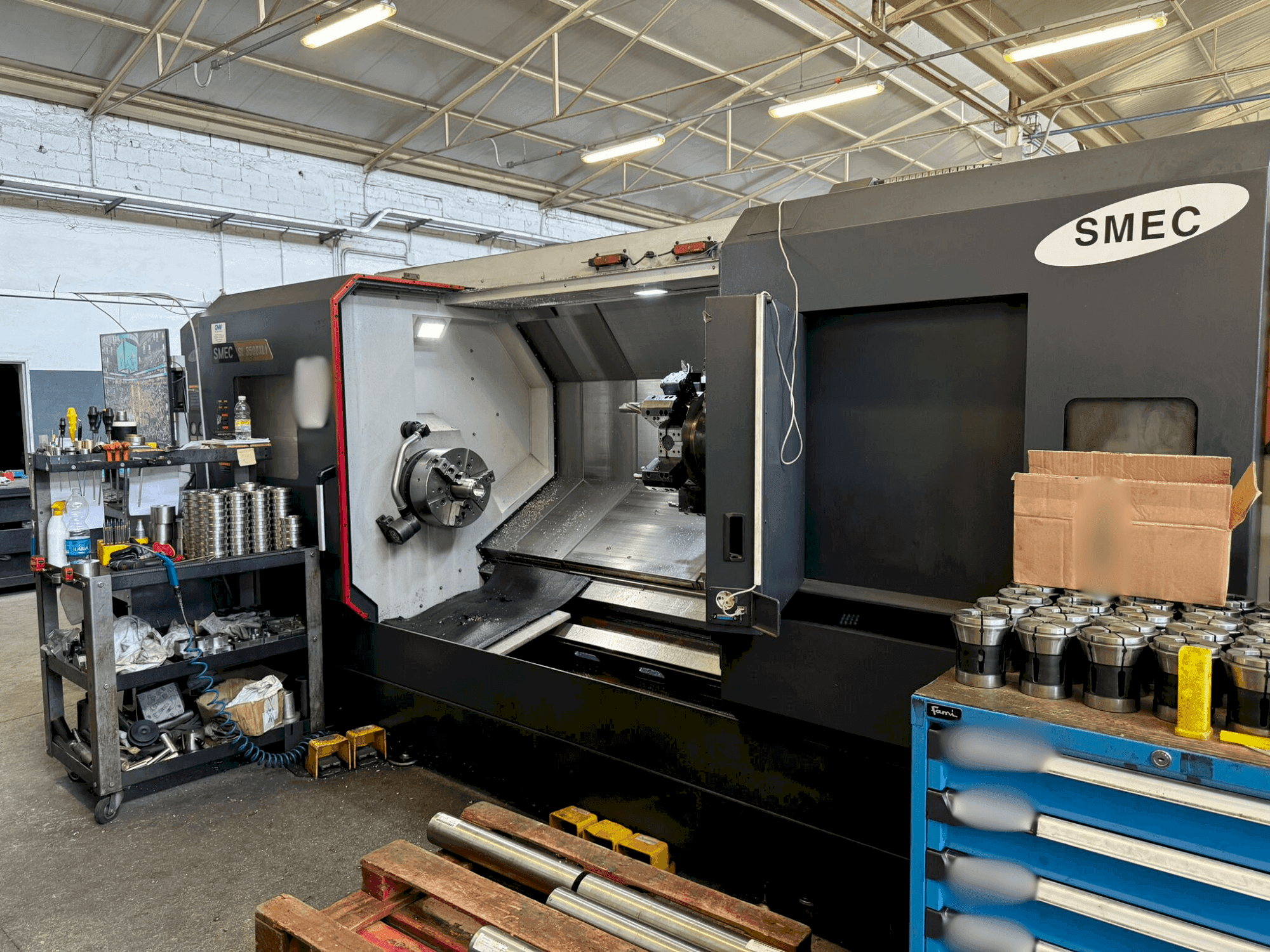

This 4-axis SMEC SL 3500XLY lathe was manufactured in 2018. It features a maximum turning diameter of 850mm, a length of 2125mm, and a spindle speed of 3000rpm. Equipped with a C-axis and a 12-position turret, it offers versatility for complex machining. Dimensions are 3620 x 1897 x 2230mm, weighing 10500kg. A robust choice for precision tasks, the SMEC SL 3500XLY machine we have for sale is ideal for expanding capabilities. Contact us for further details.

Overview

brand: SMEC
year: 2018
MODEL: SL 3500XLY
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - SMEC SL 3500XLY

General Data

Measurements width: 6000 mm + 1100 mm extra of the chip conveyor
Measurements depth: 2000 mm
Measurements height: 2300 mm
Machine weight: 10500 KG

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 26 kw

Movement

X-AXIS Movement: 280 mm
Y-AXIS Movement: 130 mm (+-65 mm)
Z-AXIS Movement: 2200 mm

Workpiece

Workpiece drm over bed: 850 mm
Workpiece drm over support: 430 mm

Turret

Max tool length: 2125 mm
Number of tool slots: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motorized tool speed: 4500mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
