Romi - GL 350BIT-TUR-ROM-2015-00001

Name: Romi GL 350B
Brand: Romi
SKU: IT-TUR-ROM-2015-00001
Price: 6985342 INR
Availability: InStock

Rs. 6,985,342

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Romi GL 350B For Sale | gindumac.com

Show in original language

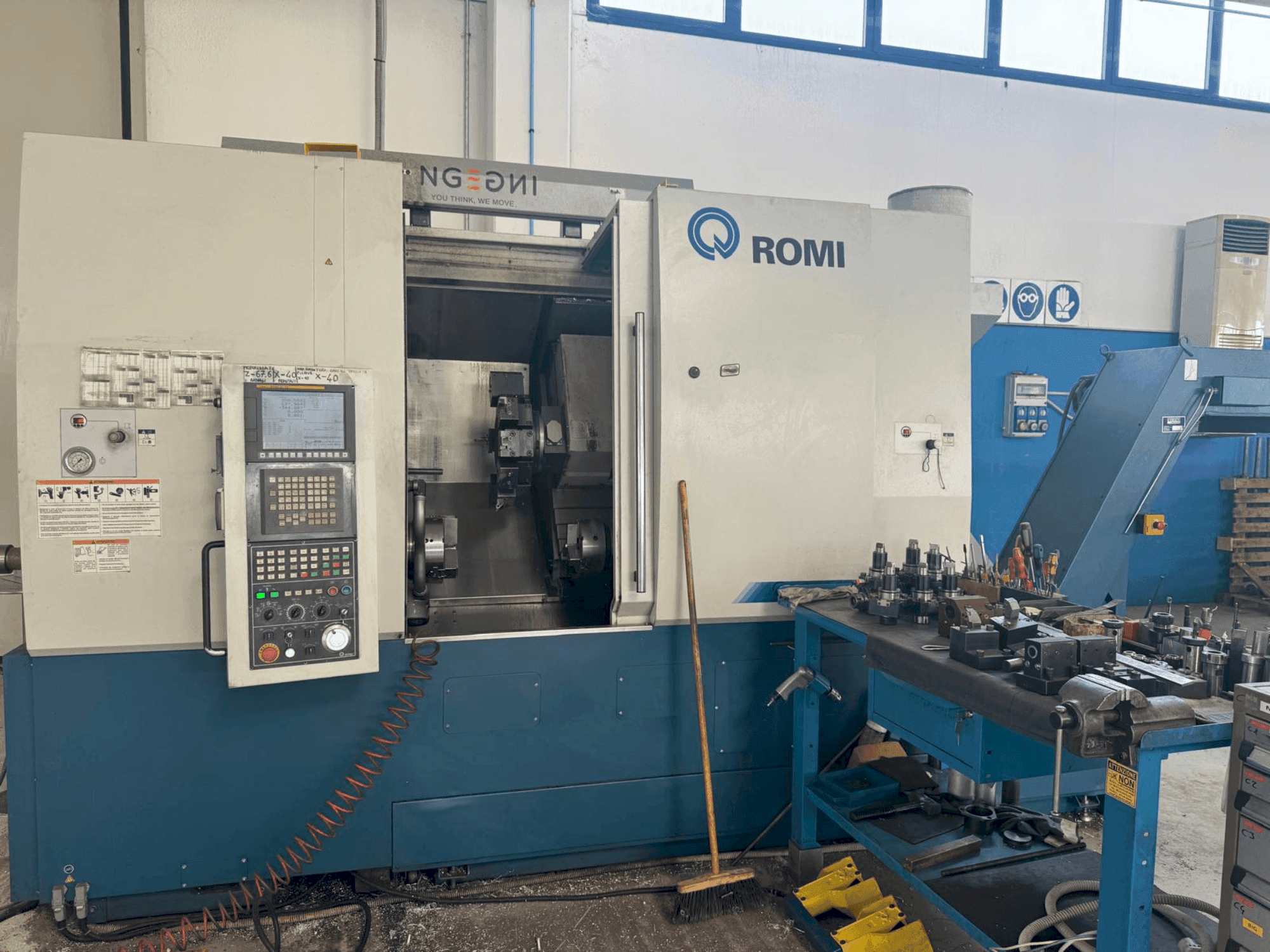

This 4-axis Romi GL 350B was manufactured in 2015. It features a FANUC 0i-TD control unit, a maximum bar passage of Ø 64 mm, and a spindle speed up to 4,000 rpm. With a tool turret of 12 positions and rapid feeds of 30 m/min in X/Z and 18 m/min in Y, it's ideal for efficient turning operations. Consider the opportunity to buy this Romi GL 350B horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Romi
year: 2015
MODEL: GL 350B
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Romi GL 350B

Control Unit

Control Brand: FANUC
Control Model: 0i-TD

Dimensions

Machine Depth: 2080 mm
Machine Weight: 9600 kg

Movement

B-axis Max: 830°
X-axis Travel: 243 mm
Y-axis Travel: 50 mm
Z-axis Travel: 740 mm

Technical Specification

Max. Workpiece Diameter: 350 mm
Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Bar passage: Ø 64 mm
Tool turret: 12 positions
Tool attachment: bmt-65
Counterspindle speed: 6–6000 rpm
Spindle nose: a2-8
Counterspindle nose: a2-5

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
