Goodway - GLS-2000LYSIT-TUR-GOO-2022-00001

Name: Goodway GLS-2000LYS
Brand: Goodway
SKU: IT-TUR-GOO-2022-00001
Price: 11749160 INR
Availability: InStock

Rs. 11,749,160

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Goodway GLS-2000LYS For Sale | gindumac.com

Show in original language

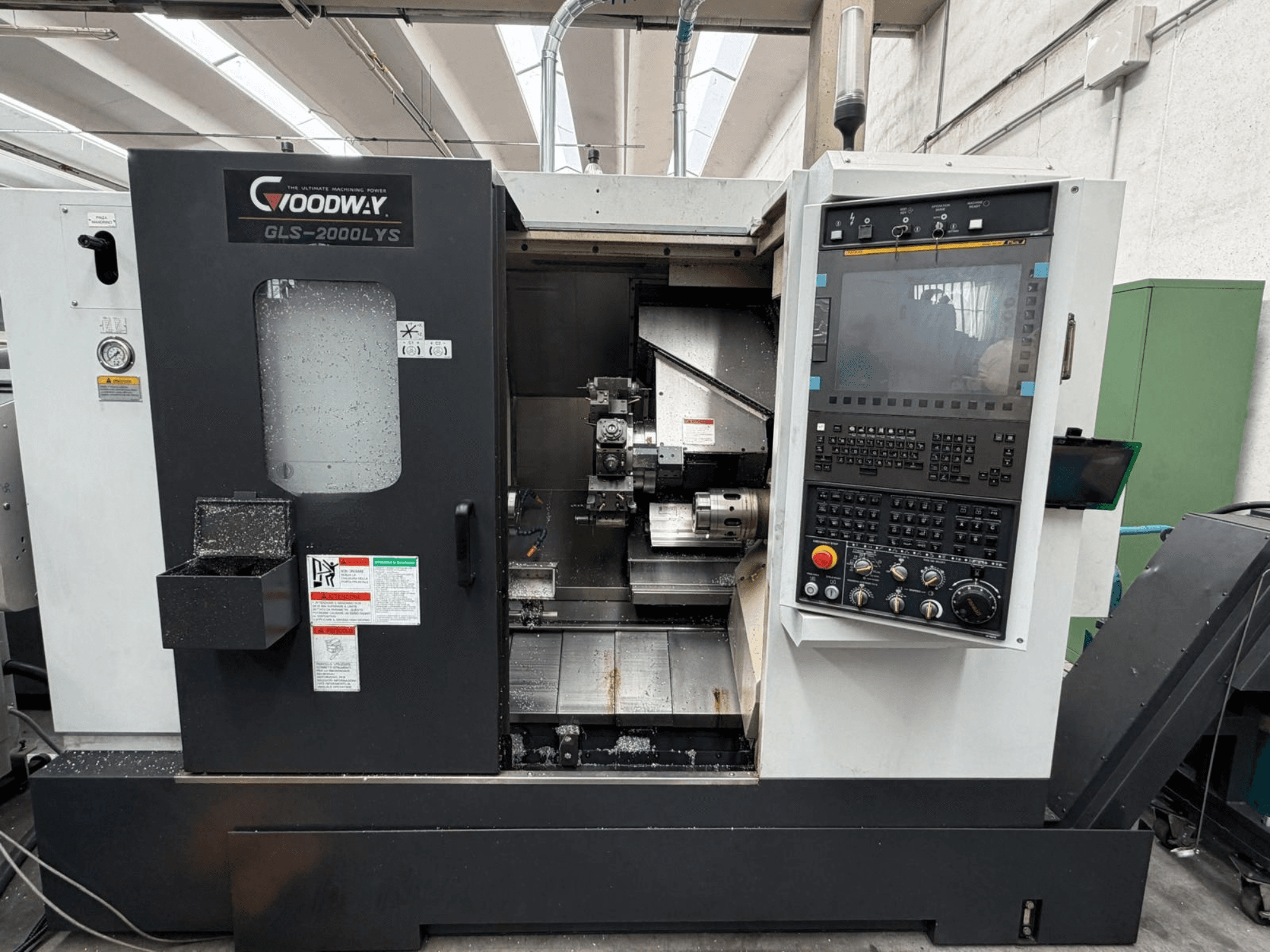

This 3-axis Goodway GLS-2000LYS was manufactured in 2022. It features a spindle speed of 4,500 rpm and a robust 12-station driven turret. The machine includes an 8" hydraulic chuck with a bar capacity of 65 mm and a 5" sub-spindle. If you are looking to get high-quality turning capabilities, consider the Goodway GLS-2000LYS horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Goodway
year: 2022
MODEL: GLS-2000LYS
production hours: 1729
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Goodway GLS-2000LYS

Control Unit

Control Brand: FANUC
Control Model: FANUC 0i-TF

Dimensions

Machine Weight: 3700 kg

Movement

Number of Axes: 3

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 15 kW
Spindle Speed: 4500 RPM

Additional Information

CNC control: FANUC 0i-TF (10.4" display with Manual Guide)
Working hours: 17,29H 24M 34S (operating time); Part count: 10,250
Main spindle chuck/collet: 8" hydraulic cylinder, Bellegrandi BA70 collet chuck group (bar capacity 65 mm)
Sub-spindle: 5" sub-spindle with hydraulic cylinder and ejector, Bellegrandi BA70 collet chuck group
Axes: C-axis (main & sub-spindle with disc brake), Y-axis
Turret: 12-station driven turret
Tool presetter: Renishaw HPRA manual presetter
Coolant pump: 7 bar / 3 bar M-code switchable pump and Grundfos 3/4 HP pump
Power supply: AC 380 V, 3-phase, 50/60 Hz
Nominal capacity: 30 kVA
Main breaker current: 50 A

Additional equipment

Chip conveyor with timer
Bar feeder (included)
20x Bellegrandi BA70 collets
Driven tool holders: 4 double axial driven tools, 2 radial driven tools
RS232 interface
Electrical cabinet heat exchanger

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
