➤ Used HAAS ST-28L For Sale | gindumac.com

Show in original language

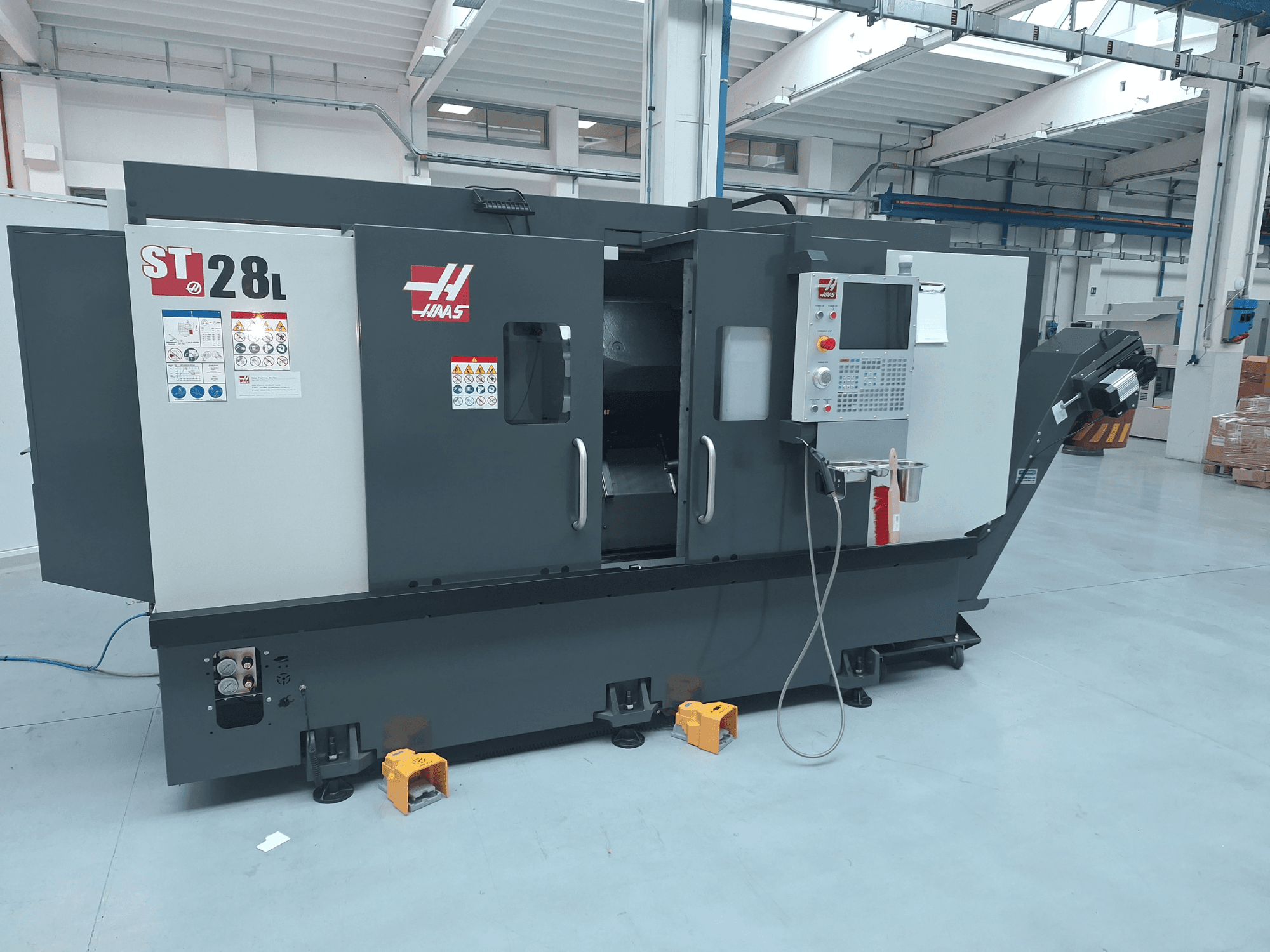

Horizontal turning machine manufactured in 2022. This HAAS ST-28L features a chuck size of 12.0 in (305 mm) and a maximum part swing of 21.0 in (533 mm). It offers a maximum cutting length of 42.5 in (1080 mm) and a spindle power of 40.0 hp (29.8 kW). If you are looking to get high-quality turning capabilities, consider the HAAS ST-28L machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2022
MODEL: ST-28L
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - HAAS ST-28L

Dimensions

Machine Weight: 5443 kg

Movement

Number of Axes: 2
X-axis Travel: 239 mm
Z-axis Travel: 1080 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 29.8 kW
Spindle Speed: 3200 RPM
Tool Stations: 12

Additional Information

Working hours: 0 (Showroom machine)
Chuck size: 12.0 in (305 mm)
Max part swing: 21.0 in (533 mm)
Max cutting diameter (with BOT turret): 13.00 in (330 mm)
Max cutting diameter (with BMT65 turret): 11.75 in (298 mm)
Max cutting length: 42.5 in (1080 mm)
Bar capacity: 4.00 in (102 mm)
Rapids X/Z: 945 ipm (24.0 m/min)
Max thrust X: 4100 lbf (18238 N)
Max thrust Z: 5100 lbf (22686 N)
Spindle nose: A2-8
Spindle torque (max): 425.0 ft-lbf @ 325 rpm (576.0 Nm @ 325 rpm)
Spindle bore: 4.62 in (117.3 mm)
Turret: 12-station BOT
Boring bar rear clearance: 4.00 in (102.0 mm)
Coolant capacity: 55 gal (208 L)
Air required: 4 scfm @ 100 psi (113.0 L/min @ 6.9 bar)
Inline air hose & coupler: 3/8 in
Minimum air pressure: 80 psi (5.5 bar)
Input AC voltage (3-phase): 220 VAC / 440 VAC
Full load amps (3-phase): 70 A (220 VAC) / 35 A (440 VAC)
Shipping dimensions: 190.0 x 90.0 x 90.0 in (483 x 229 x 229 cm)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
