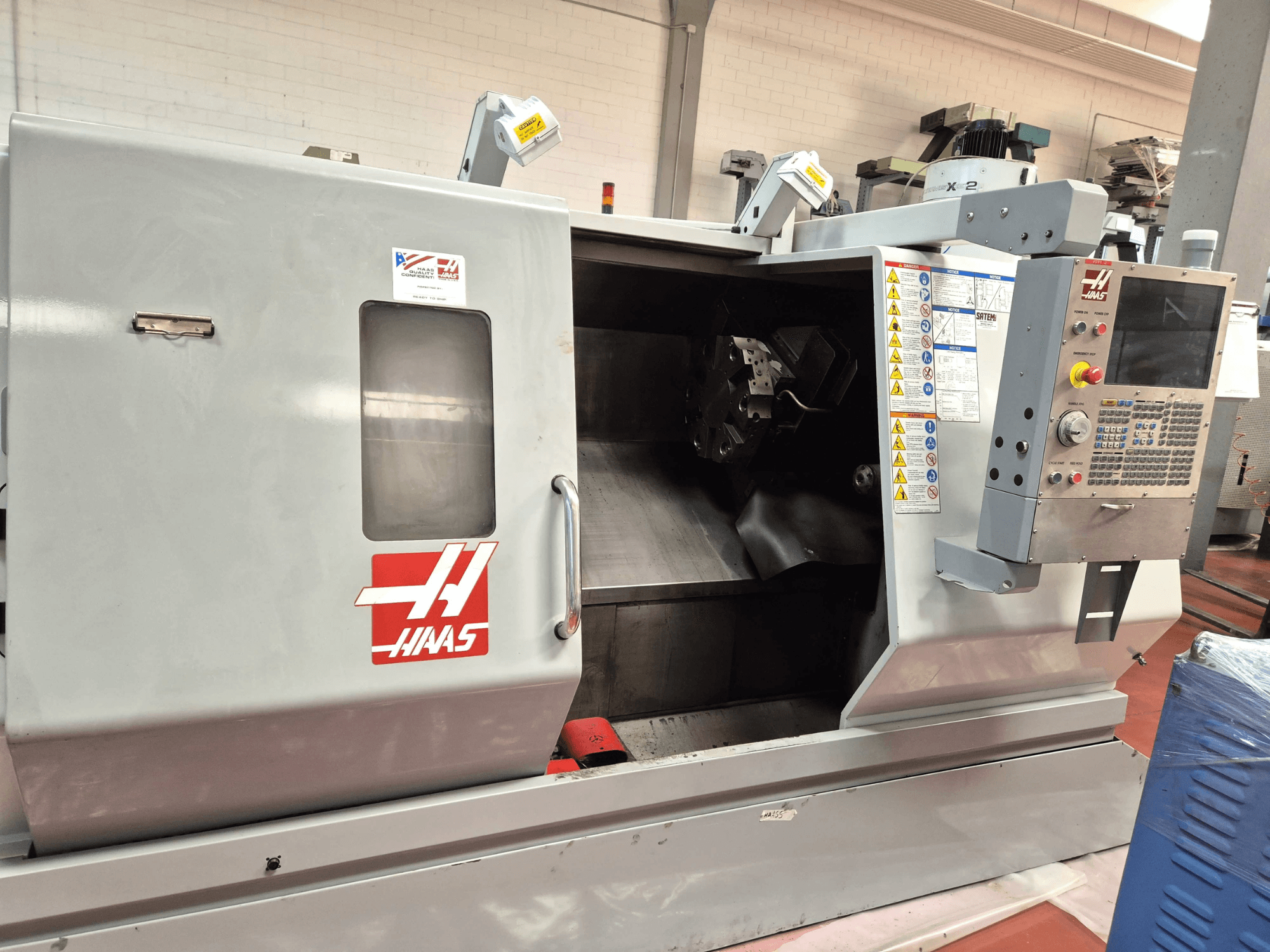

This 3-axis HAAS SL 30TBHE was manufactured in 2007. It features a maximum turning diameter of 406 mm and a maximum turning length of 864 mm. The machine is equipped with a chuck diameter of 315 mm and a spindle bore of 103 mm. If you are looking to get high-quality turning capabilities, consider the HAAS SL 30TBHE CNC lathe we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2007
- MODEL: SL 30TBHE
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: HAAS
Technical Information - HAAS SL 30TBHE
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Weight: 7000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 287 mm
- Z-axis Travel: 864 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 2400 RPM
Additional Information
Configuration: 3-axis machine with driven tools; no counter spindle
Spindle bore: 103 mm
Chuck diameter: 315 mm
Max turning diameter: 406 mm
Max turning diameter over saddle: 368 mm
Max turning length: 864 mm
Tool turret capacity: 12 positions
Live tooling: Yes
Additional equipment
Included tooling: 1 live tool + additional accessories (unspecified)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
