➤ Used HAAS SL-30THE For Sale | gindumac.com

Show in original language

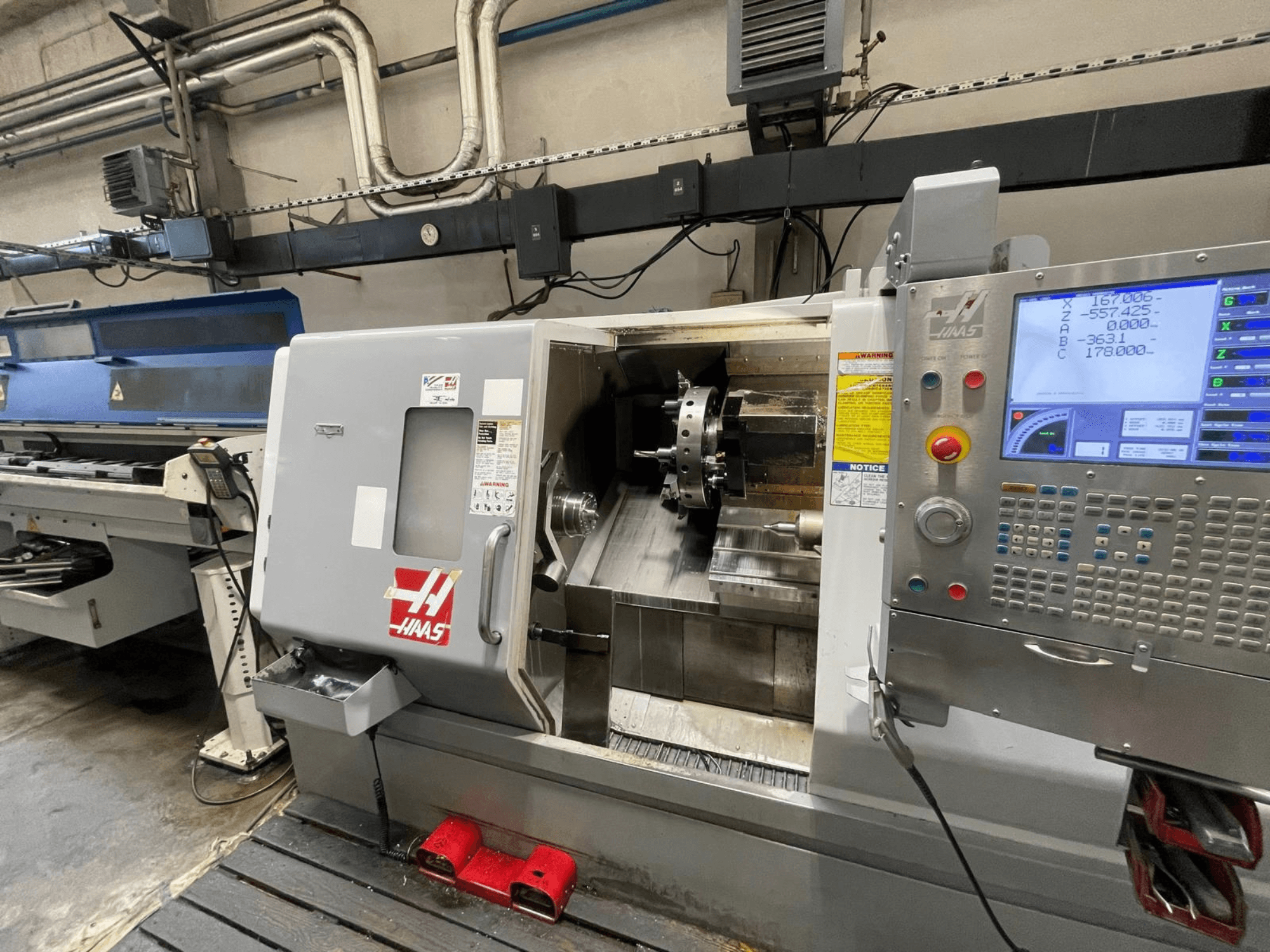

This 3-axis HAAS SL-30THE was manufactured in 2007. It features a maximum swing over the front cover of 762 mm and a maximum cutting diameter of 432 mm. The machine offers a cutting length of 864 mm and a spindle speed of 3400 rpm. If you are looking to get high-quality turning capabilities, consider the HAAS SL-30THE horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2007
MODEL: SL-30THE
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine

Technical Information - HAAS SL-30THE

Dimensions

Machine Weight: 6804 kg

Movement

Number of Axes: 3
X-axis Travel: 287 mm
Z-axis Travel: 864 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 22.4 kW
Spindle Speed: 3400 RPM
Tool Stations: 12

Additional Information

Max swing over front cover: 762 mm
Max swing over cross slide: 381 mm
Max cutting diameter: 432 mm
Max cutting length: 864 mm
Spindle bore: 88.9 mm
Max torque: 407 Nm @ 700 rpm
Spindle nose (standard): A2-6
X-axis rapid feed: 18.0 m/min
Z-axis rapid feed: 18.0 m/min
Number of tool stations: 12
Outside/inside turning tool size: 25 mm
Bore size for turning tools: 50 mm
Tool change time (adjacent tool): 1 s
Tool change time (opposite tool): 3 s
Electrical supply / power requirement: 28 kVA
Voltage: 380 V, 3-phase
Air requirement: 113 l/min @ 6.9 bar
Coolant tank capacity: 189 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
