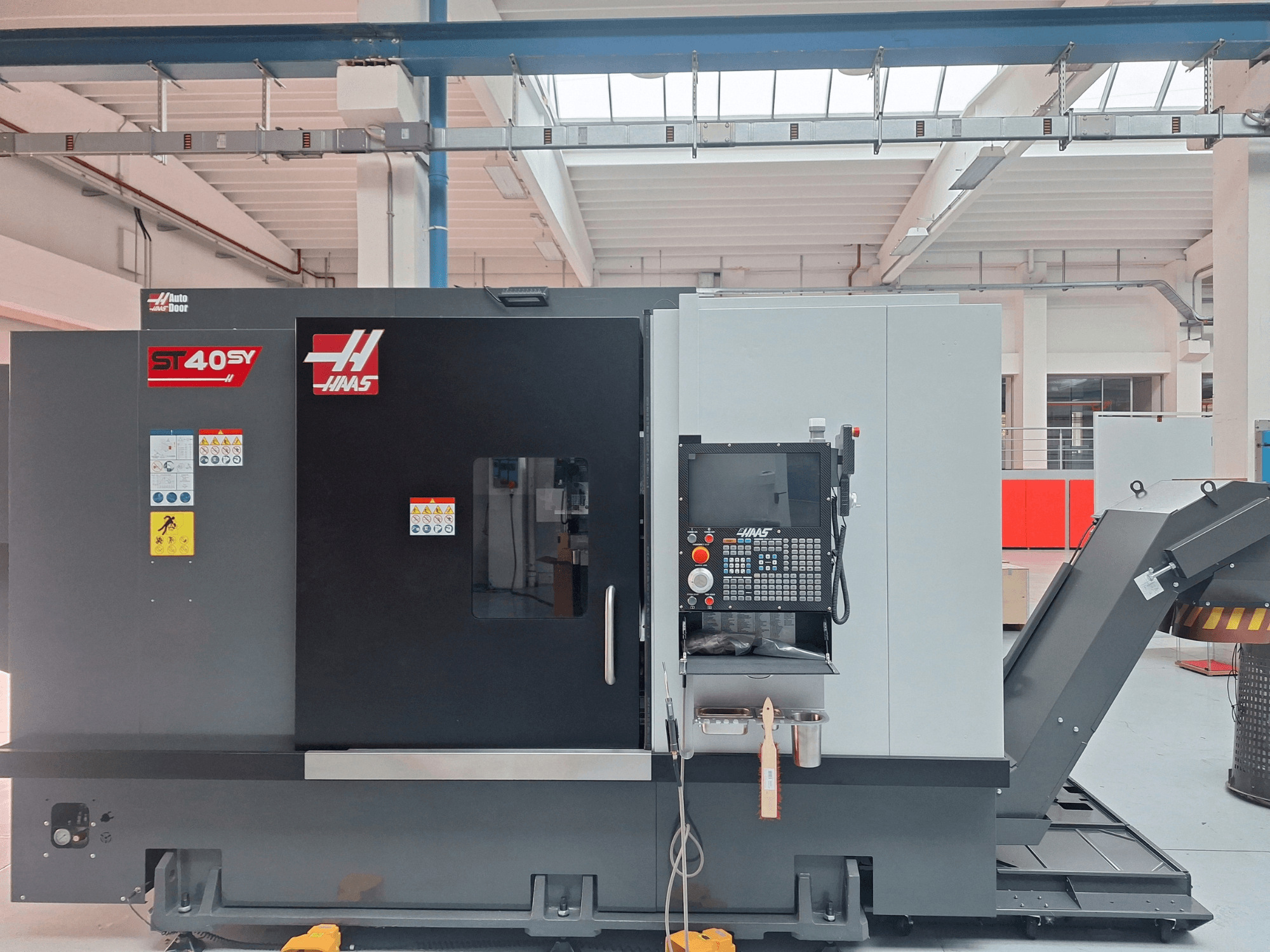

HAAS - ST-40SYIT-TUR-HAA-2025-00001

• Working Hours: 0

• Showroom Machine

• Chuck Size: 15.0 in / 381 mm

• Max Part Swing: 35.5 in / 902 mm

• Max Cutting Diameter (with BMT75 turret): 27.50 in / 699 mm

• Max Cutting Length: 28.0 in / 711 mm

• Bar Capacity: 4.00 in / 102 mm

• X Axis Rapids: 472 ipm / 12.0 m/min

• Y Axis Rapids: 472 ipm / 12.0 m/min

• Z Axis Rapids: 710 ipm / 18.0 m/min

• Max Thrust X: 5500 lbf / 24465 N

• Max Thrust Y: 2300 lbf / 10231 N

• Max Thrust Z: 9000 lbf / 40034 N

• Spindle Nose: A2-8

• Drive System: 2-Speed Gearbox

• Spindle Max Torque: 1400.0 ft-lbf @ 150 rpm / 1898.0 Nm @ 150 rpm

• Spindle Bore ø: 4.62 in / 117.3 mm

• XP Option Drive System: 2-Speed Gearbox

• XP Option Max Rating: 55.0 hp / 41.0 kW

• XP Option Max Speed: 2400 rpm

• XP Option Max Torque: 2100.0 ft-lbf @ 150 rpm / 2847.0 Nm @ 150 rpm

• Main Spindle C Axis Max Rating: 5.0 hp / 3.7 kW

• Main Spindle C Axis Max Speed: 49 rpm

• Main Spindle C Axis Positioning: ± 0.01 °

• Main Spindle C Axis Brake Diameter: 21.5 in / 546 mm

• Main Spindle C Axis Brake Holding Torque: 450 ft-lbf / 610 Nm

• Tailstock Taper: MT5

• Tailstock Travel: 26.0 in / 660 mm

• Tailstock Max Thrust (Acme): 3,000 lbf / 13,345 N

• Tailstock Min Thrust (Acme): 200 lbf / 890 N

• Turret Number of Tools: 12 Stations

• Turret Index Time (one tool): 2 s

• Turret Tooling: BMT75

• Live Tooling Max Speed: 4000 rpm

• Live Tooling Tooling: BMT75

• Coolant Capacity: 95 gal / 360 L

• Air Requirements: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar

• Inline Air Hose: 3/8 in

• Air Pressure Min: 80 psi / 5.5 bar

• Input AC Voltage (3 Phase) - Low: 220 VAC

• Full Load Amps (3 Phase) - Low: 70 A (Standard) / 105 A (XP Option)

• Input AC Voltage (3 Phase) - High: 440 VAC

• Full Load Amps (3 Phase) - High: 35 A (Standard) / 53 A (XP Option)

• Domestic Pallet Dimensions: 217.0 in x 95.0 in x 116.0 in / 551 cm x 241 cm x 295 cm

• Export Crate Dimensions: 217.0 in x 95.5 in x 120.5 in / 551 cm x 243 cm x 306 cm

• Export Crate Weight: 22,141 lb / 10,043.0 kg

Additional equipment

• Chip conveyor

• Remote jog handle / CNC control pendant

• Auto-door feature

• Eppinger Preci-Flex live tooling holders

• Samchully 3-jaw chuck

• Tool setter / touch probe

• Coolant/air blow hose
