- ➤ Used HAAS DS30Y Horizontal Lathe For Sale | gindumac.com

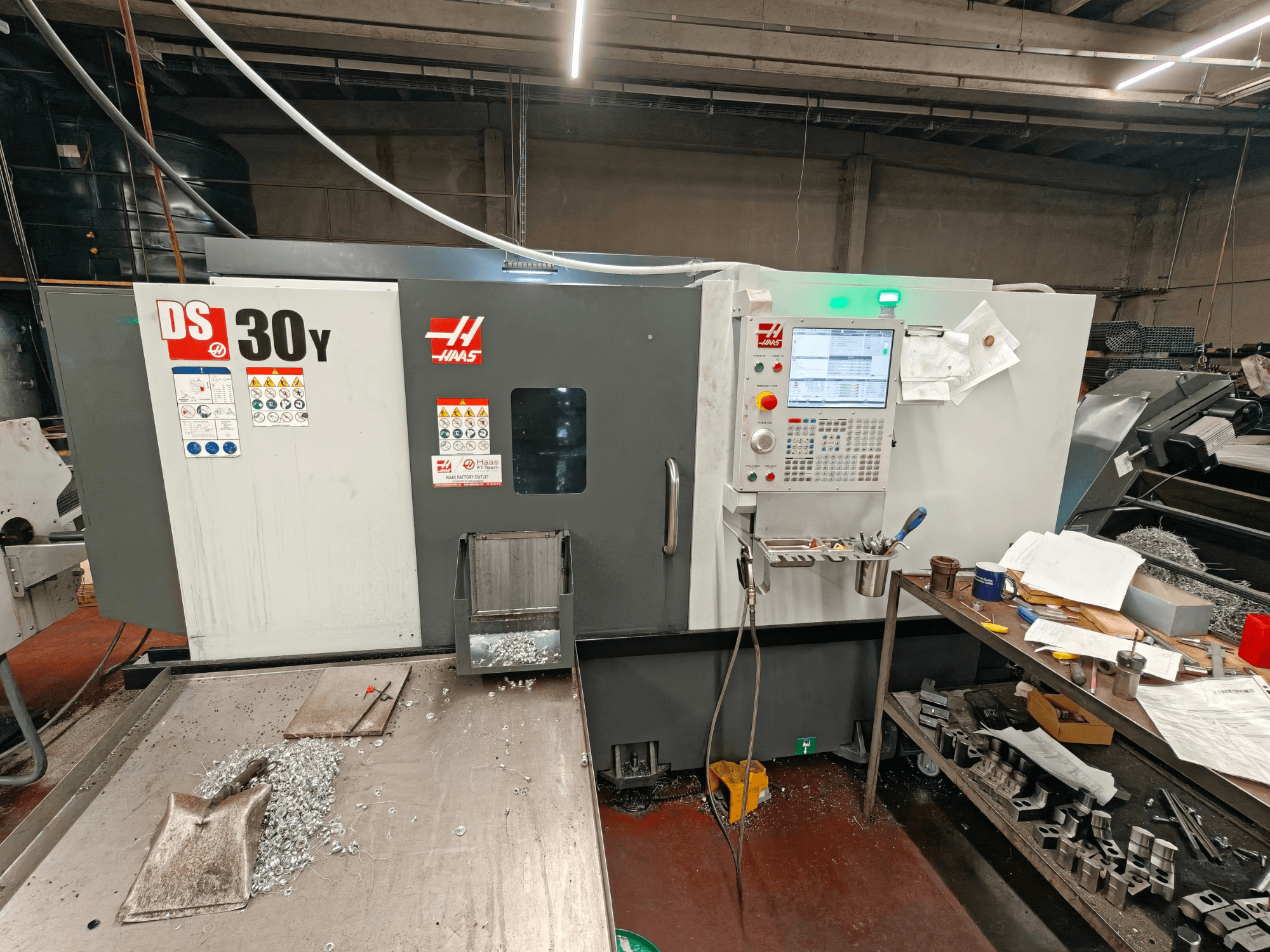

This 4-axis HAAS DS30Y horizontal turning machine was manufactured in 2023. It features a maximum part swing of 533 mm and a maximum cutting diameter of 349 mm. The machine is equipped with a robust turret that accommodates 12 tools and offers a maximum cutting length of 826 mm. If you are looking to get high-quality turning capabilities, consider the HAAS DS30Y machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: HAAS
- year: 2023
- MODEL: DS30Y
- production hours: 1775
- application type: Turning
- Location: Belgium
- machine type: Horizontal Turning Machine
Technical Information - HAAS DS30Y
Movement
- Number of Axes: 4
- X-axis Travel: 239 mm
- Y-axis Travel: 102 mm
- Z-axis Travel: 584 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22.4 kW
- Spindle Speed: 4500 RPM
Additional Information
Capacities (S.A.E / Metric)
Chuck size: 10.0 in (254 mm)
Max part swing: 21.0 in (533 mm)
Max cutting diameter (with BMT65 turret): 13.75 in (349 mm)
Max cutting length (varies with workholding): 32.5 in (826 mm)
Bar capacity: 3.00 in (76 mm)
Between centers: 32.5 in (826 mm)
Feedrates (S.A.E / Metric)
Rapids on X: 472 ipm (12.0 m/min)
Rapids on Y: 472 ipm (12.0 m/min)
Rapids on Z: 945 ipm (24.0 m/min)
Axis Motors (S.A.E / Metric)
Max thrust X: 4100 lbf (18,238 N)
Max thrust Y: 2300 lbf (10,231 N)
Max thrust Z: 5100 lbf (22,686 N)
Main Spindle (S.A.E / Metric)
Spindle nose: A2-6
Drive system: Direct speed, belt drive
Max torque: 275.0 ft-lbf @ 500 rpm (373.0 Nm @ 500 rpm)
Draw tube bore: ø 3.0 in (76 mm)
Spindle bore: ø 3.50 in (88.9 mm)
Main Spindle C Axis (S.A.E / Metric)
Max speed: 60 rpm
Max rating: 5.0 hp (3.7 kW)
Positioning (±): 0.01°
Brake diameter: 13.9 in (353 mm)
Brake holding torque: 250 ft-lbf (339 Nm)
Control type: Interpolated motion and positioning
Secondary Spindle (S.A.E / Metric)
Chuck size: 8.3 in (210 mm)
Spindle nose: A2-5
Drive system: Direct speed, belt drive
Max rating: 15.0 hp (11.2 kW)
Max speed: 4000 rpm
Max torque: 100.0 ft-lbf @ 870 rpm (135.6 Nm @ 870 rpm)
Spindle bore ø (non-through): 0.81 in (20.7 mm)
Secondary Spindle C Axis (S.A.E / Metric)
Max rating: 5.0 hp (3.7 kW)
Max speed: 60 rpm
Positioning (±): 0.01°
Brake diameter: 8.5 in (216 mm)
Brake holding torque: 140 ft-lbf (190 Nm)
Control type: Interpolated motion and positioning
Secondary Spindle Positioning (M119) (S.A.E / Metric)
Positioning (±): 0.02°
Brake diameter: 8.5 in (216 mm)
Control type: Positioning only
Turret (S.A.E / Metric)
Number of tools: 12 stations
OD vs ID tools: Any combination (will vary with turret)
Boring bar rear clearance (from back of turret): 4.00 in (102.0 mm)
Live Tooling (S.A.E / Metric)
Max speed: 4000 rpm
Drive ratio: 1:1
Tooling: BMT65
General (S.A.E / Metric)
Coolant capacity: 55 gal (208 L)
Air Requirements (S.A.E / Metric)
Air required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline air hose: 3/8 in
Coupler (air): 3/8 in
Air pressure min: 80 psi (5.5 bar)
Electrical Specification (S.A.E / Metric)
Drive system: Direct speed, belt drive
Spindle power: 30.0 hp (22.4 kW)
Input AC voltage (3 phase) - Low: 220 VAC; Full load amps (Low): 70 A
Input AC voltage (3 phase) - High*: 440 VAC; Full load amps (High*): 35 A
Dimensions - Shipping (S.A.E / Metric)
Domestic pallet: 171 in x 90 in x 98 in (434 cm x 229 cm x 249 cm)
Export pallet: 171 in x 90 in x 98 in (434 cm x 229 cm x 249 cm)
Additional equipment
Bar feeder
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
