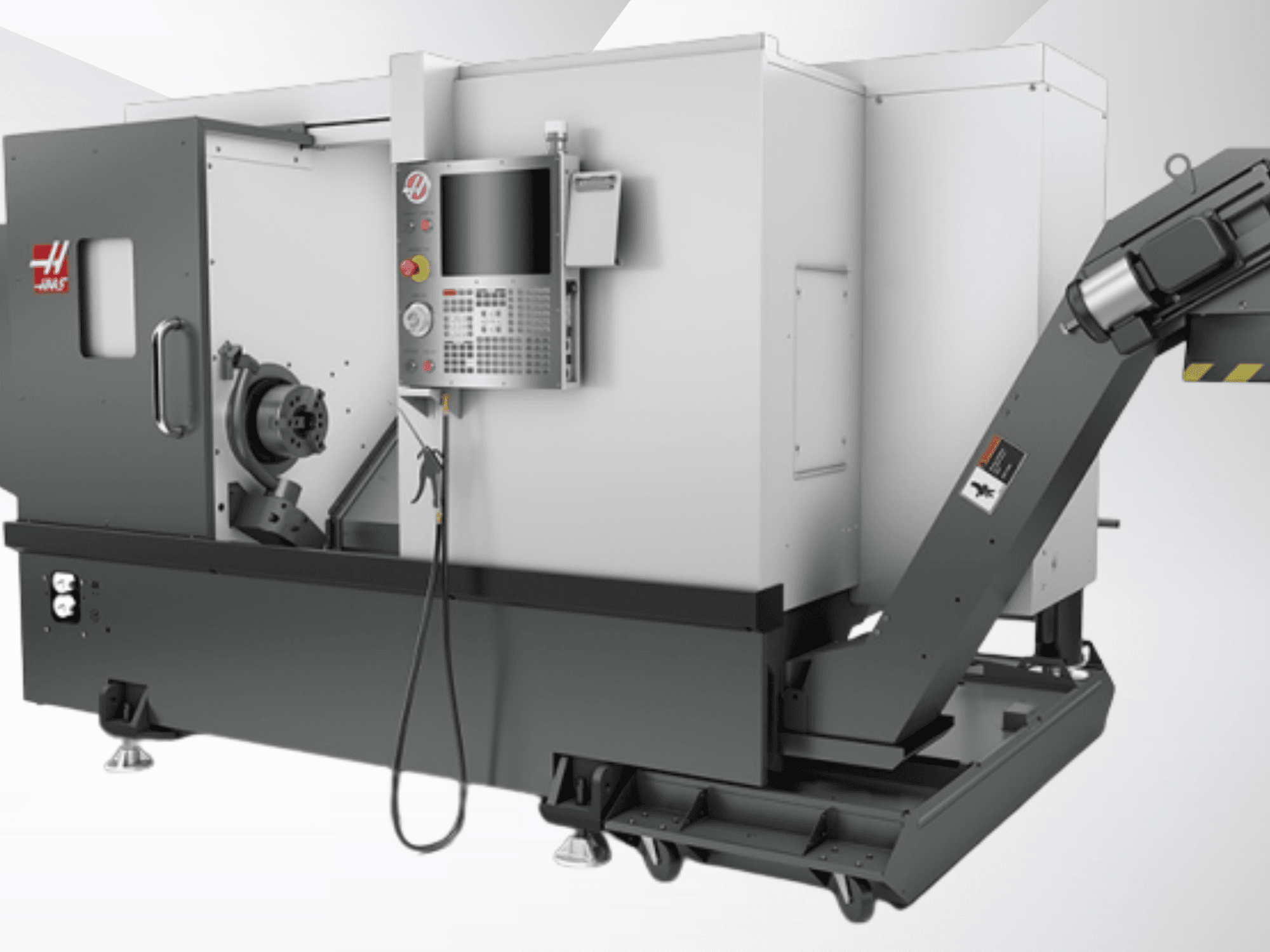

HAAS - ST-20ES-TUR-HAA-2022-00002

• Chuck size: 8.3 in / 210 mm

• Max part swing: 21.0 in / 533 mm

• Max cutting diameter (BOT turret): 13.00 in / 330 mm

• Max cutting diameter (BMT65 turret): 11.75 in / 298 mm

• Max cutting length: 22.5 in / 572 mm

• Bar capacity: 2.50 in / 64 mm

• X-axis rapid rate: 945 ipm / 24.0 m/min

• Z-axis rapid rate: 945 ipm / 24.0 m/min

• X-axis max thrust: 4,100 lbf / 18,238 N

• Z-axis max thrust: 5,100 lbf / 22,686 N

• Spindle nose: A2-6

• Spindle drive system: Direct speed, belt drive

• Spindle max torque: 150.0 ft-lbf @ 500 rpm / 203.0 Nm @ 500 rpm

• Spindle bore: 3.50 in / 88.9 mm

• Turret stations: 12 stations (VDI 40)

• Boring bar rear clearance: 4.00 in / 102.0 mm

• Coolant tank capacity: 55 gal / 208 L

• Coolant pump: 1 HP / 0.75 kW variable-flow (45 L/min @ 2 bar)

• Air requirement: 4 scfm @ 100 psi / 113 L/min @ 6.9 bar

• Air pressure minimum: 80 psi / 5.5 bar

• Air line / coupler size: 3/8 in

• Low voltage electrical: 220 VAC (3 phase), 40 A full load

• High voltage electrical: 440 VAC (3 phase), 20 A full load (internal non-isolated transformer 380–480V included)

• Shipping dimensions: 143 in x 90 in x 92 in / 362 cm x 229 cm x 234 cm

• Control system: Haas NextGen Control with touchscreen interface, 1 GB memory, Ethernet, Wi‑Fi, HaasConnect Remote Monitoring, and Haas Drop

• Included machine features/options: Automatic Tool Presetter; Programmable Hydraulic Tailstock (MT4); Rigid Tapping; M130 Media Display; Safe Run; Power Failure Detection Module; Visual Part Programming System

Additional equipment

• Belt-type chip conveyor

• Chip strainer filter kit (200 micron)
