SCM Morbidelli M200F

Photo Gallery

SCM - Morbidelli M200FDE-CNC-SCM-2020-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used SCM Morbidelli M200F For Sale | gindumac.com

Show in original language

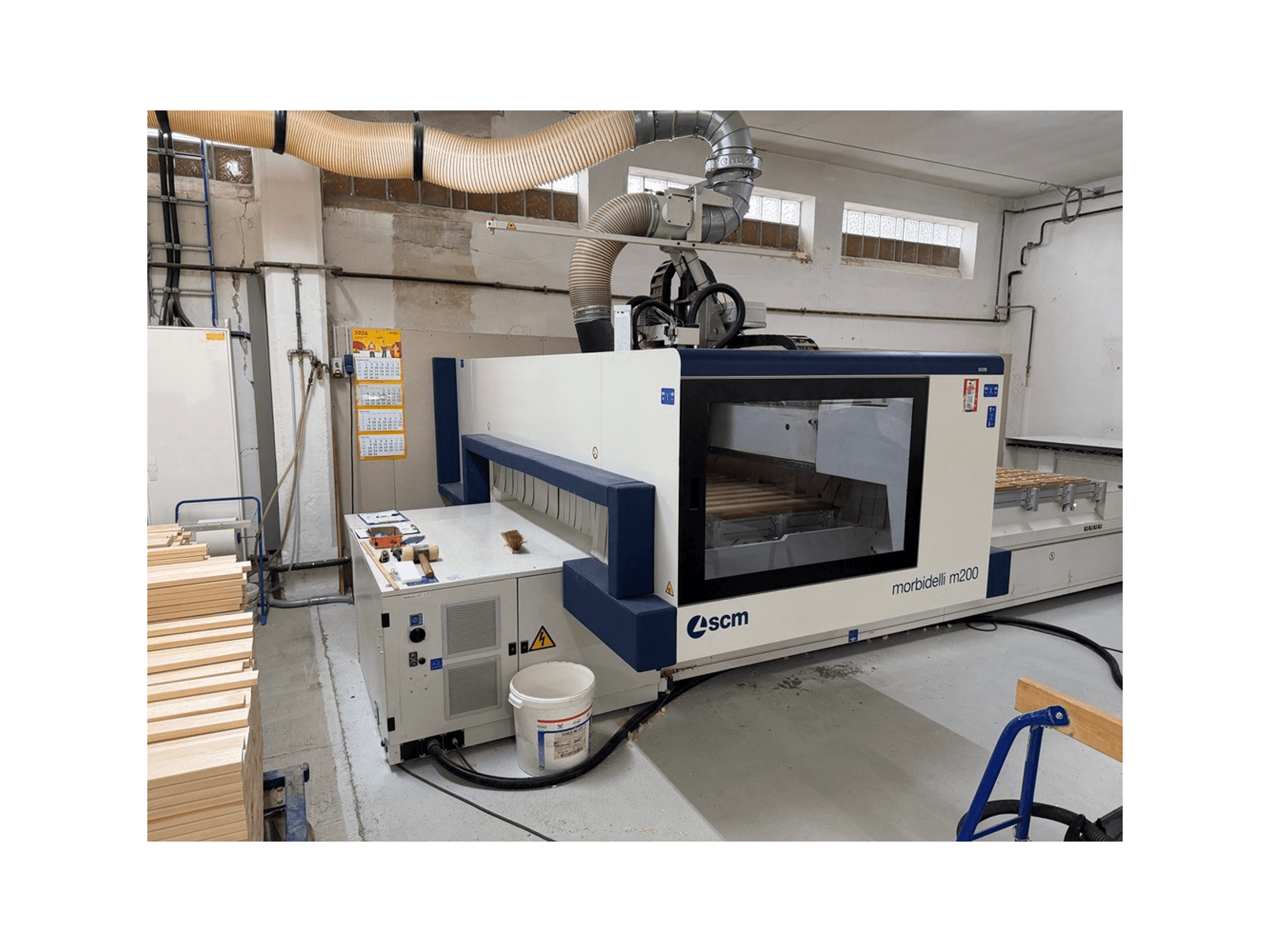

This 5-axis SCM Morbidelli M200F was manufactured in 2020. It features an impressive X-axis working range of 3710 mm and a Y-axis working range of 1620 mm. The machine is equipped with a high-performance 5-axis Prisma 5 electric spindle, capable of speeds up to 24,000 rpm. If you are looking to get high-quality CNC processing capabilities, consider the SCM Morbidelli M200F machine we have for sale. Contact us for further details.

Overview

brand: SCM
year: 2020
MODEL: Morbidelli M200F
application type: CNC Wood Machining
Location: Germany
machine type: CNC Processing Center

Technical Information - SCM Morbidelli M200F

Movement

Number of Axes: 5
X-axis Travel: 3710 mm
Y-axis Travel: 1620 mm

Technical Specification

Spindle Speed: 24000 RPM

Additional Information

Working width: 1585 mm
Workpiece length for pendulum machining: 1700 + 1700 mm
X-Y axes travel speed (PRO-SPACE): 56 m/min
X-Y axes travel speed (PRO-SPEED): 78 m/min
Remote control with 7" touchscreen display
TRB14 tool changer with pneumatic remote adjustment
- Max. 14 tools
- Max. tool diameter: 300 mm (3-axis), 350 mm (5-axis)
FAST14 tool changer
- Max. 14 tools
- Tool diameter: 180 mm
- Axis spacing: 7 positions with 110 mm spacing; 7 positions with 130 mm spacing
Blow-off nozzle system on the electric spindle
5-axis Prisma 5 electric spindle, “KS” version
- HSK 63F
- Rotational speed: 1,800–24,000 rpm
- Power (S1/S6): 11/12 kW at 15,000 rpm
- Clockwise and counterclockwise rotation programmable via NS
- Coolant circulation system
High-performance vacuum pump: 300/360 m³/h, 50/60 Hz
Work table divided into 8 vacuum zones
Laser system for positioning the suction cups
eye-M PRO console with integrated PC
Maestro CNC software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
