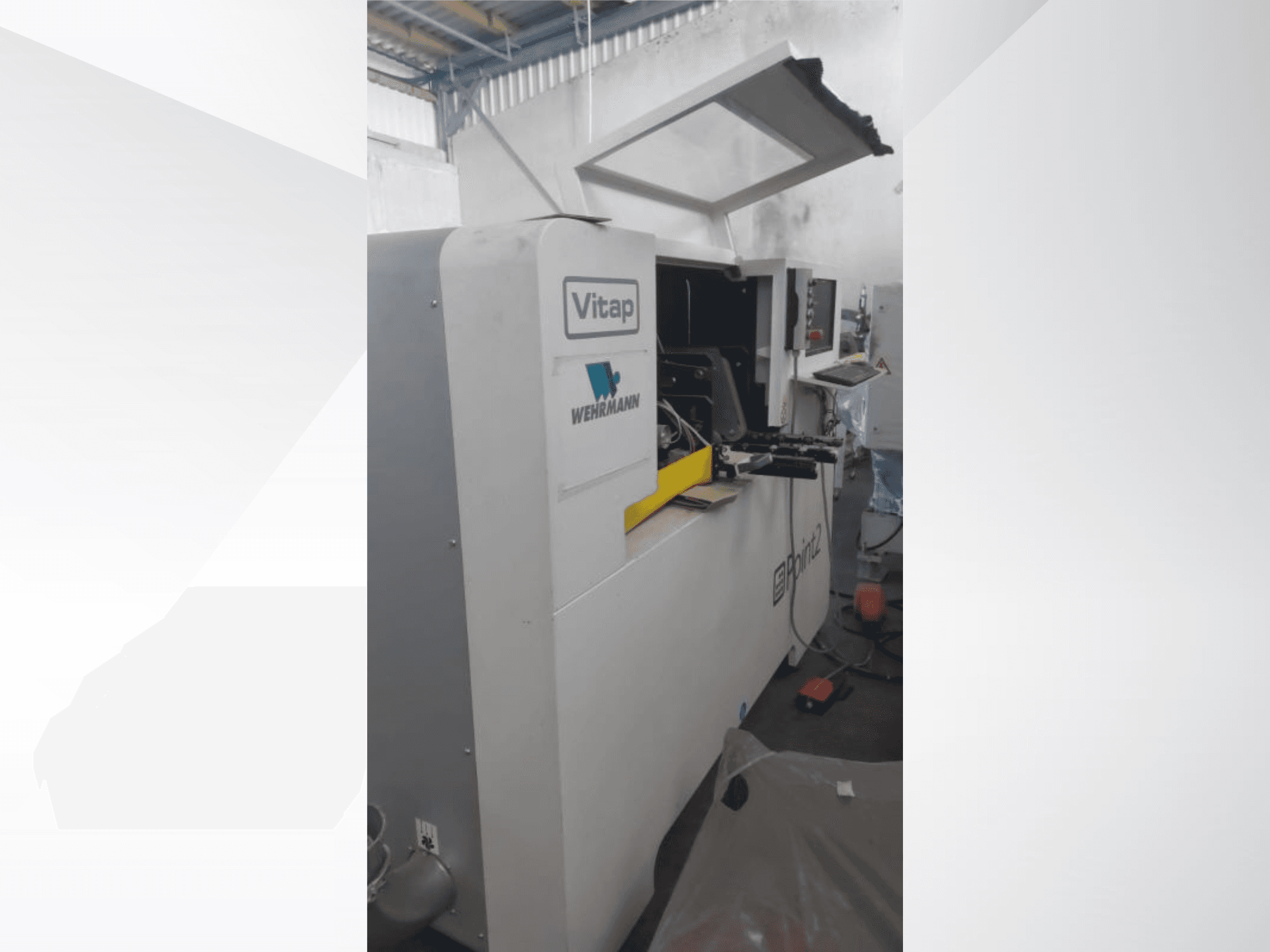

VITAP - POINT 2DE-CNC-VIT-2016-00001

Number of spindles: 9 vertical independent spindles; 2+2 horizontal spindles on X axis; 1+1 horizontal spindles on Y axis

Drilling depth: 45 mm

Number of Axes: 3

X-Axis: Uninterrupted movement of the panel due to a patented belt transport system; no limit in panel length

Y-Axis: 920 mm

Z-Axis: 50 mm

Rapid Traverse: 25 m/min

Max tool diameter: 35 mm vertical; 12 mm horizontal

Used CNC boring machine

Year of manufacture: 2016

Smart solution for throughfeed drilling and grooving with automatic panel return to operator

Latest generation motor and ball screw on Z axis

Perfect for batch 1

Setup time = 0

High productivity and flexibility

Easy TPA programming

Cutting optimization software

Graphics programming CAD TPA, base version

Saving all files with all data

Macro programming

Import DXF files

Control: Full Parametric

Office programming software TPA

1 blade for grooving

Min. size of the panel X 270/400 mm, Y 150 mm, Z 10 mm

CE standards

The technical data and descriptions are copies of the order confirmation at the time

The information is for informational purposes only and is not binding
