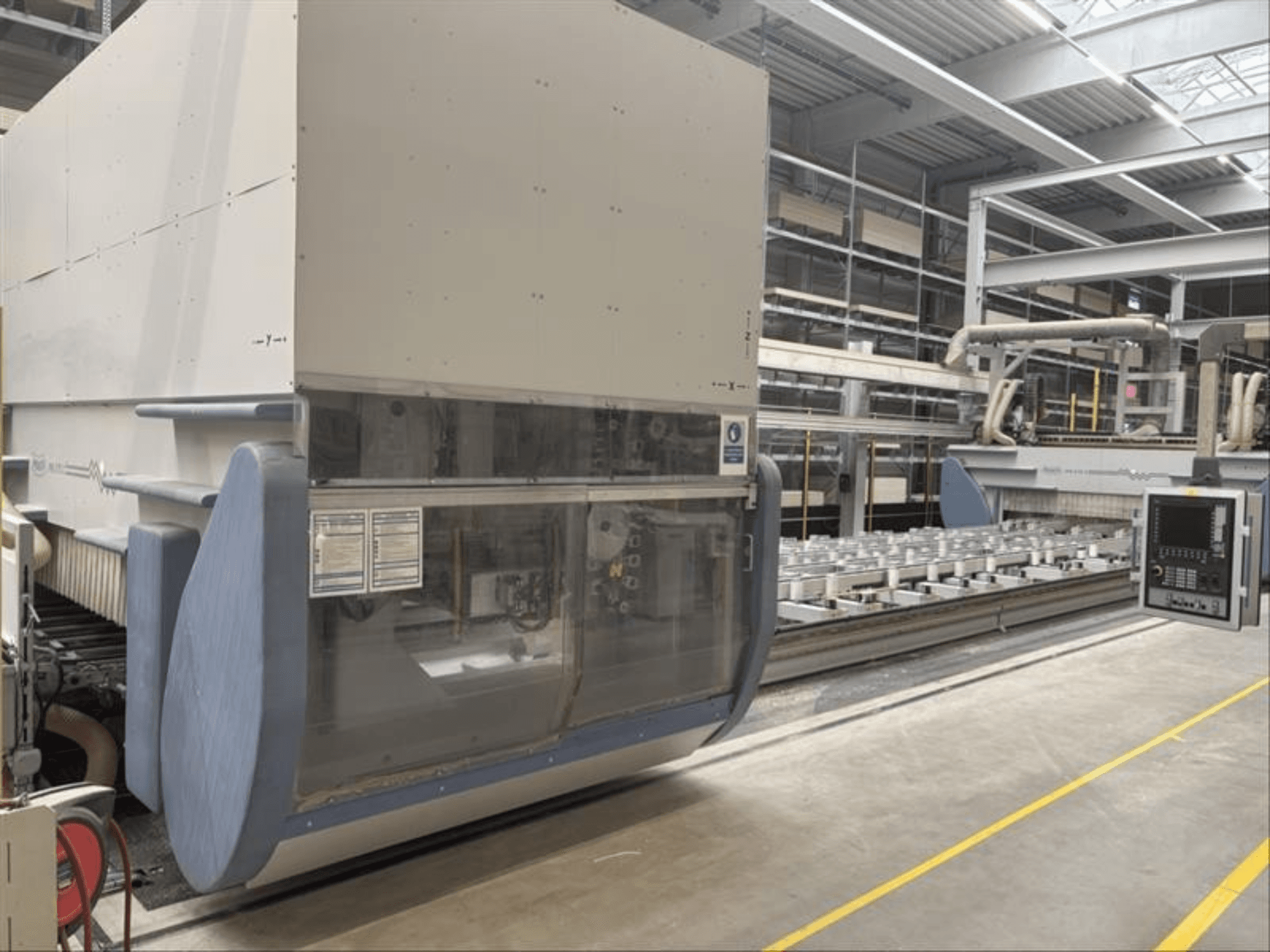

This 5-axis MAKA PM 270 X CNC processing center was manufactured in 2012. It features an impressive X-axis travel of 9000 mm and Y-axis travel of 2700 mm, designed for workpiece thicknesses up to 60 mm. The machine includes a powerful milling spindle with adjustable speeds up to 24,000 rpm and a tool magazine with 32 positions for efficient tool changes. If you are looking to get high-quality milling and drilling capabilities, consider the MAKA PM 270 X machine we have for sale. Contact us for further details.
Overview
- brand: MAKA
- year: 2012
- MODEL: PM 270 X
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Processing Center
- control unit brand: SIEMENS
Technical Information - MAKA PM 270 X
Control Unit
- Control Brand: SIEMENS
- Control Model: SIEMENS 840D
Movement
- Number of Axes: 5
- X-axis Travel: 9000 mm
- Y-axis Travel: 2700 mm
- Z-axis Travel: 420 mm
Technical Specification
- Spindle Power: 26 kW
- Spindle Speed: 24000 RPM
Additional Information
CNC control: Siemens 840D sl / PCU 50 with NCU 730; OP 15 control panel with 15" display on a guide rail along the longitudinal axis
Working area / machinable cube (with tool L/D 160 mm):
X: 9000 mm (with both gantries)
Y: 2700 mm
Z: standard cube size 420 mm
Custom-designed for workpiece thicknesses up to 60 mm
5-axis unit
Portal 1:
Universal 5-axis milling unit
Spindle power: 20/26 kW (S1/S6)
Speed: up to 24,000 rpm, water-cooled
Tool interface: HSK F63, automatic tool change
Thread cutting possible
Chain tool magazine: 32 positions with rotary gripper; fixed on operator side
Portal 2:
2 unit mounting consoles, each with 2 heavy-duty multi-spindle drilling units
Shared exhaust hood
13 drilling spindles per unit (26 total), individually selectable vertically, L-shaped arrangement
2 inclined drilling spindles adjustable 0–25° forward (1 right, 1 left), approx. 2.2 kW each, 2800 rpm
Drill chuck: Rego Fix ER 25 M
Machine table:
Base frame with linear guide
12 table crossbeams on linear guides for X-positioning, each NC-driven and positionable
Vacuum supply integrated into the crossbeams
Each crossbeam individually vacuum-monitored and linked to machine control
Installation requirement: Foundation recess approx. 300 mm
Workplace safety:
Traveling safety cabin on both gantries
Safety bumpers and safety light curtain system on operator side and rear
Additional equipment
Workpiece feed system: 1 belt conveyor with 4 belt strands (40 mm width each); each crossbeam with NC-controlled lifting device; stroke 110 mm (+10 / -100 mm)
Vacuum system: Bush vacuum pump type Mink MM 1322, suction capacity 250 m³/h, with 500-liter intermediate tank for rapid vacuum build-up
Chip handling: 2 chip conveyor belts under the machining area (for chips/small waste up to 100 x 100 x 100 mm)
Automatic central lubrication system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
