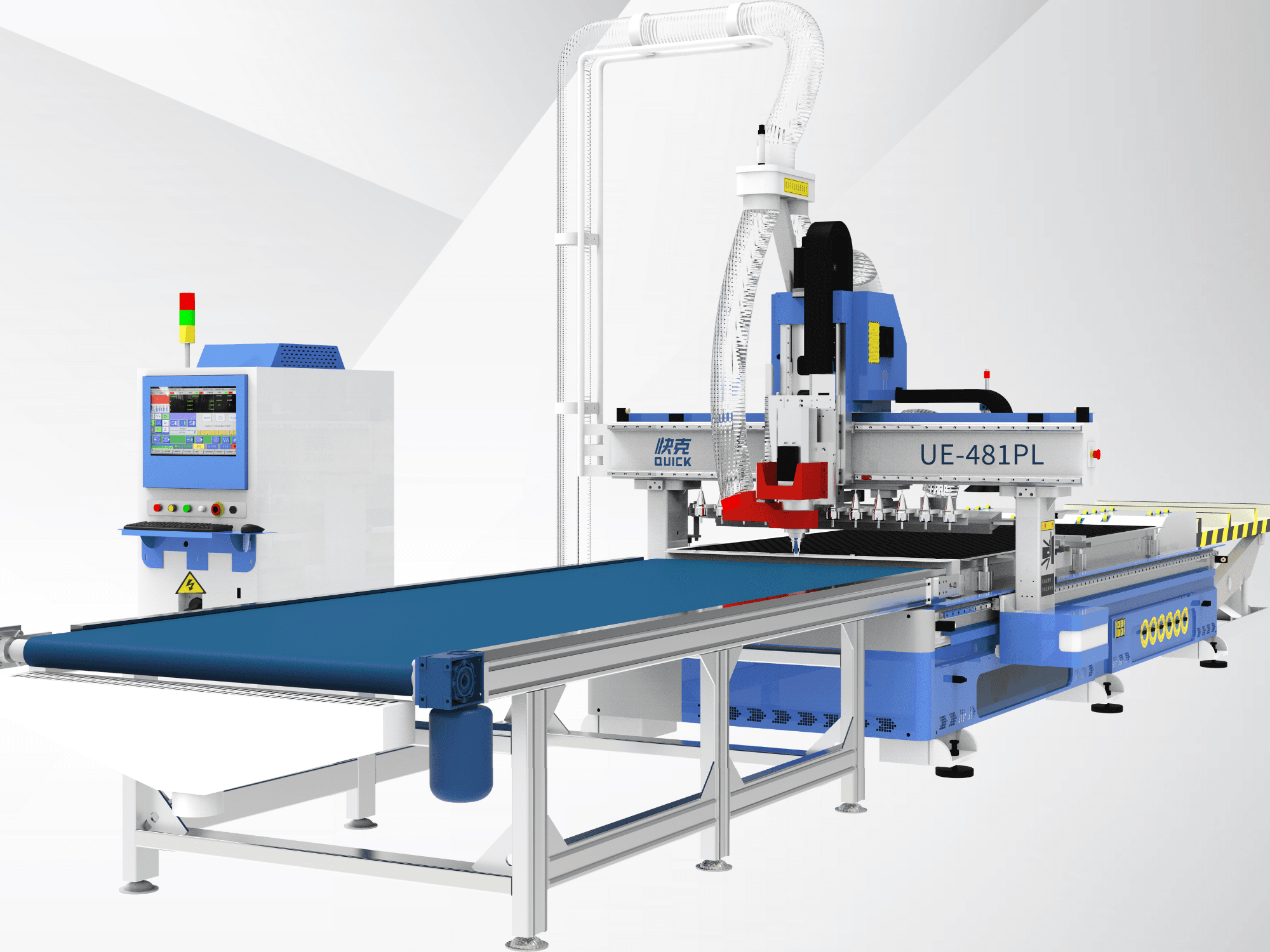

Blue Quick UE-481PL CNC machine with touch screen control, front view, featuring a conveyor belt and multiple cutting heads.
Blue Quick UE-481PL CNC machine with touch screen control, front view, featuring a conveyor belt and multiple cutting heads.

QUICK CNC - UE-481PLDE-CNC-QUI-2025-00002

Rs. 7,225,472
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis QUICK CNC UE-481PL was manufactured in 2025. It features a robust heavy-duty base, a large working area of 2100 x 3050 x 200 mm, and a 9 kW HSD milling spindle capable of 24,000 rpm. Additional highlights include a 12-fold linear changer, dual 250 m3/h Becker vacuum pumps, and a wireless control panel. If you are looking to get high-quality CNC machining capabilities, consider the QUICK CNC UE-481PL machine we have for sale. Contact us for more information.

Overview

  • brand: QUICK CNC
  • year: 2025
  • MODEL: UE-481PL
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Processing Center

Technical Information - QUICK CNC UE-481PL

Movement

  • Number of Axes: 3

Technical Specification

  • Spindle Power: 9 kW
  • Spindle Speed: 24000 RPM

Additional Information

  • Control: NC Studio software on PC with Windows 11

  • CAD-CAM connectivity: available (of your choice)

  • Machine base: heavy-duty

  • Working area: 2100 x 3050 x 200 mm

  • Table: double-layer phenolic resin grid table

  • Drilling unit: HSD 9-spindle

  • Sawing unit: 90° rotatable

  • Tool changer: 12-position linear

  • Tool measurement: automatic tool length measurement

  • Operator interface: wireless control panel

  • Workpiece stops: 3 in X, 2 in Y

  • Central lubrication: automatic

  • Spindle: HSD

Additional equipment

  • 2 x 250 m3/h Becker vacuum pumps

  • Safety via light barrier

  • Lift table for loading

  • Outfeed table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
