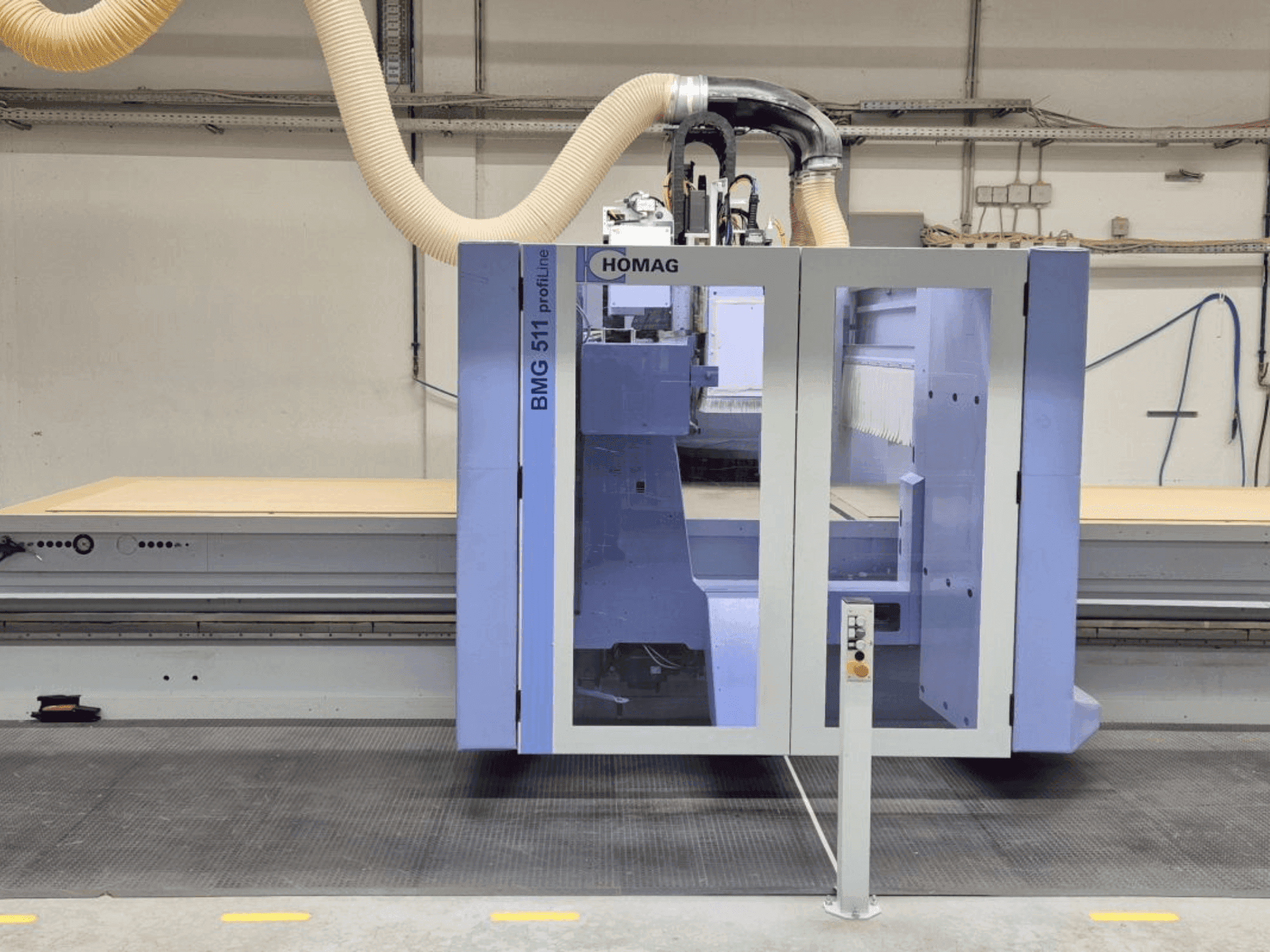

HOMAG - PROFI BMG 511/60/12/RDE-CNC-HOM-2015-00001

Working area: 6,000 x 1,550 mm

Workpiece parameters:

• Length (single setup): 6,000 mm

• Length (pendulum operation): 1,550–3,200 mm

• Width: max. 1,550 mm (with rear stop and milling cutter Ø25 mm)

• Workpiece thickness: up to 275 mm including clamping devices; up to 60 mm with standard clamping equipment

Speed Pack: X-axis maximum feed 80 m/min

X-axis speed: 80 m/min

Tooling:

• Tool transfer station on left side of machine bed

• Disc-type tool changer: 18 positions

  • Capacity options: 18 x Ø130 mm tools, or 9 x Ø180 mm + 9 x Ø70 mm tools

  • Max aggregate length: 320 mm

• No tools included

Main milling spindle:

• 12 kW (S6) / 9.5 kW (S1)

• Frequency-controlled 0–24,000 rpm

C-axis:

• With aggregate interface; unlimited swivel range

• Interface for FLEX-5 aggregate (aggregate not included)

Drilling head (30 spindles) – V20 / H10 / S360° “MPU”:

• C-axis ±185° for drilling/sawing at any angle

• 20 vertical high-speed spindles with quick-change

• Vertical spindle layout (U-shape): 3 rows with 11, 3, and 6 spindles, 32 mm spacing

• 10 horizontal spindles: 4 pairs at 32 mm spacing; 1 pair at 320 mm spacing

Grooving/separation saw: for blade diameters up to Ø200 mm

Table/base:

• Grid table with slotted aluminum profile

• Dynamic table area allocation (R-table): automatic part size check; vacuum zones permanently assigned to machining fields

Control/software:

• POWERCONTROL PC 86 POWERTOUCH

• 21.5" Full HD multi-touch display

• WoodWop graphical, dialog-based CNC programming

Vacuum: Supplied via customer-side vacuum system (no integrated vacuum pump)
