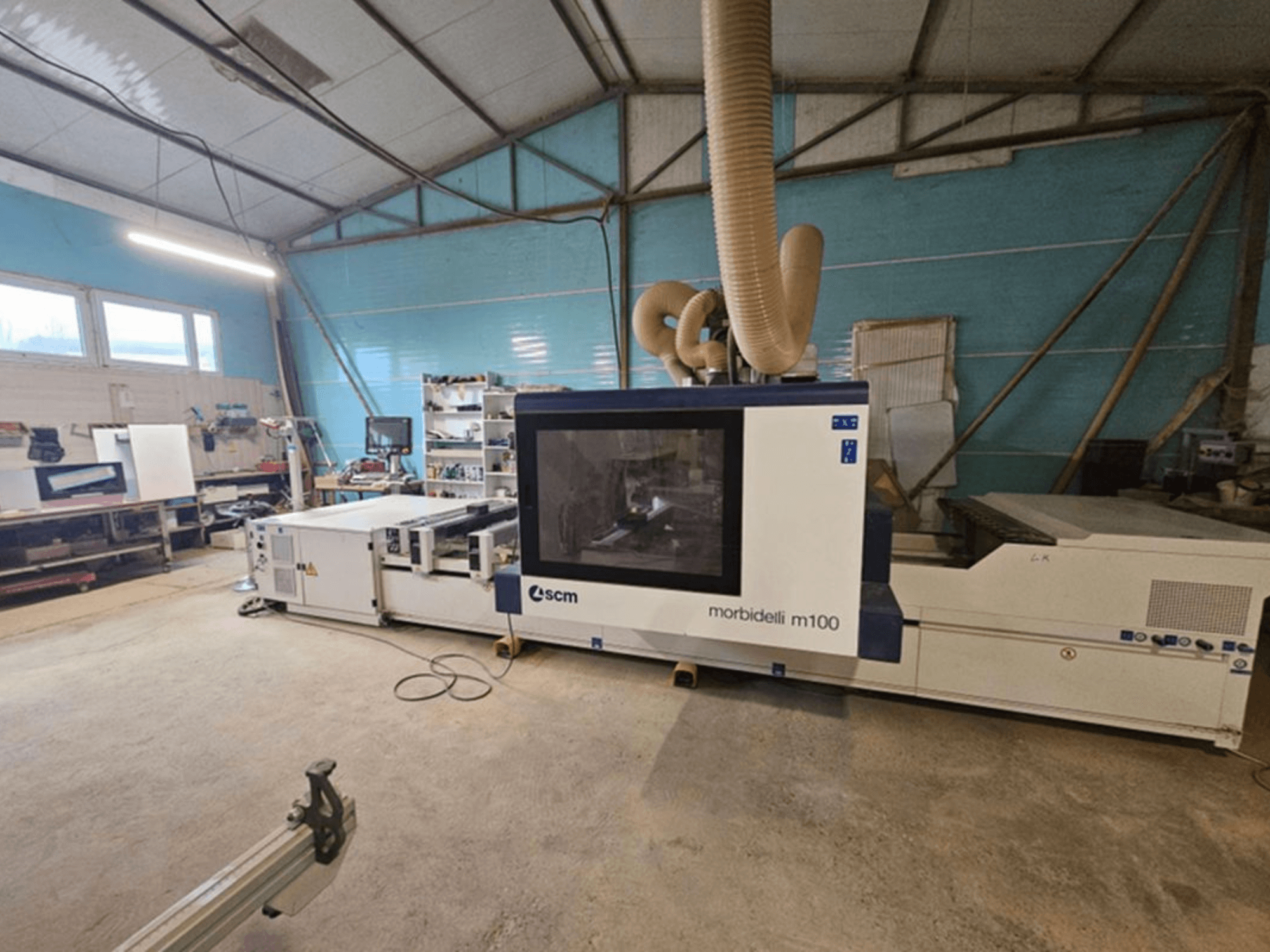

SCM - MORBIDELLI M 100RO-CNC-SCM-2019-00002

• Year/usage: Purchased 2019; approx. 2,000 operating hours

• Axes/capabilities: 3/4/5-axis machining; drilling (vertical and horizontal on 4 sides), routing/milling, grooving, edge machining; PRO-SPACE safety system

• Working area: X 3110 mm; Y 1620 mm; Z passage 180 mm; Y passage 1900 mm; pendulum length 1400 mm

• Worktable: TV FLEX 1600 worktable, 6 mobile bars/supports, 6 crossbars; standard bar positions 6–12; mobile bar length 1600 mm; 12 fixed vacuum cups (145 x 145 x 75 mm); prep for 6 pneumatic clamps; 4 pneumatic panel loading/support devices; 8 rear limiters; 8 intermediate limiters; left lateral reference + laser for shaped parts

• Structure/motion: Welded steel frame; linear guides with recirculating bearings; X by mobile bars, Y by gantry with rack & pinion both sides, Z by ball screw; CNC-managed positioning

• Speeds: Max XY vector speed (PRO-SPACE) 56 m/min; drilling spindles up to 8,000 rpm; electrospindle up to 24,000 rpm

• Drilling unit: F23L group with 13 vertical spindles (7R+6L), 10 horizontal spindles (4+3 in X, 2 in Y); integrated X-direction saw Ø125 mm, 2.2 kW; 75 mm pneumatic on/off stroke; inverter for programmable speed

• Main spindle: Hiteco JQX 5-axis electrospindle, HSK F63, liquid cooled, ceramic bearings; power class ~10 kW (S6 up to ~15 kW), 24,000 rpm

• Tool changers: Rear TRB 14 (14 positions; 350 mm stroke; 115 mm pitch; tools up to Ø240 mm; total 70 kg); Front FAST 14 (14 positions; tools up to Ø130 mm in selected pockets; max 8 kg/tool; total 24 kg)

• Control/software: Windows 7; 21.5" FHD display; keyboard/mouse + machine panel; Maestro CNC CAD/CAM (parametric/graphic programming, DXF import, ISO graphics, simulation); TECPAD 7" mobile touch pendant; remote control along machine

• Vacuum: Standard vacuum pump (machine standard); centralized automatic lubrication

• Utilities: Installed power 23 + 28.5 kVA; compressed air 450 NL/min; dust extraction requirement 4500 m³/h, 25 m/s, outlet Ø250 mm; centralized/optimized extraction with adjustable conveyor and grouped outlets

• Safety/standards: PRO-SPACE concept (no front photocells/side fences per offer), CE conformity, emergency stops and guarded areas as per EU norms

Additional equipment

• Additional vacuum pump: 1 x 90 m³/h

• Additional hardware key for Xilog/Maestro (USB)
