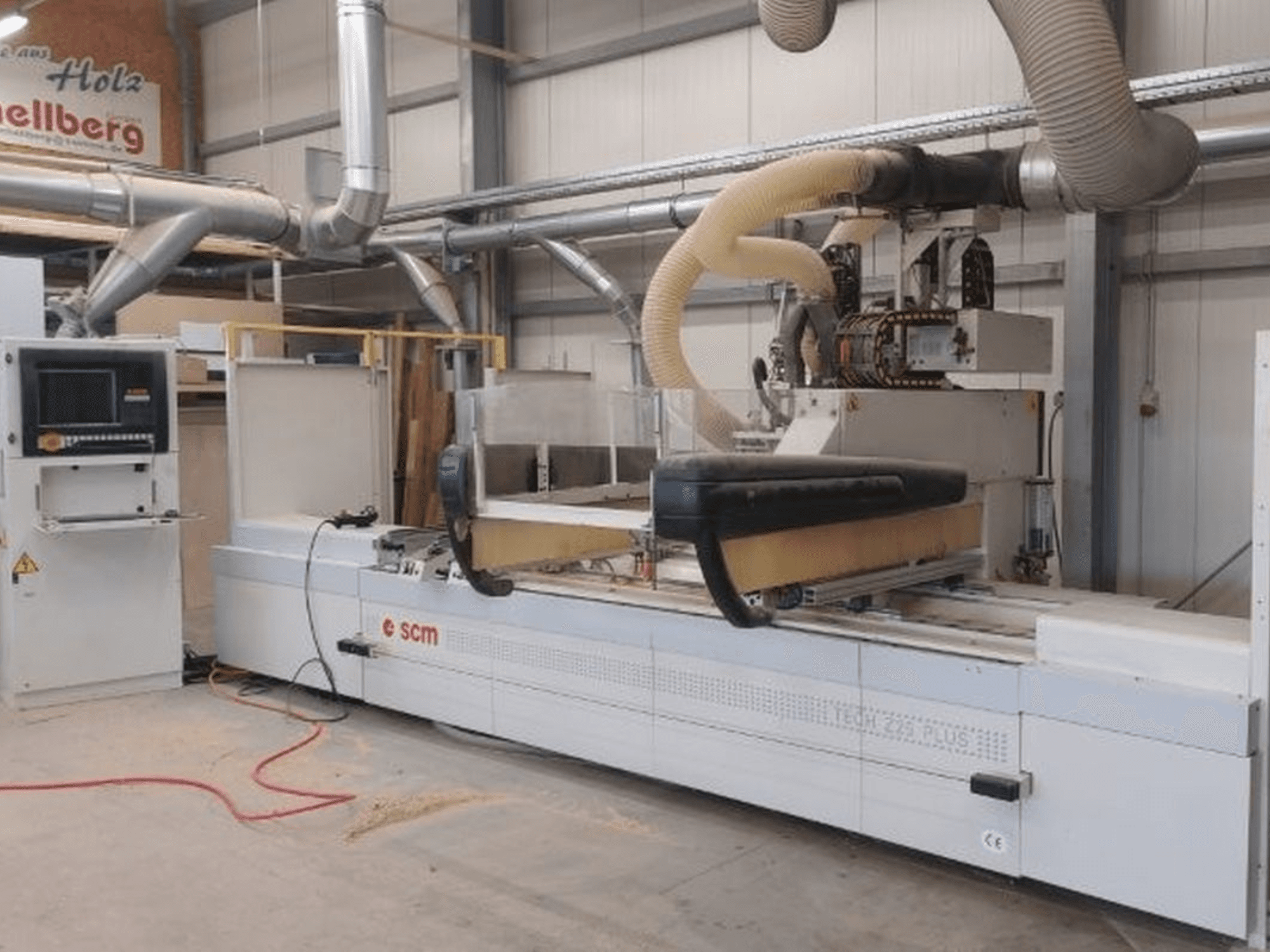

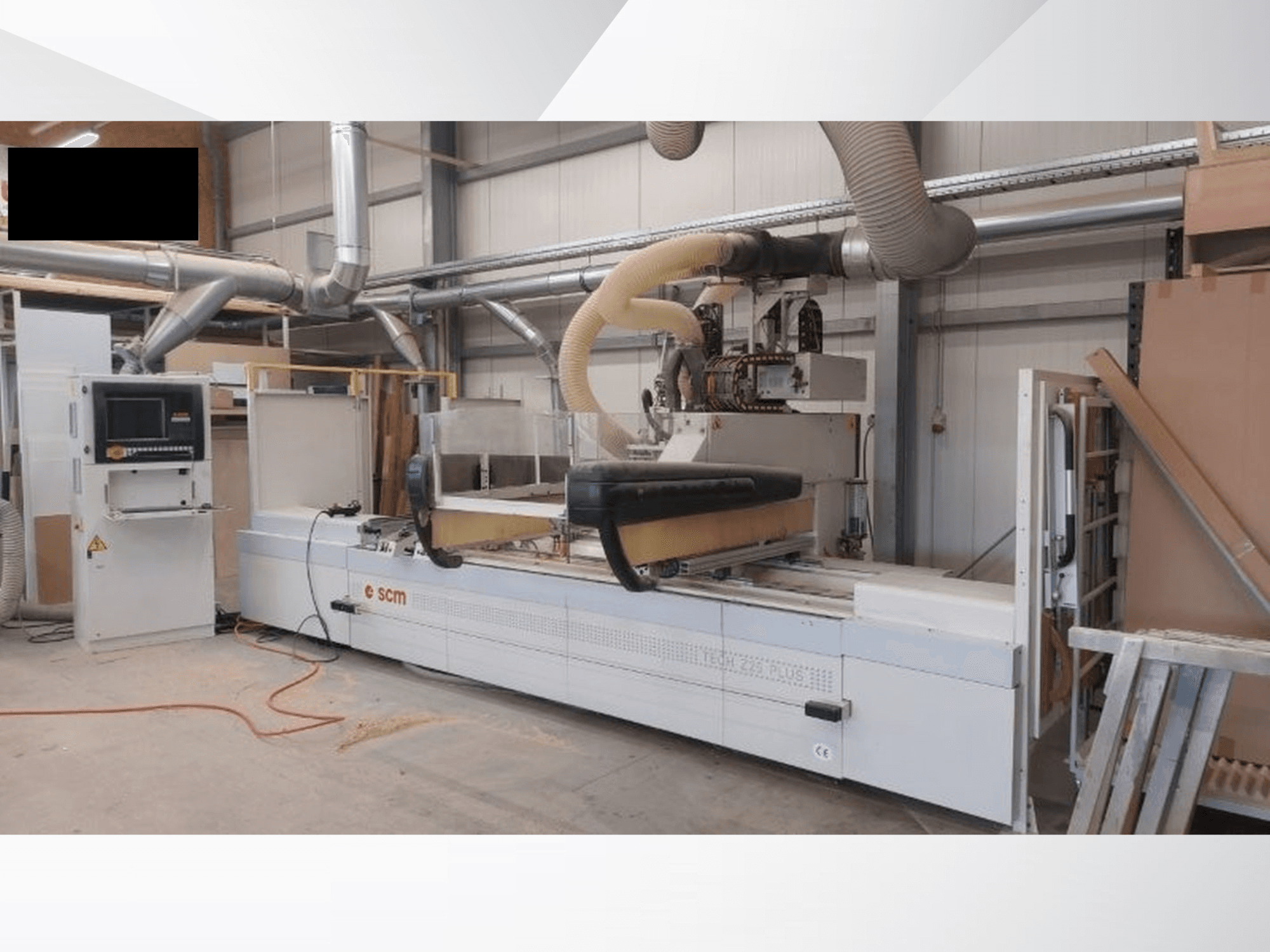

This 3-axis SCM TECH Z25 PLUS H-R4 was manufactured in 2005. It features a working area of 2500 x 1000 mm and a travel range of 2980 mm on the X-axis, 1280 mm on the Y-axis, and 200 mm on the Z-axis. The machine is equipped with 16 spindles operating at 4000 rpm and an electric spindle with a maximum speed of 18,000 rpm. If you are looking to get high-quality CNC processing capabilities, consider the SCM TECH Z25 PLUS H-R4 machine we have for sale. Contact us for further details.
Overview
- brand: SCM
- year: 2005
- MODEL: TECH Z25 PLUS H-R4
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Processing Center
Technical Information - SCM TECH Z25 PLUS H-R4
Dimensions
- Machine Height: 2680 mm
- Machine Length: 6970 mm
- Machine Weight: 3295 kg
- Machine Width: 3000 mm
Movement
- Number of Axes: 3
- X-axis Travel: 2980 mm
- Y-axis Travel: 1280 mm
- Z-axis Travel: 200 mm
Technical Specification
- Spindle Power: 6.6 kW
- Spindle Speed: 18000 RPM
Additional Information
Working area: 2500 x 1000 mm
Programmable speeds: X 25 m/min / Y 30 m/min / Z 22.5 m/min
Vector speed: 40 m/min
Drilling unit: 16 spindles, 4000 rpm, 2.2 kW (10 vertical + 6 horizontal)
Main spindle: HSK-63
Tool magazine: Side magazine, 7 positions
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
