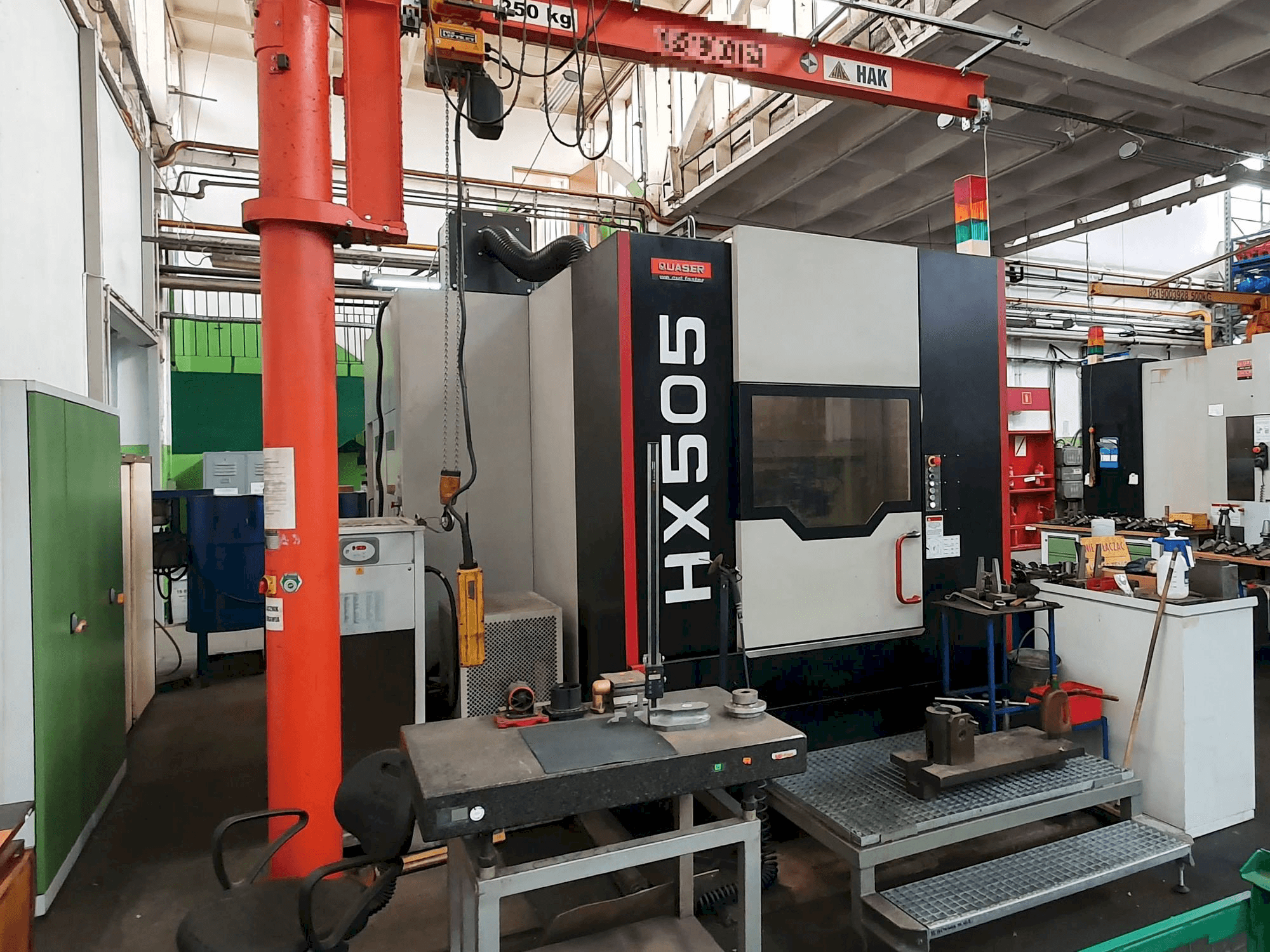

Quaser HX505 AP / 6B Horizontal Machining Center

Show in original language

This Quaser HX505 AP / 6B Horizontal Machining Center was built in Taiwan in the year 2014. It has a working record of 10328 production hours. It is operated with a FANUC Series 31i-B control unit. This machine can work with a spindle speed up to 6000 rpm.

Overview

brand: Quaser
year: 2014
MODEL: HX505 AP / 6B
production hours: 10328
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Quaser HX505 AP / 6B

Control Unit

Control Brand: FANUC
Control Model: Series 31i-B

Dimensions

Machine Depth: 4835 mm
Machine Height: 3030 mm
Machine Weight: 13500 kg
Table Length: 500 mm
Table Load: 500 kg
Table Width: 500 mm

Movement

X-axis Travel: 762 mm
Y-axis Travel: 640 mm
Z-axis Travel: 840 mm

Technical Specification

Spindle Power: 27 kW
Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Full service documentation

Technical Machine Benefits

Table index (º)1 (ops. 0,001)
Max. Workpiece (mm)Ø800xh900
Team magazine capacity (pieces)30 (opt. 40)

Machine History

Industries

Automotive industry

End product

Production of many spare parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
