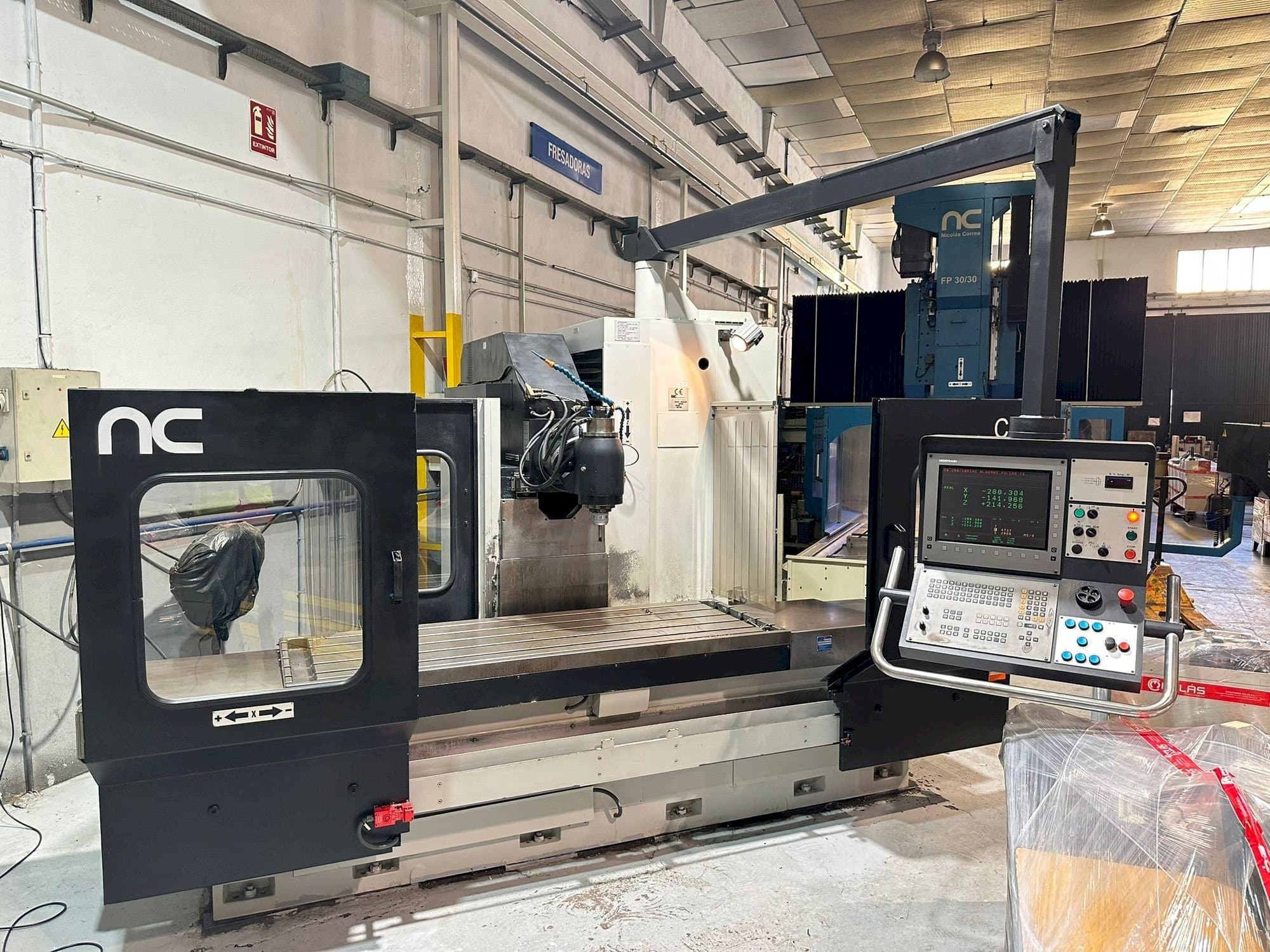

Front view of Nicolas Correa CF 17 D  machine

Nicolas Correa - CF 17 DES-MIL-NIC-2000-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This NICOLAS CORREA CF 17 D Bed Type Milling machine was manufactured in the year 2000 and has 28838 production hours. It is equipped with a HEIDENHAIN TNC-410 control unit and has 3 axis. The machine has a spindle speed of 20-3000 rpm.

Overview

  • brand: Nicolas Correa
  • year: 2000
  • MODEL: CF 17 D
  • production hours: 28838
  • application type: Milling
  • Location: Spain
  • machine type: Gantry Milling Machine
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - Nicolas Correa CF 17 D

General Data

  • Measurements width: 3700 mm
  • Measurements depth: 2400 mm
  • Measurements height: 2700 mm
  • Machine weight: 9000 kg

Control Unit

  • Model: TNC-410
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 20 – 3000 1/MIN
  • Spindle motor power: 17 kW
  • Tool taper: ISO 50
  • Number of axis: 3

Movement

  • X-AXIS Movement: 2000 mm
  • X-AXIS Rapid traverse: 12.000 mm/min
  • Y-AXIS Movement: 800 mm
  • Y-AXIS Rapid traverse: 12.000 mm/min
  • Z-AXIS Movement: 800 mm
  • Z-AXIS Rapid traverse: 12.000 mm/min

Table

  • Outer length: 2000 mm
  • Outer width: 700 mm
  • Table load: 3500 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Head power: 17 kw
      • - Hydraulic clamping tool
      • - Large qty of tools & accessories:
      • - Total power: 24 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
