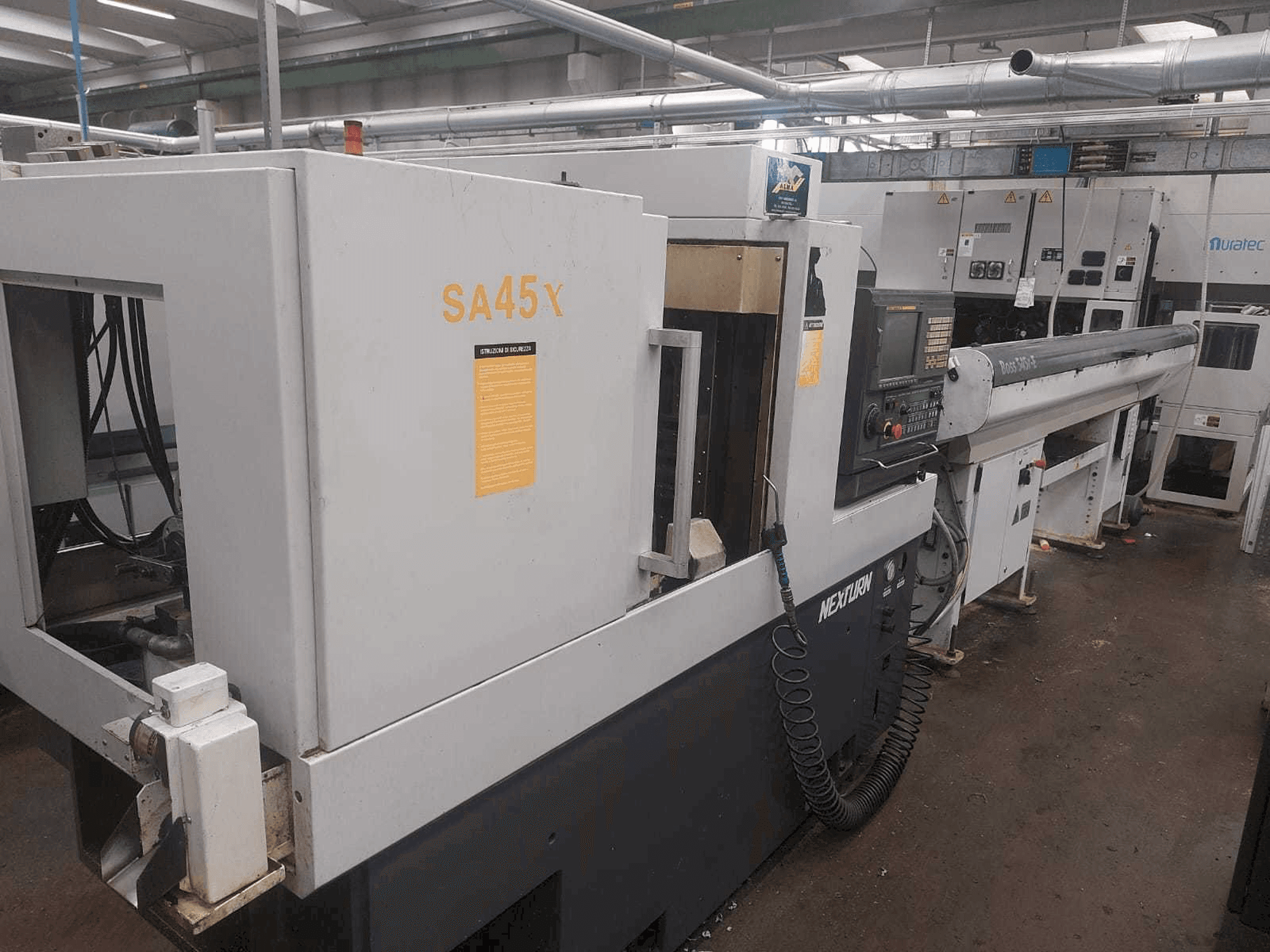

Left side view of Nexturn SA 45X  machine

Nexturn - SA 45XIT-TUR-NEX-2009-00001

Rs. 4,655,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Nexturn SA 45X Swiss Type Turning machine was made in the year 2009 and has 24238 hours, of which 10267 are cutting hours. It is equipped with a Fanuc Series 18i-TB control unit and has 6 linear axes. The machine has a spindle speed of 6000 rpm. It includes a Barfeeder Iemca Boss 545.

Overview

  • brand: Nexturn
  • year: 2009
  • MODEL: SA 45X
  • production hours: 24238
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Nexturn SA 45X

General Data

  • Measurements width: 2200 mm
  • Measurements depth: 1460 mm
  • Measurements height: 1750 mm
  • Machine weight: 3800 kg

Control Unit

  • Brand: Fanuc
  • Model: Serie 18i-tb

Main drive

  • Spindle speed range: 6000 1/MIN
  • Spindle motor power: 11 Kw
  • Number of axis: 6

Movement

  • X-AXIS Movement: 135 mm
  • Y-AXIS Movement: 260 mm

    Additional equipment

    • - Bar feeder Iemca Boss 545

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle bar diameter 45 mm
        • - Sliding headstock travel (z1) 80 mm
        • - Fixed sliding headstock yes
        • - Number of linear axes 6
        • - Number of fixed tools tool holder plate 10
        • - Number of driven tools tool holder plate 5
        • - High coolant pressure yes
        • - Sub spindle rpm 6000, bar diameter 45 mm, x-axis travel sub spindle 180 mm, z-axis travel sub spindle 228 mm
        • - Number of back driven tool posts 4
        • - Y-axis travel 220
      • Qualitative Machine Benefits:
        • - Coolant used whole oil
        • - Cheap conveyor hinged belt

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
