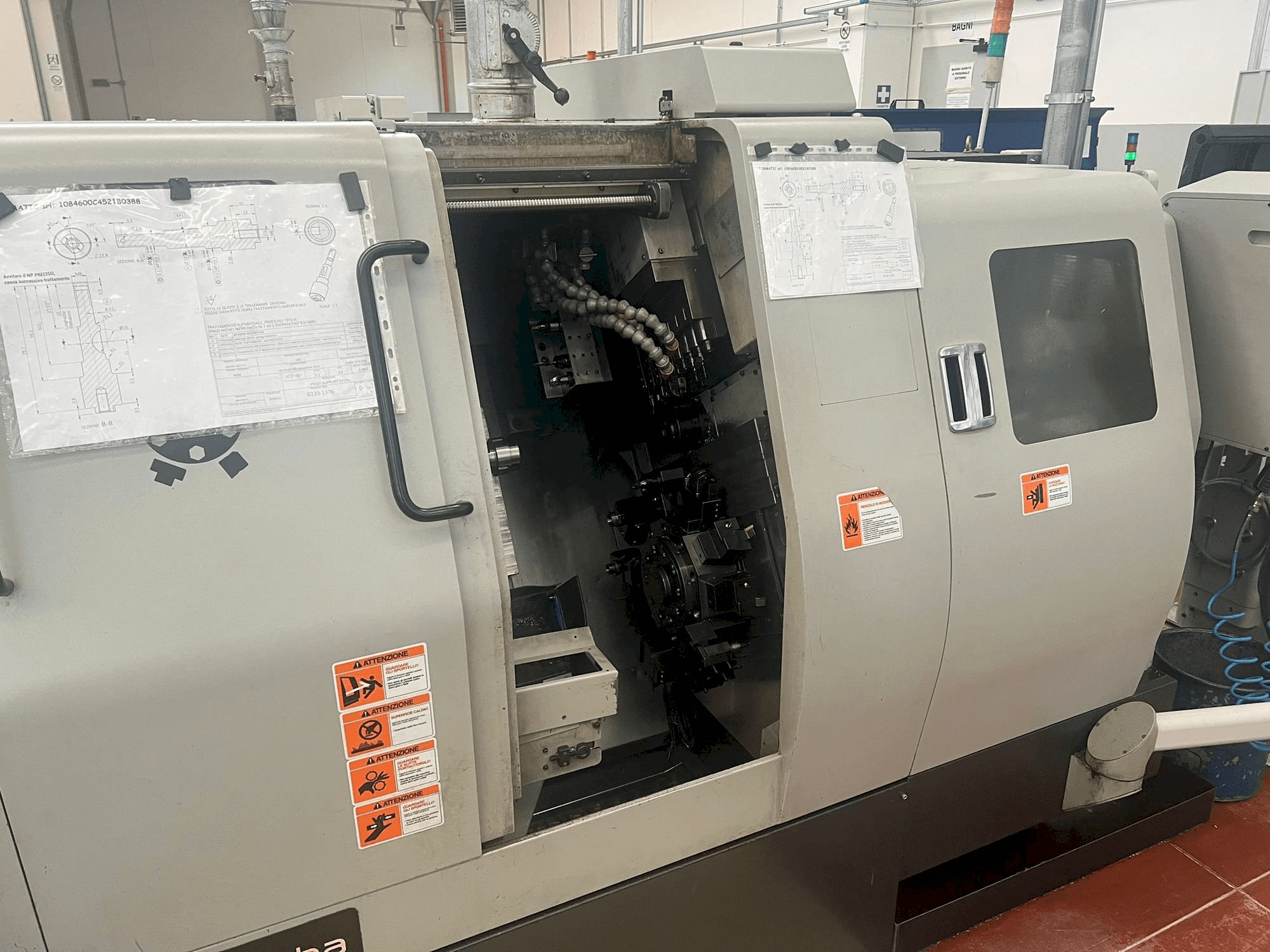

Front view of Hanwha STL 38 H  machine

Hanwha STL 38 H

Hanwha - STL 38 H


Rs. 7,230,250

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This Hanwha STL 38 H Lathe was manufactured in the year 2014. It is equipped with a SIEMENS 840 D control unit. The machine has a spindle speed of 8000 rpm.


  • brand: Hanwha
  • year: 2014
  • MODEL: STL 38 H
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: SIEMENS
  • GINDUMAC ID: IT-TUR-HAN-2014-00001

Technical Information

Control Unit

  • Brand: SIEMENS
  • Model: 840 D

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 11 Kw


  • X-AXIS Movement: 140 mm

Additional Information

    Extra information

    • - Siemens CNC model Version of the 840 D CNC Main spindle power 11 Kw Main spindle bar passage 38 mm Headstock stroke (Z1) 320 mm Number of revolutions of the main spindle 8000 Number of linear axes 8 Number of fixed tool places on the tool holder plate 5 Number of motorized tool places on the tool holder plate 4 High refrigerant pressure yes Number of tool turrets/slides 1 Number of tool places first turret/slide 10 Number of motorized first turret/slide 10 Type of tool attachment first turret/slide VDI 30 First turret/slide X-axis travel 140 mm Y axis travel first turret/slide + - 50 mm Counter spindle yes Number of counter spindle revolutions 8000 Power against spindle 11 Kw Bar passage 38 mm Counter spindle Z stroke 320 mm Number of fixed rear tools 4 Coolant used neat oil Model and brand of TOP bar loader model Record - S Belt chip conveyor Number of powered tool holders supplied 9

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
