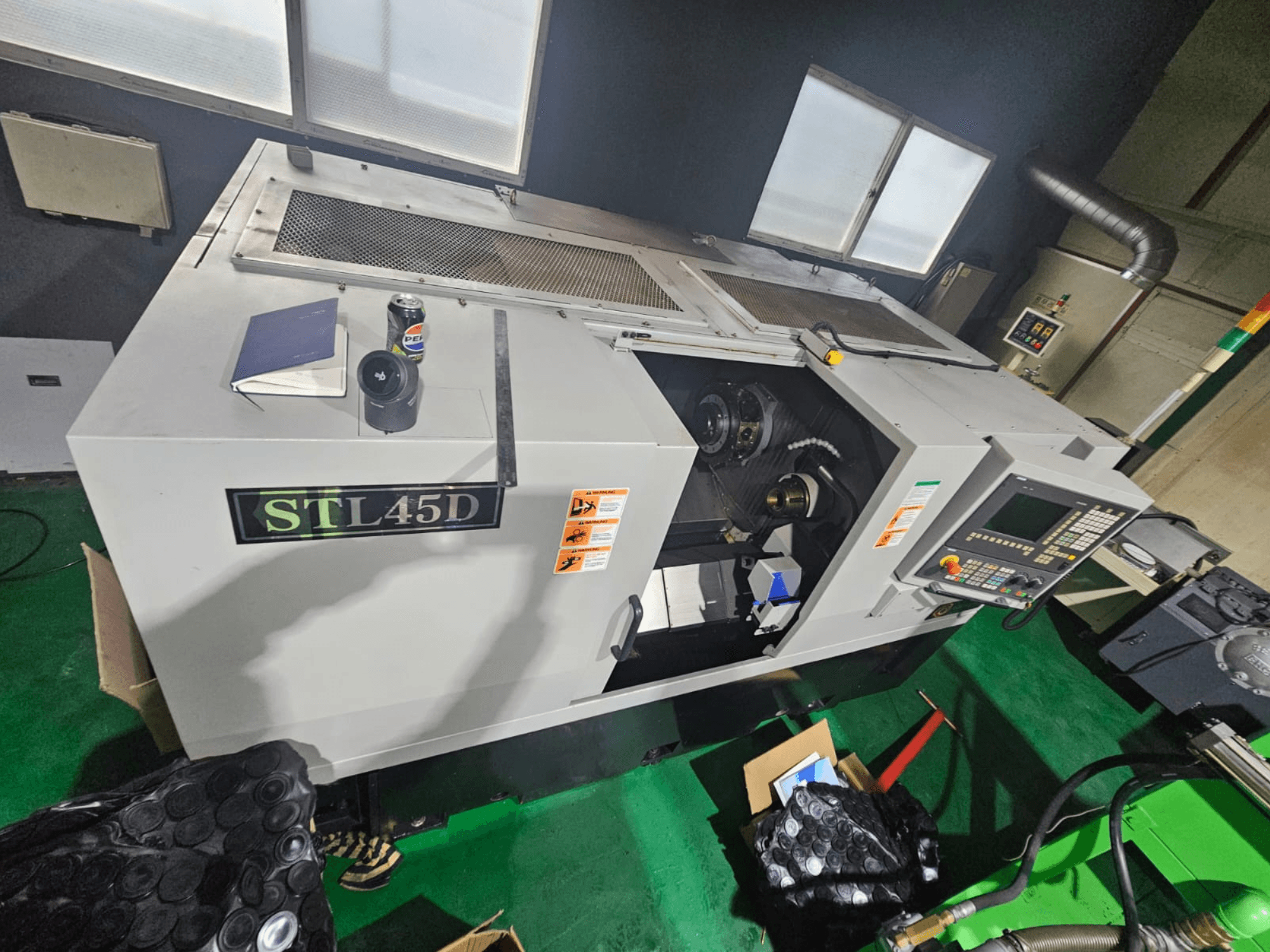

This Hanwha STL45D was manufactured in 2011. It features a Siemens 840D control system, with main and sub spindles capable of 6,000 rpm and 5,000 rpm respectively. It supports a max turning diameter of Ø45 mm and includes 12 tool stations on both turrets. Additional features include a chip conveyor, product conveyor, and hydraulic brakes on both spindles. If you are looking to get high quality turning capabilities consider the Hanwha STL45D machine we have for sale. Contact us for more information.
Overview
- brand: Hanwha
- year: 2011
- MODEL: STL45D
- application type: Turning
- Location: South Korea
- machine type: Swiss Type Turning Machine
- control unit brand: SIEMENS
Technical Information - Hanwha STL45D
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D (NC)
Dimensions
- Machine Weight: 6200 kg
Technical Specification
- Spindle Power: 9 kW
- Spindle Speed: 6000 RPM
Additional Information
Capacity:
Max turning diameter (main spindle): Ø45 mm
Max chucking diameter (sub spindle): Ø45 mm
Strokes:
Z1/Z2: 250 mm (Fix GB)
Z2/Y2/X2: 185 mm
Z3/Y3/X3: 80 mm
Zs: 726 mm
Sub spindle: 5,000 rpm; 5.5 kW
Turrets (main/sub, driven tool): 6,000 rpm; 2.2 kW; 12 stations (main) + 12 stations (sub)
Driven tool capability: max drilling Ø12 mm; max tapping M8; max milling Ø12 mm
Main turret (fixed tool): max drilling Ø18 mm; max tapping M18; max milling Ø18 mm
Sub turret (fixed tool): max drilling Ø12 mm; max tapping M12; max milling Ø12 mm
General:
Power consumption (cable size): 20 kVA (min 5 SQ)
Air flow rate: 20–30 L/min
Additional equipment
Standard: chip conveyor; product conveyor; MPG (4-axis) handwheel
Optional: bar feeder; foot switch; M-code air blow; 3-jaw power chuck; gantry loader; oil skimmer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
