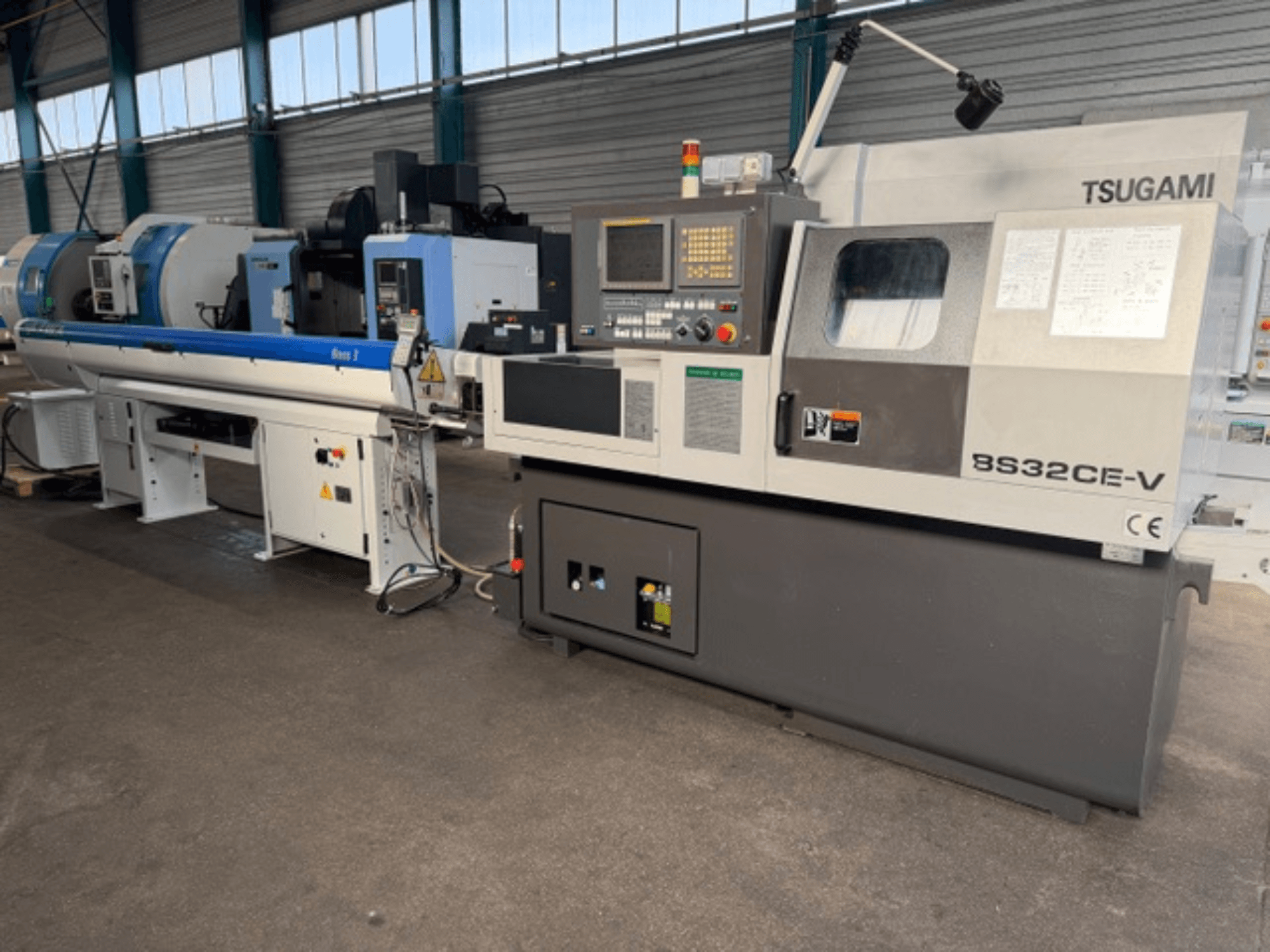

This 7-axis TSUGAMI BS32CE-V was manufactured in 2008. It features a maximum turning diameter of 32 mm and a turning length of 250 mm. The machine is equipped with two spindles, offering main spindle speeds of 200 – 7000 rpm and sub-spindle speeds of 200 – 6000 rpm. If you are looking to get high-quality turning capabilities, consider the TSUGAMI BS32CE-V swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: TSUGAMI
- year: 2008
- MODEL: BS32CE-V
- application type: Turning
- Location: France
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - TSUGAMI BS32CE-V
Control Unit
- Control Brand: FANUC
- Control Model: 18i-TB
Dimensions
- Machine Weight: 2900 kg
Movement
- Number of Axes: 7
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 7000 RPM
Additional Information
Condition: Very good; low number of hours
Power-on hours: 28,538
Spindle hours: 9,190
Number of spindles: 2
Max turning diameter: 32 mm
Max turning length: 250 mm
Max drilling diameter: 12 mm
Max threading diameter: M10
Sub-spindle speed: 200–6000 rpm
Sub-spindle motor power: 2.2 kW
C-axis: 360,000°
Spindle nose: for F37 collet
Tooling/Stations:
Number of stations: 4
Number of tools: 20
Number of live tools: 5
Turning tools: 5
Drilling tools: 6
Cross machining tools: 4
Live tool speed: 200–5000 rpm
Live tool power: 0.9 kW
Working feed: 1–6000 mm/min
Rapid feed: 20 m/min
Dimensions (machine, without bar feeder): 2150 × 1500 × 1800 mm
Additional equipment
Bar feeder: IEMCA BOSS 332L
Chip conveyor
Parts catcher
Short part ejector
Bar puller
Work light
Set of collets
Serial port interface RS232
3-color status light
Documentation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
