- ➤ Used TORNOS Delta 20/5 For Sale | gindumac.com

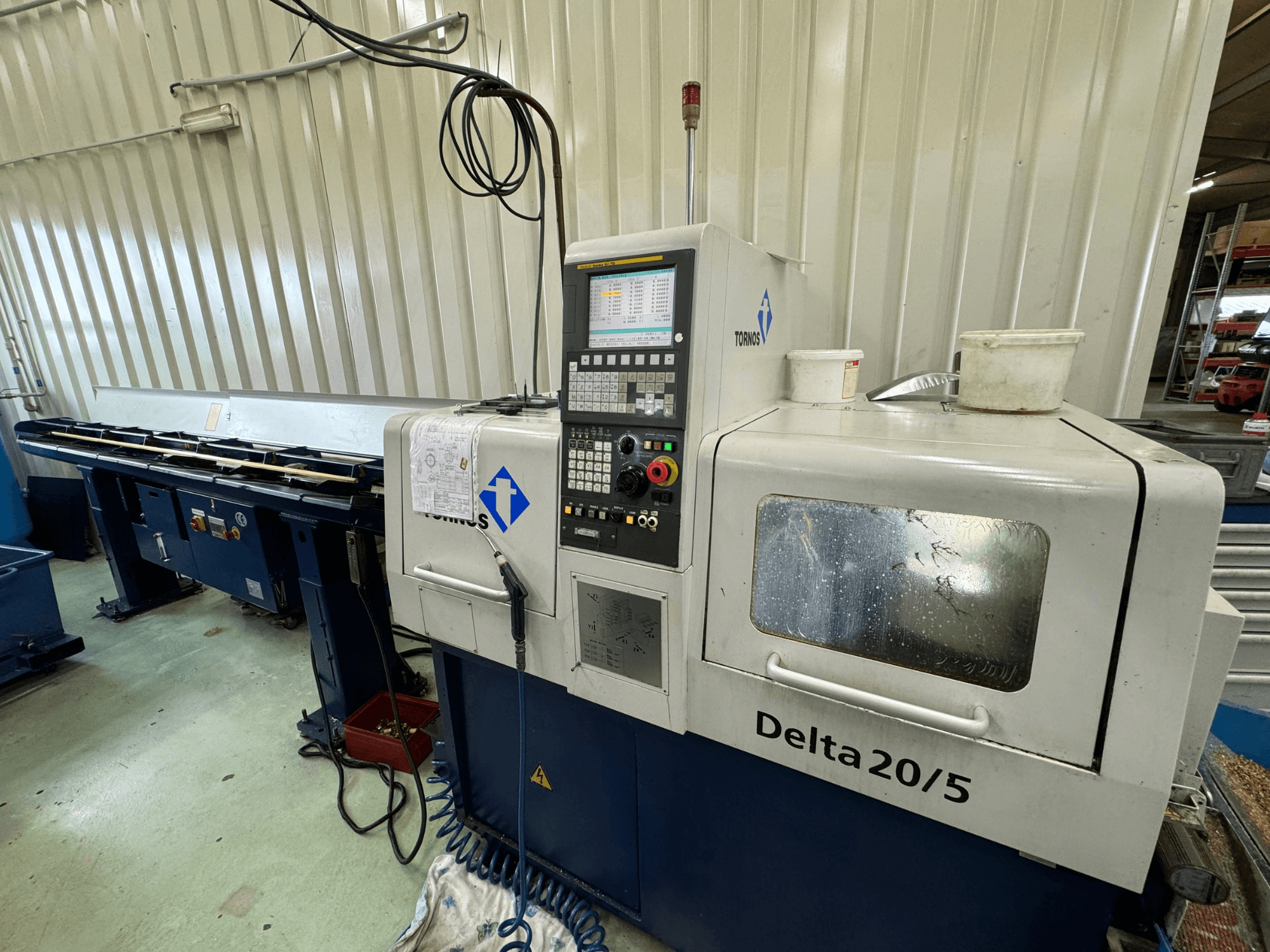

This 5-axis TORNOS Delta 20/5 was manufactured in 2008. It features dual spindles, each capable of handling bars up to 20 mm in diameter and 170 mm in length, with speeds up to 10,000 rpm. Powered by a Fanuc Series Oi-TD CNC and equipped with a Robobar barfeed magazine, this swiss type turning machine is ideal for precision work. Contact us for more information about this machine.
Overview
- brand: TORNOS
- year: 2008
- MODEL: Delta 20/5
- application type: Turning
- Location: Czech Republic
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - TORNOS Delta 20/5
Control Unit
- Control Brand: FANUC
- Control Model: Series Oi-TD
Movement
- Number of Axes: 5
Technical Specification
- Spindle Power: 3.7 kW
- Spindle Speed: 10000 RPM
Additional Information
Number of spindles: 2
Main spindle:
Max. bar diameter: 20 mm
Max. machinable length: 170 mm
Driven guide bush
Counter spindle:
Max. bar diameter: 20 mm
Spindle speed: 10,000 rpm
Spindle drive power: 2.2 kW
Additional equipment
Barfeed magazine: Robobar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
