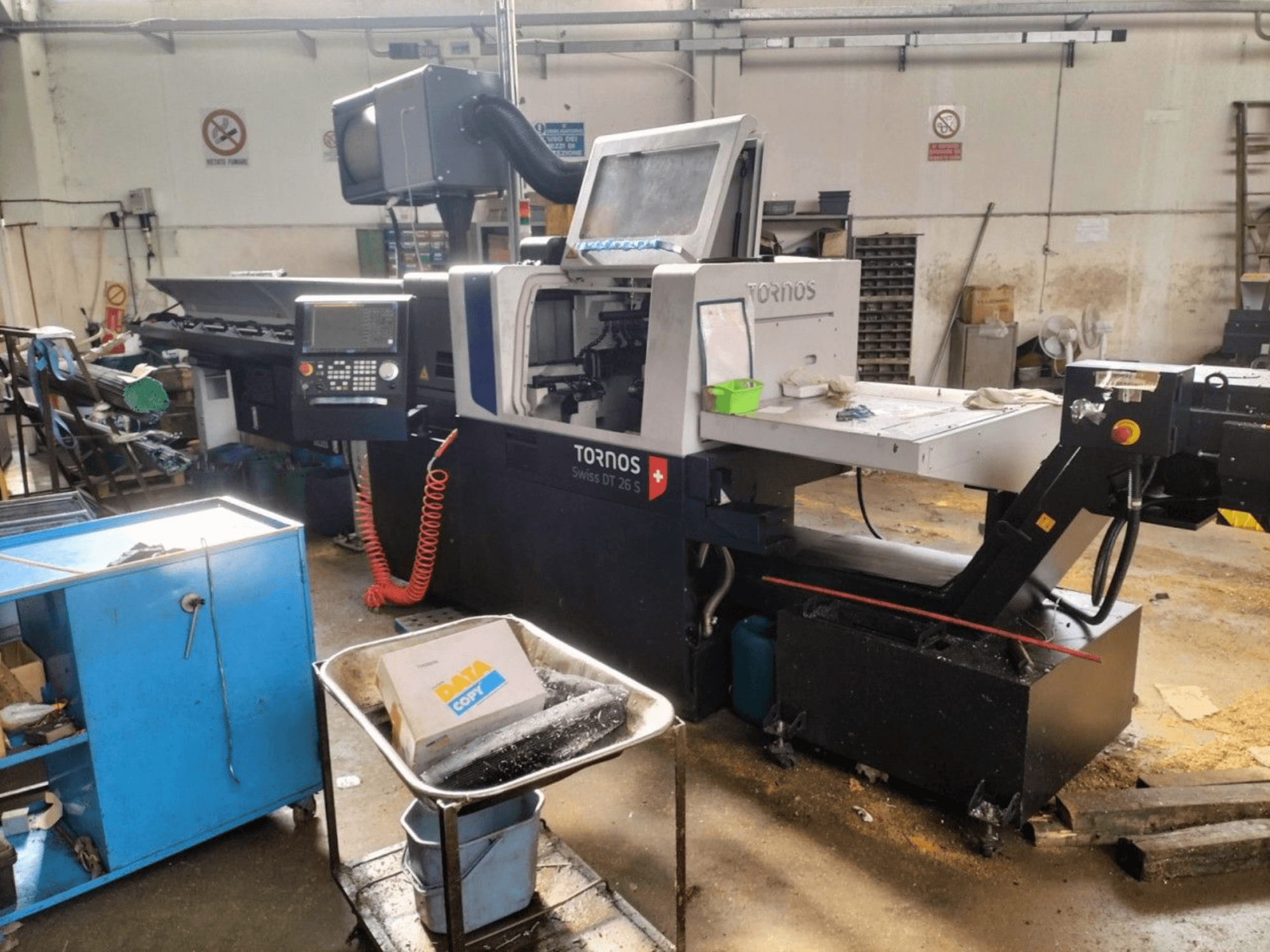

TORNOS - Swiss DT 26 SIT-TUR-TOR-2022-00001

• Max bar capacity: 25.4 mm (up to 26 mm depending on collets)

• Main spindle (Z1): 10,000 rpm; 8.2 kW nominal / 10.5 kW peak; 26 Nm; liquid-cooled

• Counter-spindle (X4/Z4): 10,000 rpm; 1.5 kW nominal / 2.2 kW peak

• Linear axes: 5 (X1, Y1, Z1, X4, Z4)

• C-axes: 2 (C1 on main spindle, C4 on counter-spindle)

• Operation mode: With or without guide bush (direct drive guide bush)

• Total tool capacity: up to 22 tools

• Live (driven) tool positions: up to 8

• Electrical connection: 400 V, 3-phase, 50/60 Hz

• Installed power: 24 kVA

• Nominal current: 35 A

• Fuse rating: 50 A

• Auxiliary voltage: 24 V DC

• Control voltage: 220 V

Additional equipment

• Bar feeder: Tornos Robobar SBF 326

  • Bar diameter range: 3–26 mm

  • Guidance: Hydrodynamic oil-filled guide channels

  • Interface: Delta HMI touch screen independent control panel

  • Quick change: Tool-less replacement of pusher and guide bushings

• Chip conveyor: Ring Sun RSCW50

  • Model: RSCW50; Serial: TA39614110

  • Motor power: 0.2 kW

  • Operating voltage: 400 V, 50/60 Hz

  • Weight: 313 kg

  • YOM: 2022-06

• Mist extraction/filtration: Micronfilter Kube Series oil mist collector (mounted on top-left bracket system)
