This 5-axis Hanwha XD20 COMBINED was manufactured in 2013. It features a maximum rotation speed of 10,000 rpm and a maximum working diameter of Ø20 mm. The machine operates at a rated voltage of 220–240 / 380–415 VAC and has a weight of 2,500 kg. If you are looking to get high-quality turning capabilities, consider the Hanwha XD20 COMBINED swiss type turning machine we have for sale. Contact us for further details.
Overview
- brand: Hanwha
- year: 2013
- MODEL: XD20 COMBINED
- production hours: 37745
- application type: Turning
- Location: Switzerland
- machine type: Swiss Type Turning Machine
Technical Information - Hanwha XD20 COMBINED
Dimensions
- Machine Height: 1671 mm
- Machine Length: 2291 mm
- Machine Weight: 2500 kg
- Machine Width: 1263 mm
Movement
- Number of Axes: 5
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 20 mm
- Spindle Speed: 10000 RPM
Additional Information

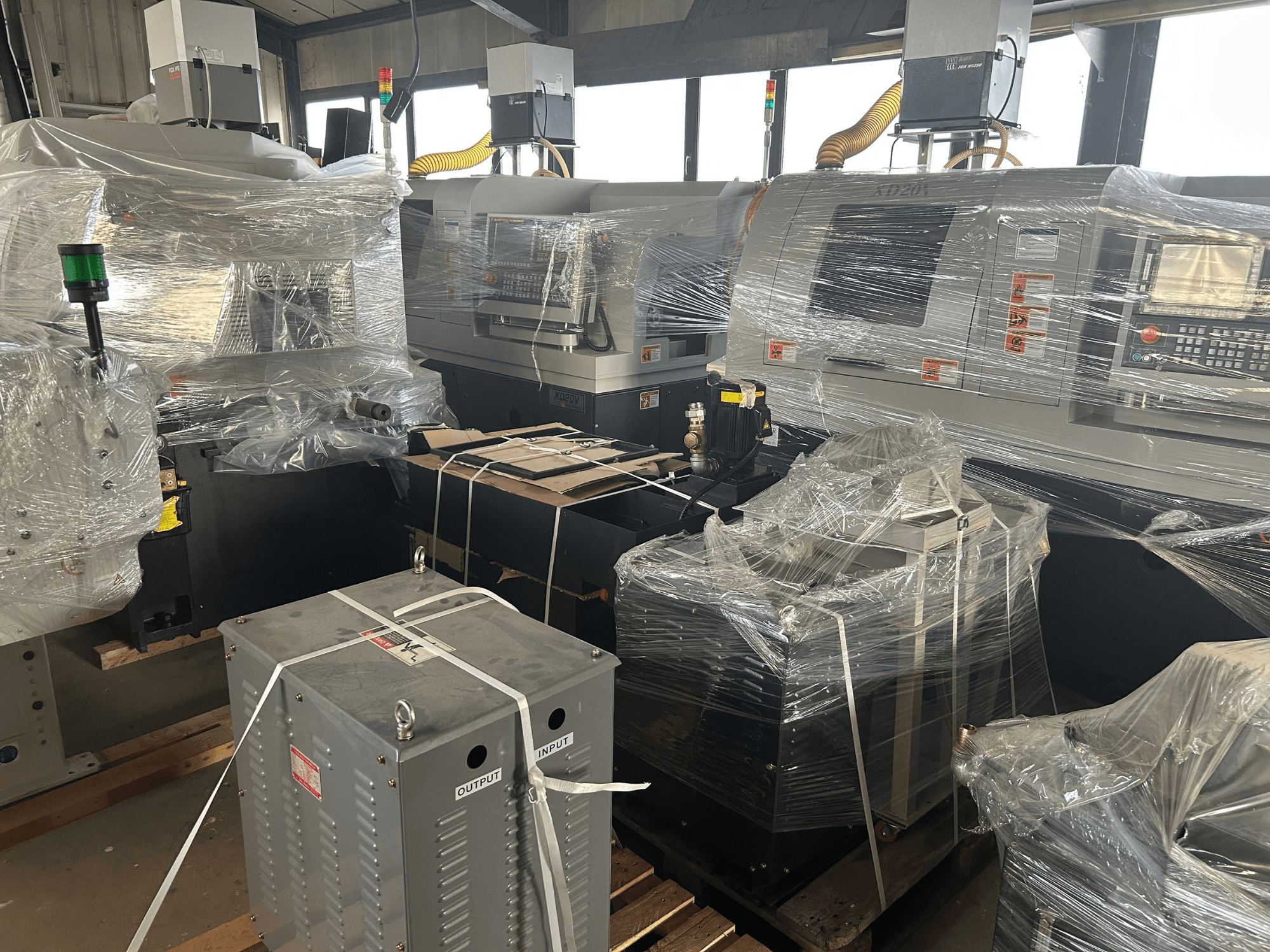

HANWHA XD20
2 Units Available
Rated Voltage: 3 Phases, 200/220 VAC
Rated Current: 60 A
Rated Frequency: 50/60 Hz
Ampere Interruption Capacity: 10 kA
Short Circuit Current Rating: 2.5 kA
Operation Air Pressure: 4–6 kg/cm² (3.9–5.9 bar)
Machining Hours (TEMPS USIN.): 37,745 h 24 m 26 s
BAR FEEDER – IEMCA ELITE 220 R 32 LL
not included, optional
Manufacturer: IEMCA
Model: Elite 220 R
Type: 32 LL
Year: 2014
Air Pressure: 6 bar
Voltage: 200 V
Phases: 3
Frequency: 50 Hz
Current: 8.1 A
Interrupting Capacity: 5 kA
Weight: 660 kg
HANWHA XD20H
Rated Voltage: 3 Phases, 220–240 / 380–415 VAC
Rated Current: 60 A
Rated Frequency: 50/60 Hz
Ampere Interruption Capacity: 10 kA
Max Rotation Speed: 10,000 rpm
Axis Control: 5 Axis
Operation Air Pressure: 4–6 kg/cm² (3.9–5.9 bar)
Max Working Diameter: Ø20 mm
Dimensions (L × W × H): 2258 × 1304 × 1758 mm
Weight: 3300 kg
Machining Hours (TEMPS USIN.): 43,977 h 52 m 57 s
BAR FEEDER – IEMCA ELITE 220 R 32 LL
not included, optional
Manufacturer: IEMCA
Model: Elite 220 R
Type: 32 LL
Year: 2013
Air Pressure: 6 bar
Voltage: 200 V
Phases: 3
Frequency: 50 Hz
Current: 8.1 A
Interrupting Capacity: 5 kA
Weight: 630 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
