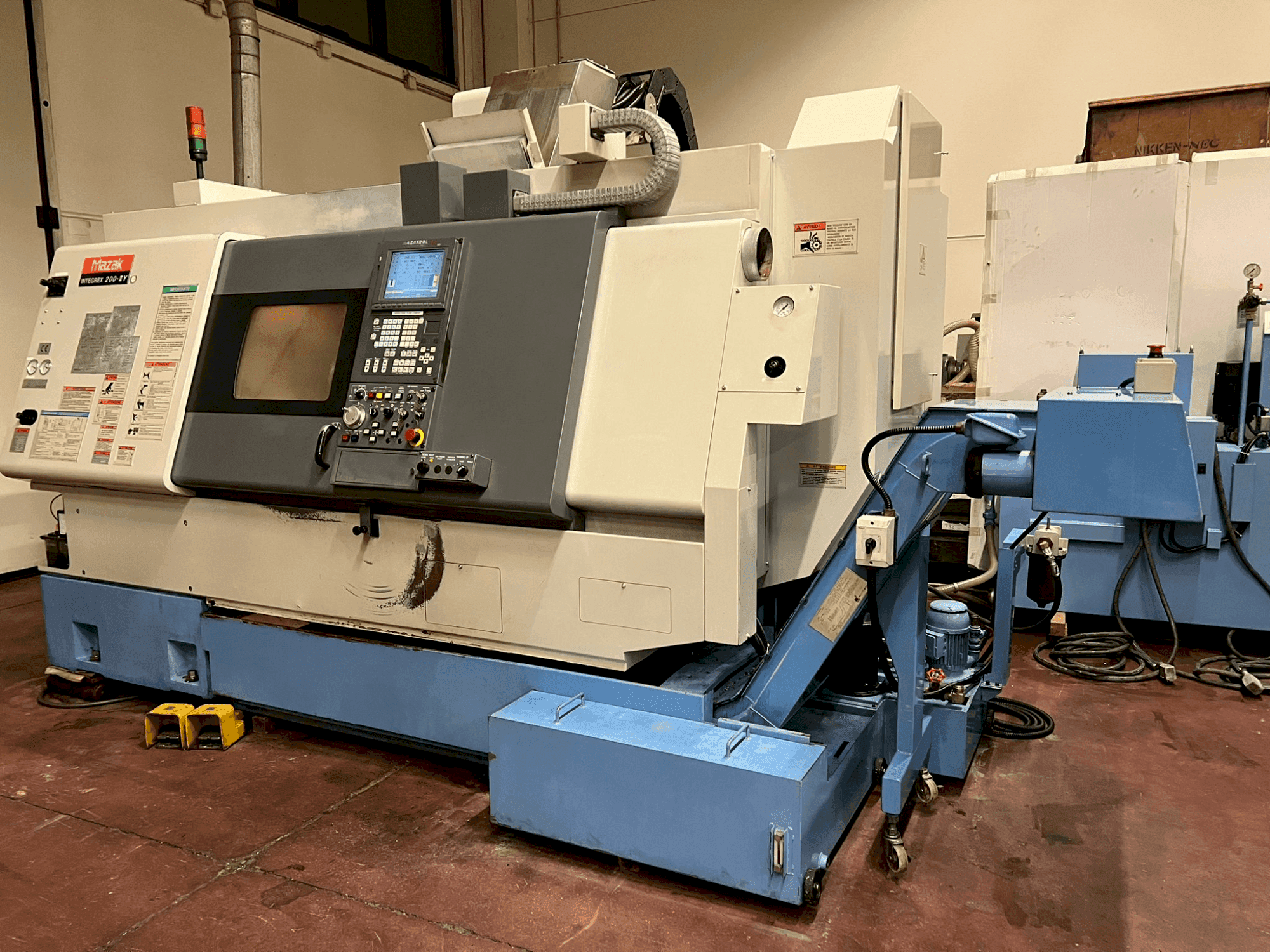

Front view of Mazak Integrex 200 IIY  machine

Mazak - Integrex 200 IIYIT-TUR-MAZ-2001-00004

Rs. 4,456,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Mazak Integrex 200 IIY horizontal turning machine was manufactured in 2001. It features a spindle power of 22 kW, a turning diameter of 350 mm, and a bar passage of 65 mm. The machine supports 5-axis continuous machining, has a tool capacity of 36 with a CAPTO C6 attachment, and includes high-pressure coolant at 15 bar. If you are looking to get high-quality turning capabilities, consider the Mazak Integrex 200 IIY machine we have for sale. Contact us for more information.

Overview

  • brand: Mazak
  • year: 2001
  • MODEL: Integrex 200 IIY
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: MAZATROL

Technical Information - Mazak Integrex 200 IIY

General Data

  • Measurements width: 2100 MM
  • Measurements depth: 3500 MM
  • Measurements height: 2500 MM
  • Machine weight: 7000 KG

Control Unit

  • Brand: MAZATROL
  • Model: PC Fusion 640 MT

Main drive

  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 22 kW / 15 kW
  • Number of axis: 5

Movement

  • X-AXIS Movement: 530 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: ± 70 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 1065 mm
  • Z-AXIS Rapid traverse: 30 m/min
  • B-AXIS Movement: Continuously orientable 0.001° degrees MM

Tools

  • Slots in storage: 36

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turning diameter: 350 mm
      • - Turning length: 1020 mm
      • - Bar passage: 65 mm
      • - Tool attachment: capto c6
      • - Tail stock available
      • - High pressure coolant
      • - Pressure value: 15 bar
      • - Presetting
    • Qualitative Machine Benefits:
      • - Condition: overhauled
      • - Multitasking capability
      • - 5-axis continuous machining

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
