DOOSAN - Lynx 235IISI-TUR-DOO-2022-00001

Name: DOOSAN Lynx 235II
Brand: DOOSAN
SKU: SI-TUR-DOO-2022-00001
Price: 5269000 INR
Availability: InStock

Rs. 5,269,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Lynx 235II For Sale | gindumac.com

Show in original language

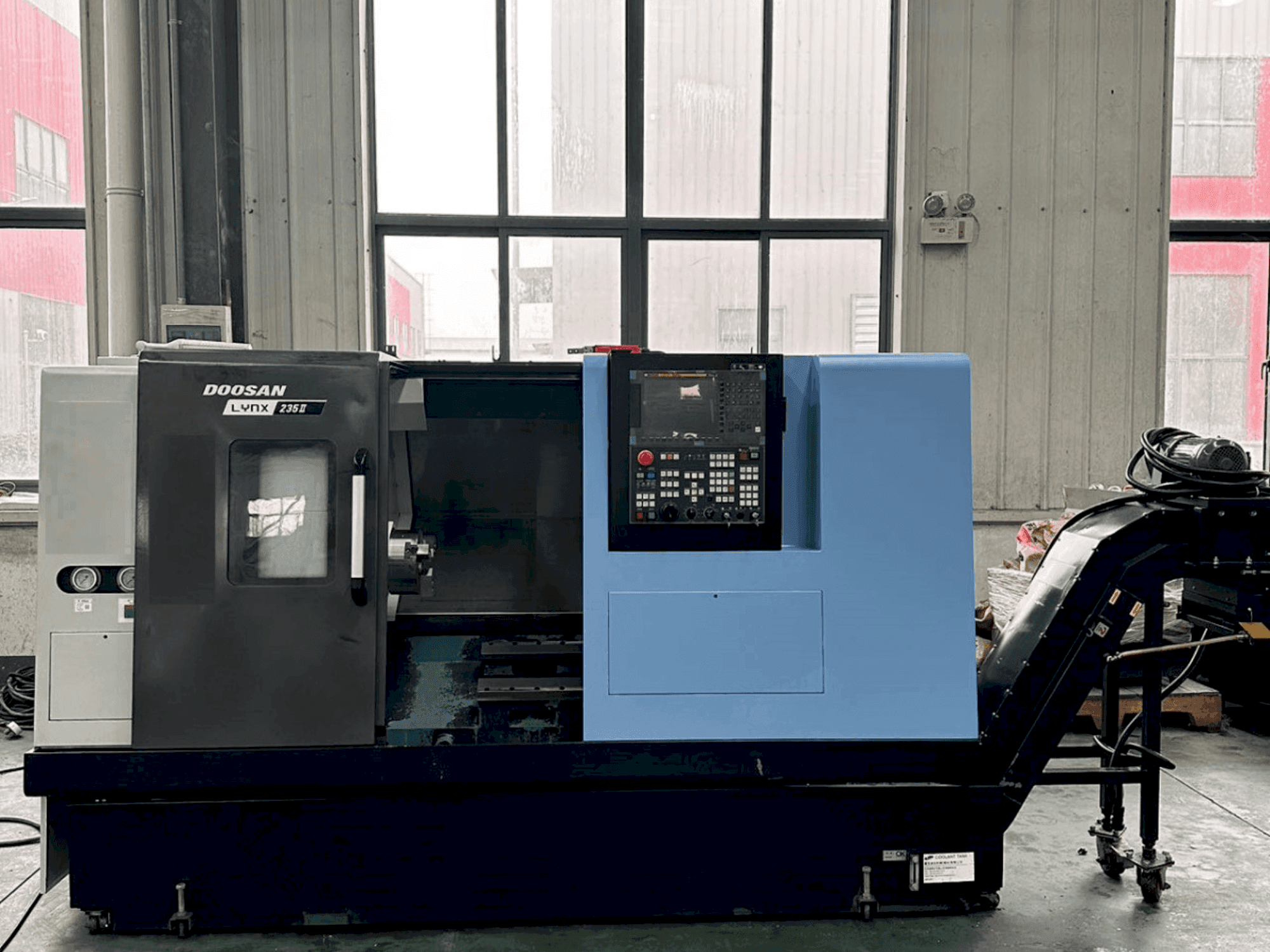

This DOOSAN Lynx 235II was manufactured in 2022. A robust horizontal turning machine featuring a 8 inch chuck, it handles a max turning diameter of 320 mm and length of 525 mm. With a bar working diameter of 65 mm and rapid traverse rates up to 36 m/min, it's ideal for efficient operations. If you are looking to get high quality turning capabilities consider the DOOSAN Lynx 235II machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2022
MODEL: Lynx 235II
production hours: 1025
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN Lynx 235II

General Data

Measurements width: 1620 mm
Measurements depth: 2795 mm
Measurements height: 1650 mm
Machine weight: 3500 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 15 kW
Number of axis: 2

Movement

X-AXIS Movement: 175 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 36 m/min

Turret

Number of turrets: 1

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck: 8 inch
- - Swing over bed: 510 mm
- - Swing over saddle: 290 mm
- - Recommended turning diameter: 210 mm
- - Max. Turning diameter: 320 mm
- - Max. Turning length: 525 mm
- - Bar working diameter: 65 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
