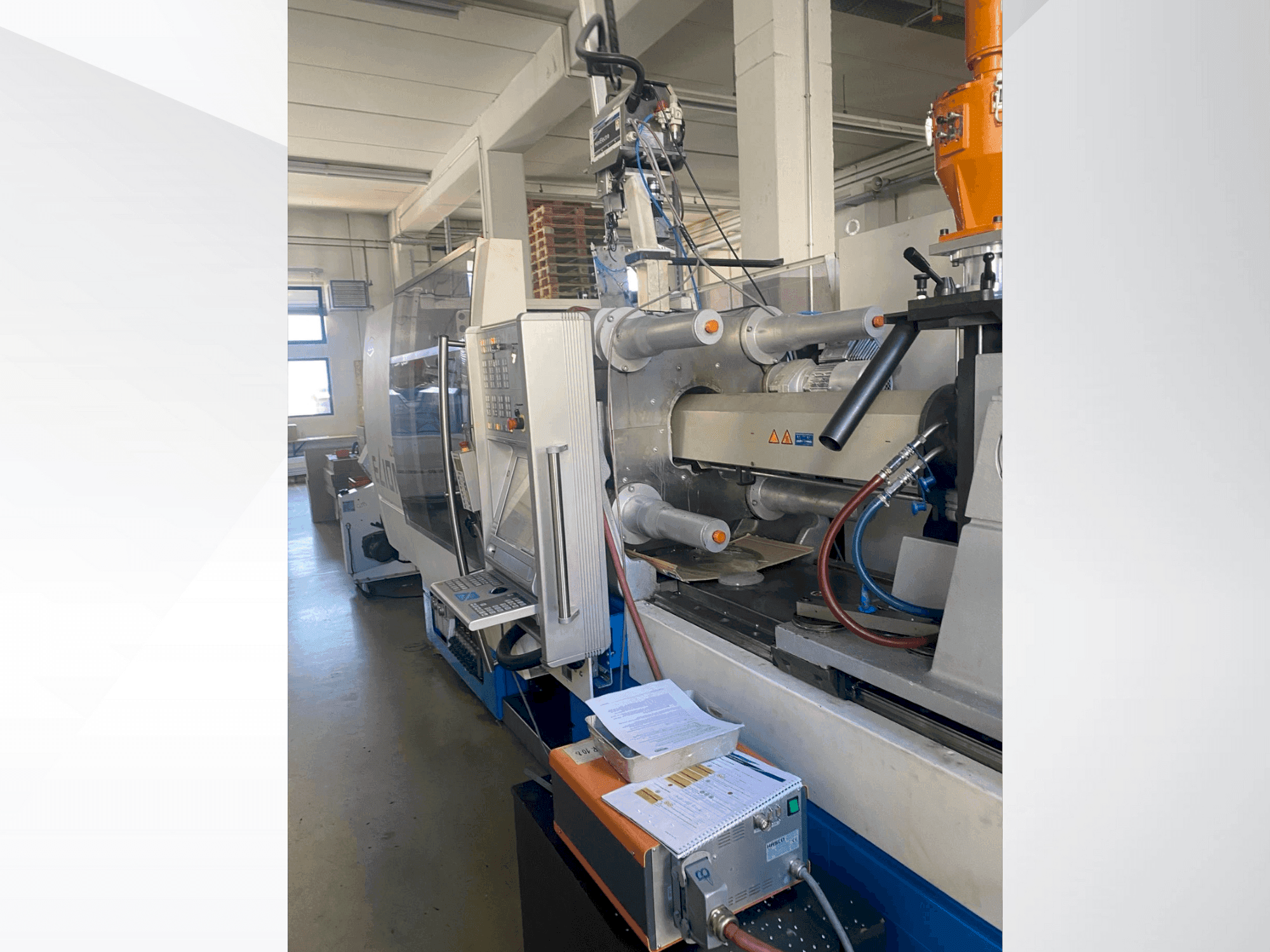

Front view of Netstal ELION 1200-530 PM  machine

Netstal - ELION 1200-530 PMCH-INJ-NET-2021-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Netstal ELION 1200-530 PM hydraulic injection moulding machine was manufactured in 2021. It features a clamping force of 1200 KN, a screw diameter of 45 mm, and a maximum injection speed of up to 450 mm/s. With a shot weight capacity of 244.1 g and a heating capacity of 20.9 kW, this machine is ideal for precision molding tasks. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

  • brand: Netstal
  • year: 2021
  • MODEL: ELION 1200-530 PM
  • application type: Injection Moulding
  • Location: Switzerland
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - Netstal ELION 1200-530 PM

General Data

  • Measurements width: 1780 mm
  • Measurements depth: 5330 mm
  • Measurements height: 2044 mm
  • Machine weight: 10100 kg

Injection Unit

  • Screw diameter: 45 mm
  • Shot weight: 244.1 g (PS)
  • Injection pressure: 2086 bar
  • Screw speed: 525 rpm
  • Heating capacity: 20.9 kW

Clamping unit

  • Clamping force: 1200 kN
  • Opening stroke: 400 mm
  • Distance between bars: 460 x 460 mm
  • Mould height min: 250 – 550 mm
  • Mould height max: 450 – 750 mm
  • Ejector stroke: 120 mm
  • Ejector force for / back: 33 kN

    Additional equipment

    • - Core pull: 0 units

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max metering stroke: 160 mm
        • - Max shot volume: 254. 5 cm³
        • - Standard injection flow rate: 397. 6 cm³/s // power injection flow rate: 715. 7 cm³/s
        • - Max injection speed standard/power: 250 / 450 mm/s // max screw speed force/speed/master: 350 / 525 / 550 rpm
        • - Max torque force: 700 nm // max torque speed: 490 nm // max torque master: 700 nm
        • - Opening force: 1200 kn
        • - Max mold weight: 1556 kg
        • - Dry cycle stroke: 1. 3 – 322 seconds per mm
        • - Nozzle contact force: 25 / 50 kn
        • - Nozzle retraction stroke: 510 mm
      • Qualitative Machine Benefits:
        • - High injection pressure: 2086 bar
        • - High injection flow rate: 397. 6 cm³/s (standard), 715. 7 cm³/s (power)

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
