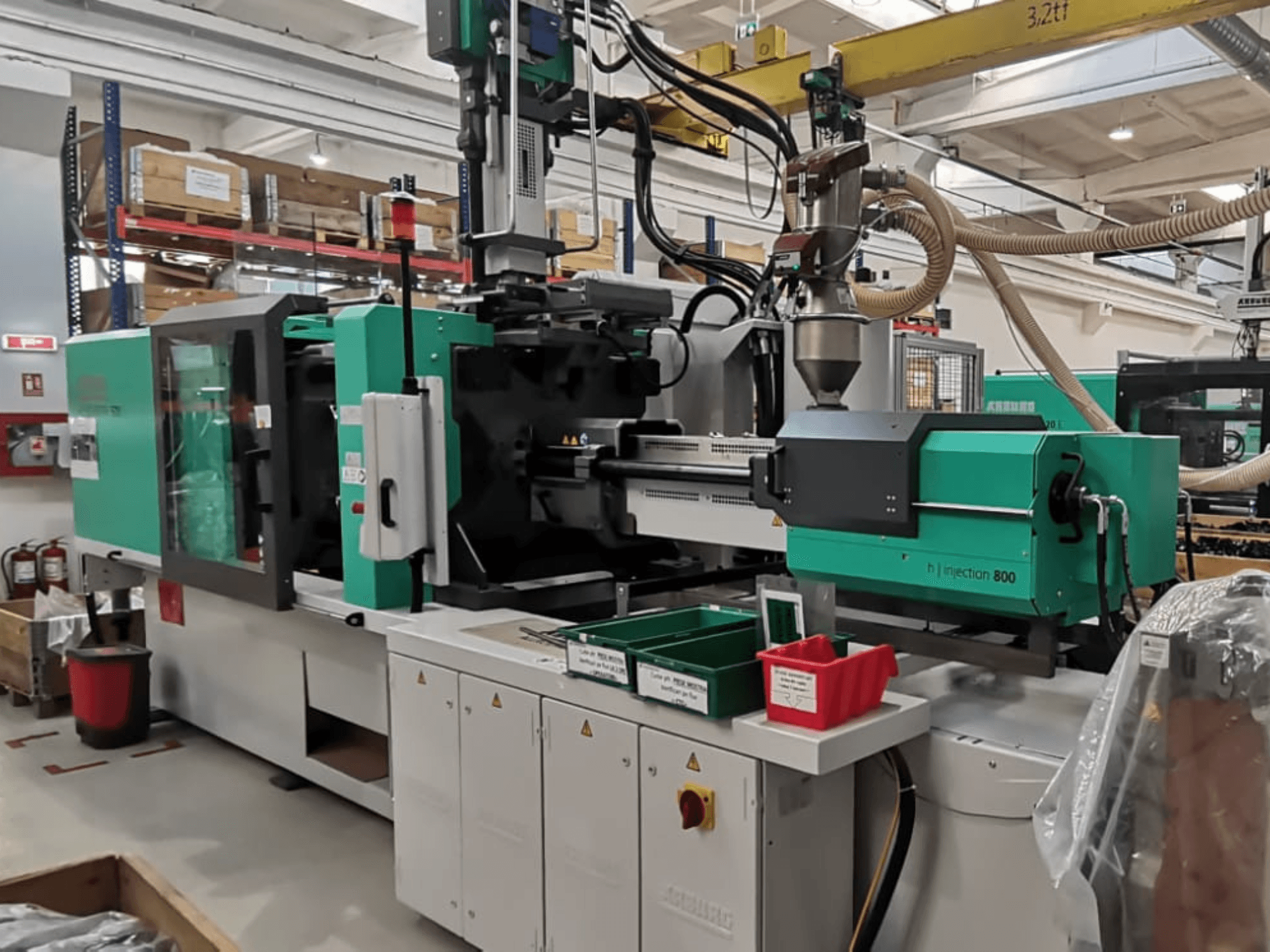

This Arburg 570 S 2200-800/290 was manufactured in 2020. It features a hydraulic drive system and the Selogica control system for precise operations. With a clamping force of 2,200 kN and a screw diameter of 40 mm, it is ideal for detailed injection moulding tasks. Consider the opportunity to buy this Arburg 570 S 2200-800/290 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2020
- MODEL: 570 S 2200-800/290
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg 570 S 2200-800/290
Technical Specification
- Clamping Force: 2200 kN
- Max. Shot Weight: 172 g
- Screw Diameter: 70 mm
Additional Information
Clamping unit
Distance between tie bars: 570 × 570 mm
Opening stroke: 650 mm
Ejector force: 70 kN
Ejector stroke: 200 mm
Injection unit
Injection unit size: 290
Injection pressure: 2,500 bar
Shot volume: 188 cm³
Drive & control
Drive system: Hydraulic
Control system: ARBURG Selogica
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
