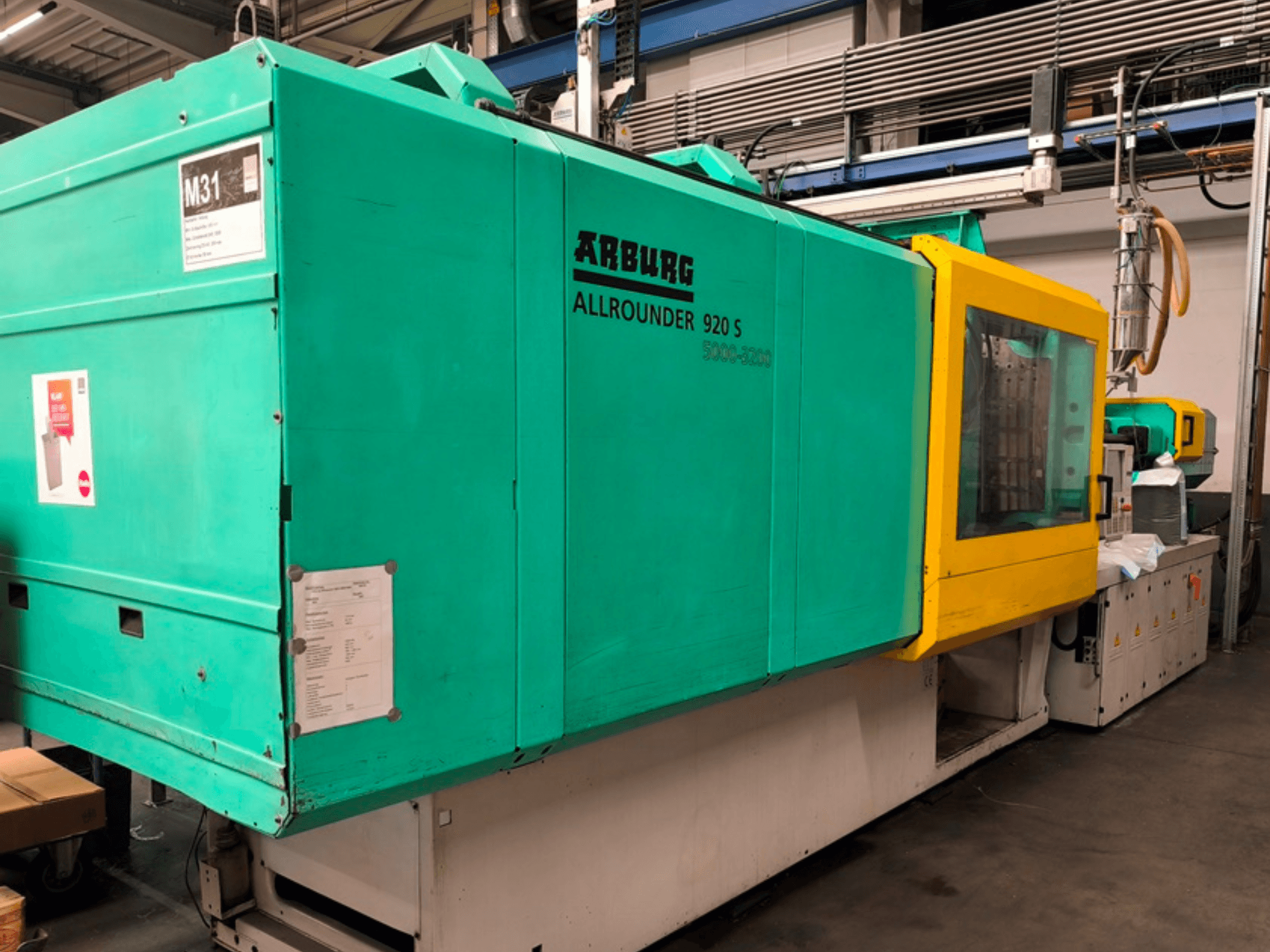

Arburg - Allrounder 920S 5000-3200+ robot + conveyor beltDE-INJ-ARB-2007-00015

• Maximum mold opening force: 150 kN

• Enhanced opening force: 100 / 1,000 kN

• Opening stroke: up to 900 mm

• Mold height: min. 400 – max. 1,050 mm

• Distance between platens: 1,300 – 1,950 mm

• Tie-bar spacing (H × V): 920 × 920 mm

• Platen size (W × H): 1,280 × 1,280 mm

• Movable platen weight (half): max. 8,000 kg

• Ejector force: max. 800 kN

• Ejector stroke: max. 250 mm

Hydraulics / Drive

• Hydraulic pump motor power: 75 kW

• Dry cycle time (opening stroke 5): 4.5–6.44 s

• Installed total power: 96 kW

• Color: Structural light gray / mint green / red-yellow

• Control cabinet safety standard: DIN EN 60204

• Socket combination: 1 × Schuko, 1 × CEE

Injection Unit

• Screw diameters: 70 / 80 / 90 mm

• Effective screw length (L/D): 23 / 20 / 18

• Maximum shot volume: 1,232 / 1,608 / 2,036 cm³

• Maximum shot weight (PS): 1,125 / 1,469 / 1,860 g

• Plasticizing capacity (PS): 185 / 215 / 250 kg/h

• Maximum injection pressure: 2,500 / 2,000 / 1,580 bar

• Injection rate:

  • Without accumulator: 290 / 380 / 482 cm³/s

  • With accumulator: 1,188 / 1,552 / 1,964 cm³/s

• Holding pressure: max. 350 / 200 bar

• Screw speed: 47 / 54 / 61 rpm

• Screw torque: 3,500 Nm

• Nozzle contact force: max. 110 kN

• Nozzle stroke: max. 675 mm

• Installed barrel heating power: 6 × 5,500 + 4,300 W

• Installed nozzle heating power: 1,100 W

• Oil fill volume: 590 liters

• Motor + heating fuse rating: 200 A

• Motor fuse: 125125 A

• Heating fuse: 63 A
