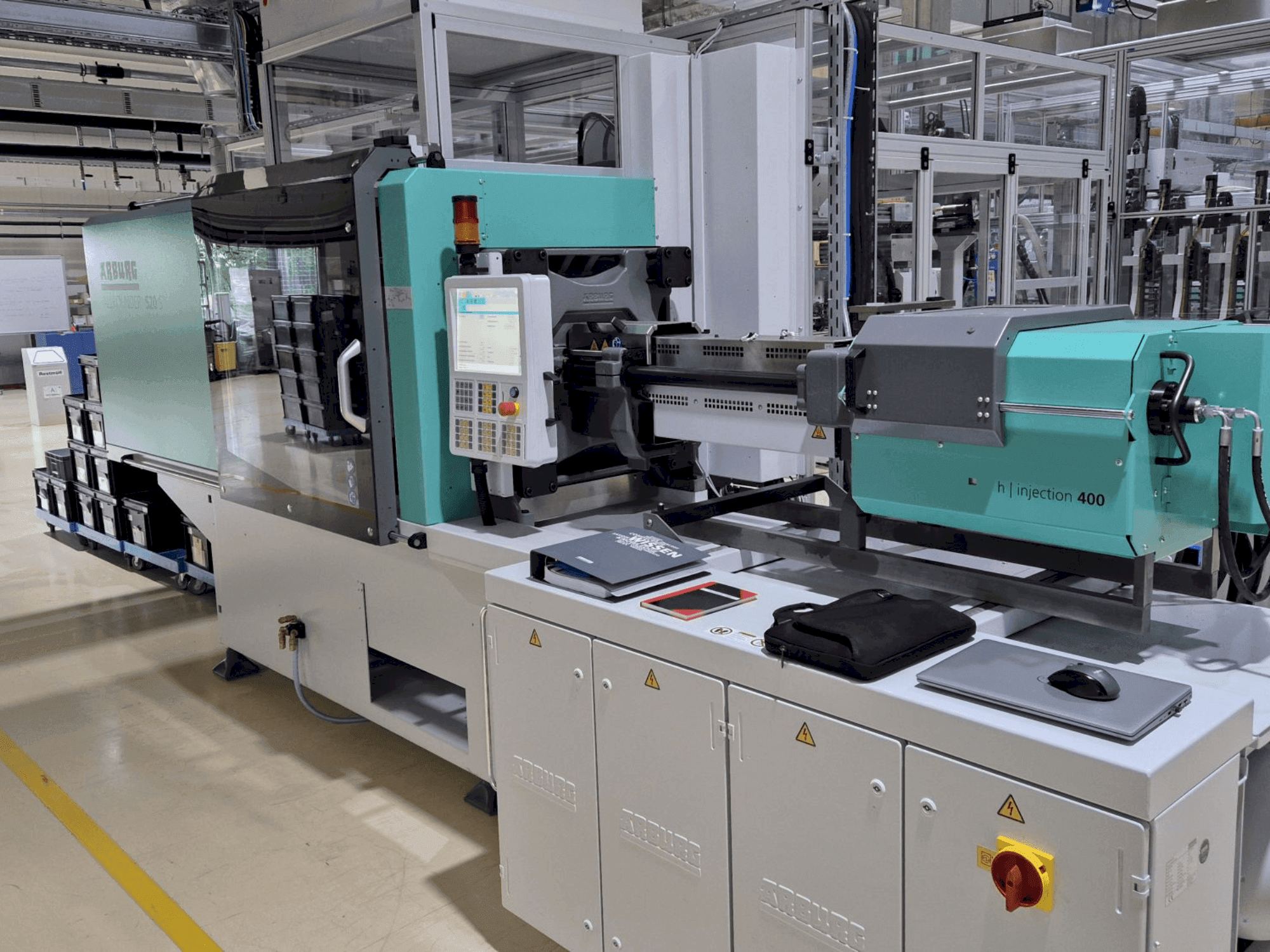

This 3-axis Arburg Allrounder 520S 1600-400 was manufactured in 2021. It features a screw diameter range of 35-45 mm and a clamping force up to 1600 kN. The machine includes a removal robot and an enclosure with a FilterFanUnit, ensuring clean operations. Ideal for precision plastic processing, it offers a mold clamping height of 250 mm and platen spacing of 825 mm. Contact us for more information about this machine.
Overview
- brand: Arburg
- year: 2021
- MODEL: Allrounder 520S 1600-400
- production hours: 67
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- control unit brand: ARBURG
Technical Information - Arburg Allrounder 520S 1600-400
Control Unit
- Control Brand: ARBURG
- Control Model: SEOLOGICA direct
Dimensions
- Machine Weight: 5900 kg
Technical Specification
- Clamping Force: 1600 kN
- Screw Diameter: 45 mm
Additional Information
Additional equipment
Cooling water connection: Max. temperature: 30 °C, Min. Δp: 1.5 bar | DN 25
Machine Benefits
Technical Machine Benefits
Thermoplastic cylinder: 45 mm, high wear resistant
CrN coating (screw and non-return valve)
Standard screw coupling, square geometry
Open nozzle 45 mm
Larger holding pressure pump
Selogica direct control system
Technology level 2, servo-controlled with 2 control pumps
Ejector pressure P/Q controlled
Continuous oil cooling and filtration
Nozzle contact force controlled, programmable (1st injection unit)
Clamping plate set, central 125 mm
Machine raised by 100 mm (increased vibration elements)
8 programmable digital inputs/outputs
6 electric mould heating control circuits
1 additional heating control circuit (nozzle or adapter)
4 manually adjustable cooling circuits
Controlled machine cooling circuits
aXw Control ScrewPilot (1st injection unit)
Water-cooled control cabinet
Reinforced screw coupling with multi-spline geometry
Injection speed with ramp function (F90302 = 1)
Automatic heater standby switching
Sound pressure level: 70 db(a) | ± 3
Extra Information
Screw Diameter: 45 mm
Injection Pressure (Max.): 1580 bar
Shot Weight (Max. g PS): 232 g
Heating Output 9.7 kW | 5 zones
Net Machine Weight: 5900 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
