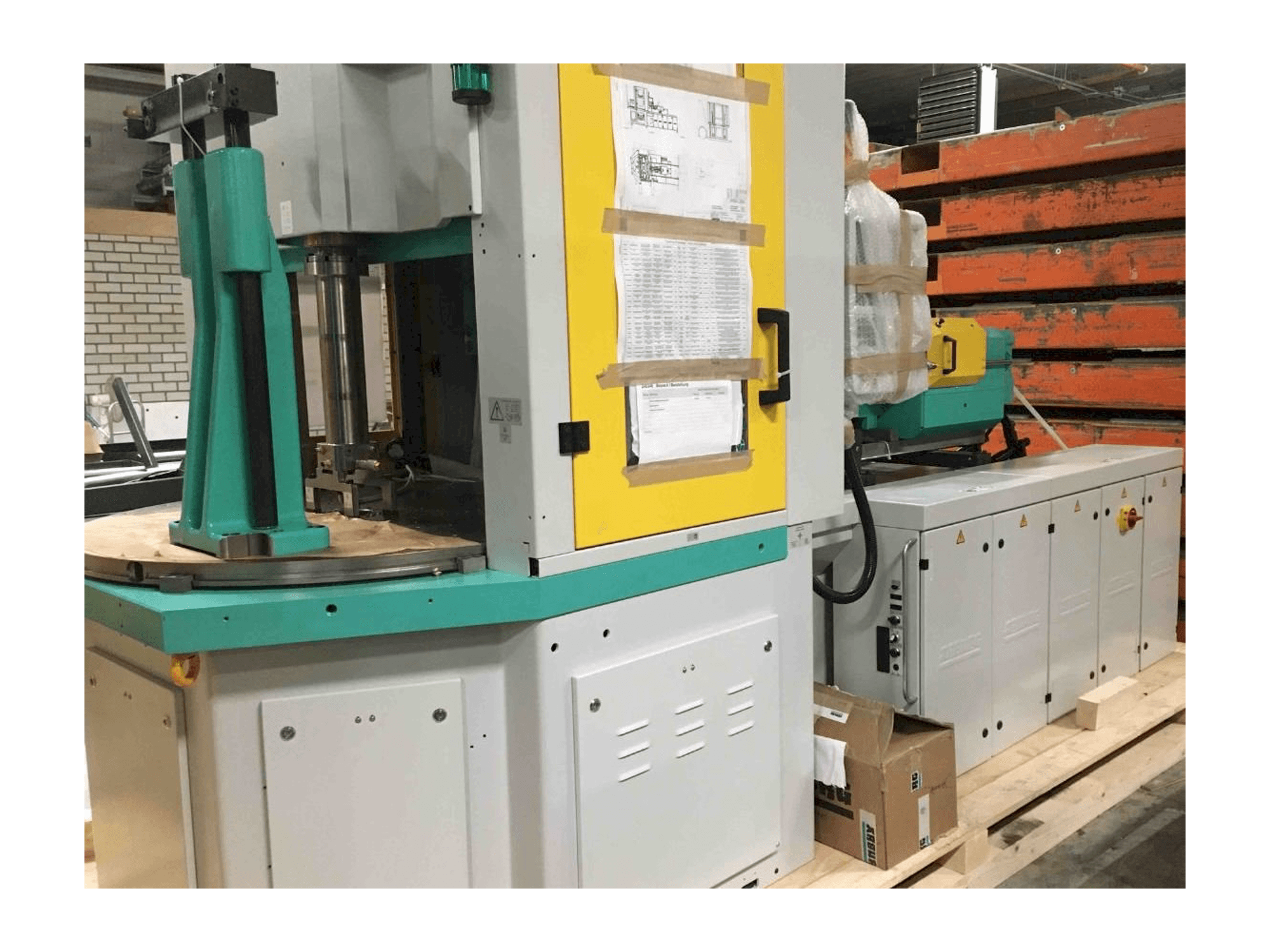

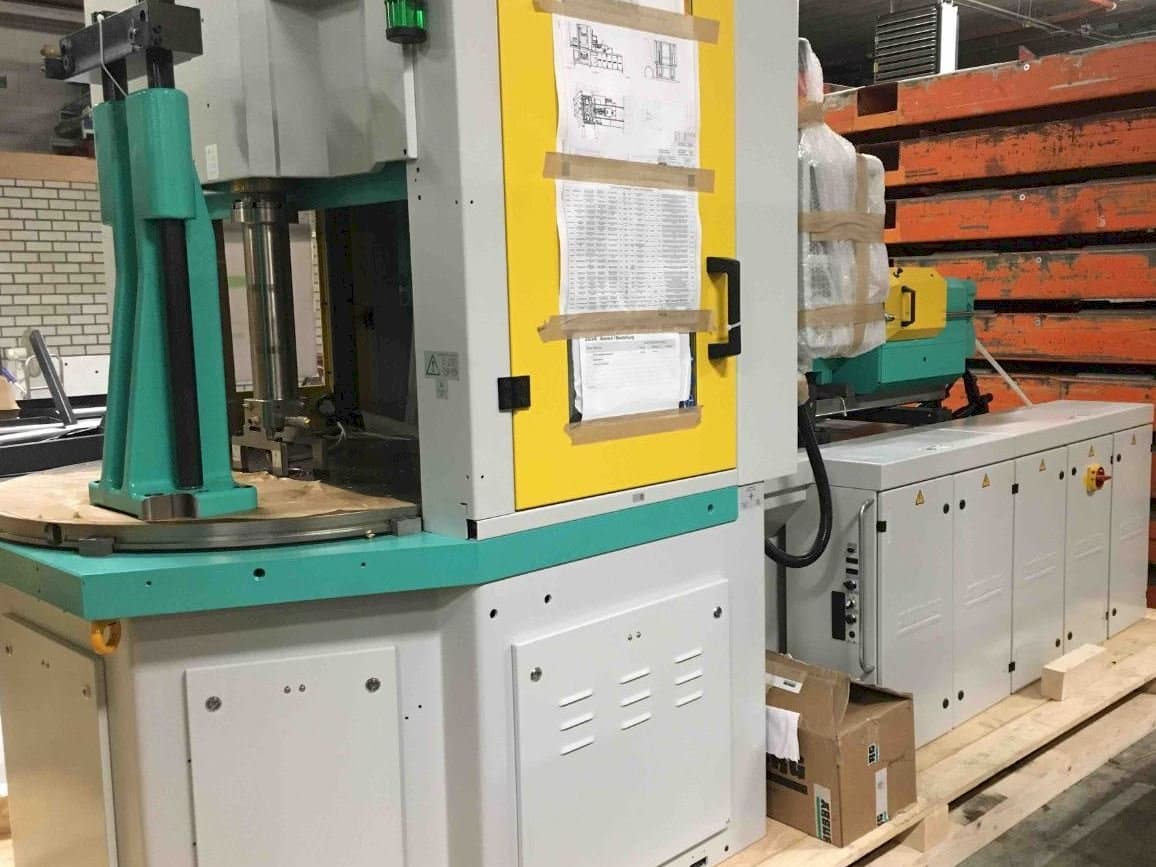

- Arburg ALLROUNDER 1200 t 1000 - 400 Injection moulding machine
This Arburg ALLROUNDER 1200 t 1000 - 400 Injection moulding machine was manufactured in the year 2018 in Germany. It has 58 production hours. The machine has a clamping force of 1000 kN, machine like new, used only for testing. Machine needs to be CE certified by the customer, we have a quote from a third party starting at 2.000€.
Overview
- brand: Arburg
- year: 2018
- MODEL: ALLROUNDER 1200 t 1000 - 400
- production hours: 58
- application type: Injection Moulding
- Location: Netherlands
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg ALLROUNDER 1200 t 1000 - 400
Dimensions
- Machine Depth: 1718 mm
- Machine Height: 3910 mm
- Machine Weight: 7600 kg
Technical Specification
- Clamping Force: 1000 kN
- Screw Diameter: 35 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Hubvolume [cm^3]: 154
- L/d ratio screw: 23
- Max. Mold width [mm]: rotating table diam. 1200mm
- Max. Mold height [mm]: 400 (combination with mouldstroke)
- Diameter locating ring(s) [mm]: 125
- Nose radius: r40
- Number of cooling circuits: injection: 1, turning table: 3
Extra Information
The machine was part of a production cell and would need to be CE certified by the customer. We have received target prices for certifiying by a consultancy who could do this starting from 2.000€.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
