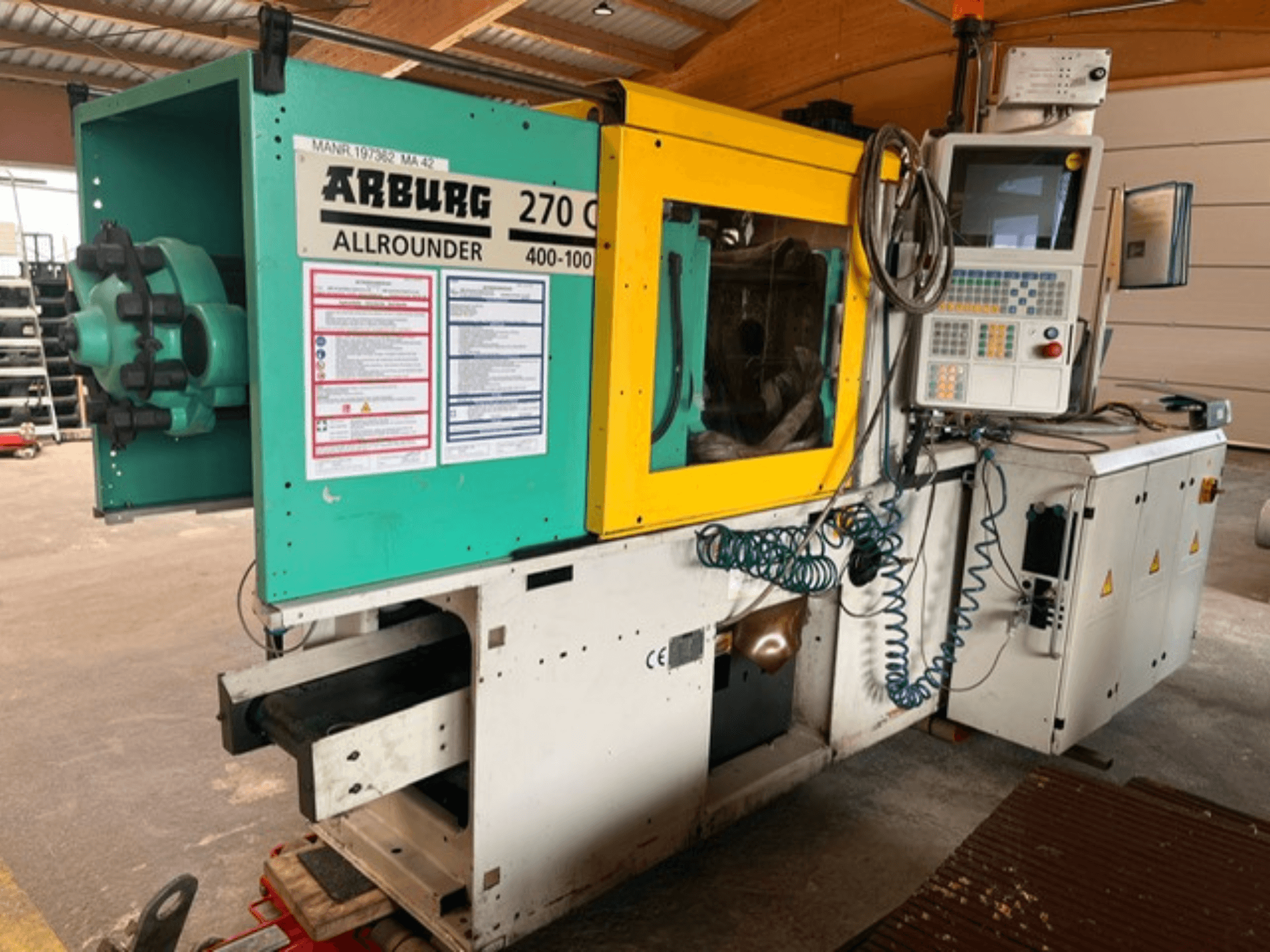

This 3-axis Arburg 270 C hydraulic injection moulding machine was manufactured in 2005. It features a total connected load of 54 kW and an integrated part discharge conveyor belt for efficient operation. The machine is CE marked and includes a Selogica control panel for user-friendly operation. If you are looking to get high-quality injection moulding capabilities, consider the Arburg 270 C machine we have for sale. Contact us for further details.
Overview
- brand: Arburg
- year: 2005
- MODEL: 270 C
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg 270 C
Technical Specification
- Clamping Force: 400 kN
Additional Information
- Model: ALLROUNDER 270 C 400 - 100
- Operating Voltage: 400 V 3~ 50 Hz
- Control Voltage: 230 V ~ 50 Hz / 24 V DC
- Motor Rated Current: 59 A
- Heating Rated Current: 31 A
- Total Rated Current: 90 A
- Total Connected Load: 54 kW
- Control System: Selogica Control Panel
- Additional Equipment: Integrated part discharge conveyor belt
- Space Requirement / Footprint: 3.2 qm
- Total Power Requirement: 15 kW
- Lubricating Oil Type: Hyspin SP32 (Hazard class A2)
- Oil Capacity: 160 l
- Standards Compliance: CE Marked
- Equipment: Integrated conveyor belt, control panel terminal
- Optional: A cooling system and a second machine are available for an additional charge.
- Until now, both machines have been running on the same cooling system.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
