Arburg - Allrounder 570 C 2000-675CZ-INJ-ARB-2002-00002

Name: Arburg Allrounder 570 C 2000-675
Brand: Arburg
SKU: CZ-INJ-ARB-2002-00002
Price: 1803045 INR
Availability: InStock

Rs. 1,803,045

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 570 C 2000-675 For Sale

Show in original language

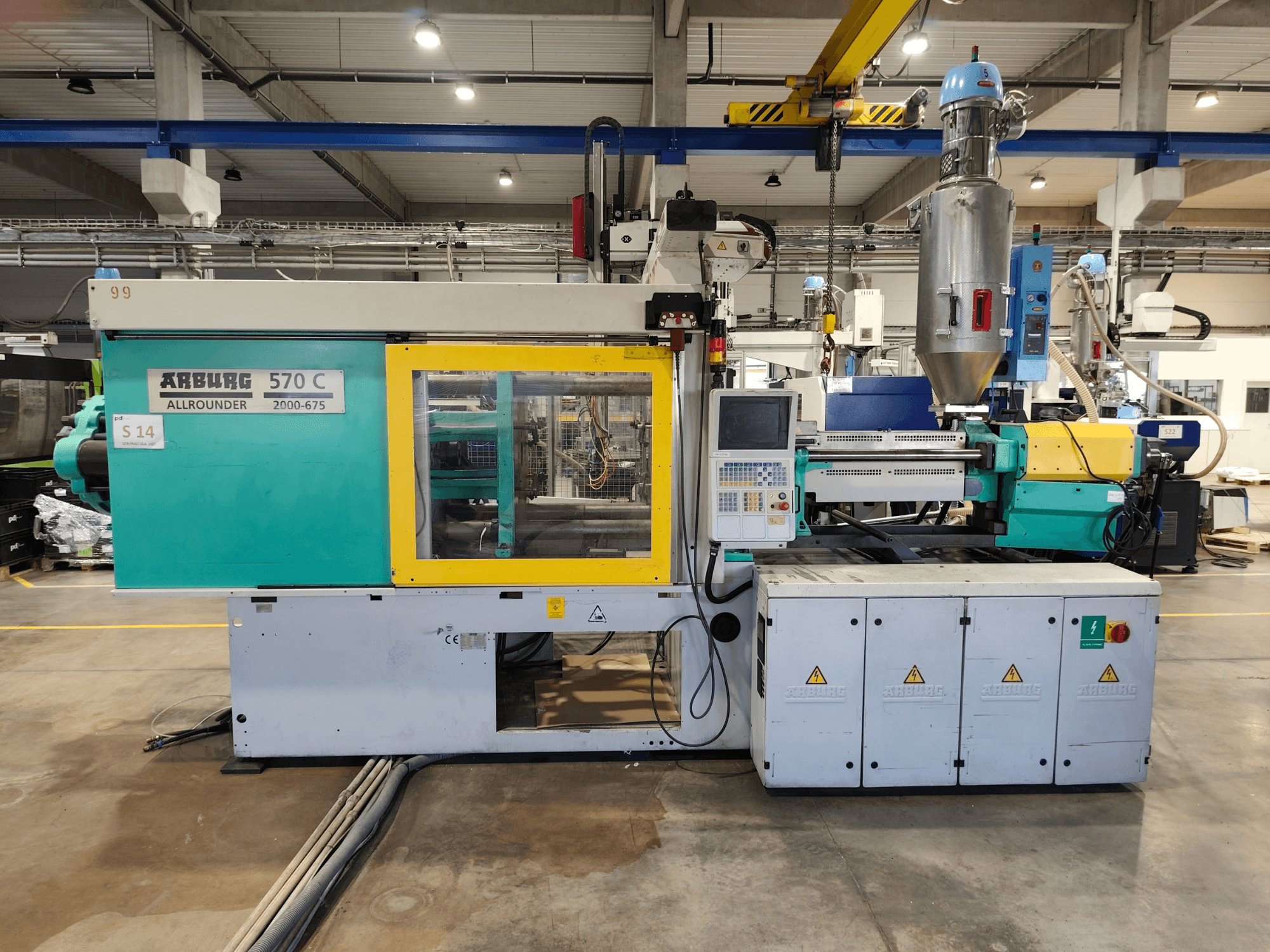

Hydraulic injection moulding machine manufactured in 2002. This Arburg Allrounder 570 C 2000-675 features a clamping force of 2,000 kN and a maximum mold height of 950 mm. It includes a screw diameter of 50 mm and a maximum injection volume of 353 cm³. If you are looking to get high-quality injection moulding capabilities, consider the Arburg Allrounder 570 C 2000-675 machine we have for sale. Contact us for further details.

Overview

brand: Arburg
year: 2002
MODEL: Allrounder 570 C 2000-675
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 570 C 2000-675

Technical Specification

Clamping Force: 2000 kN
Screw Diameter: 50 mm

Additional Information

Space between columns: 570 x 570 mm
Maximum mold height: 950 mm
Minimum mold height: 300 mm
Maximum injection volume: 353 cm³
Maximum injection pressure: 2,080 bar
Centering ring: 125 mm
Hot runners in the machine: 9
Core pullers: 1
Pneumatic valves: 1

Additional equipment

Wittmann W821 robot (year 2018)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
