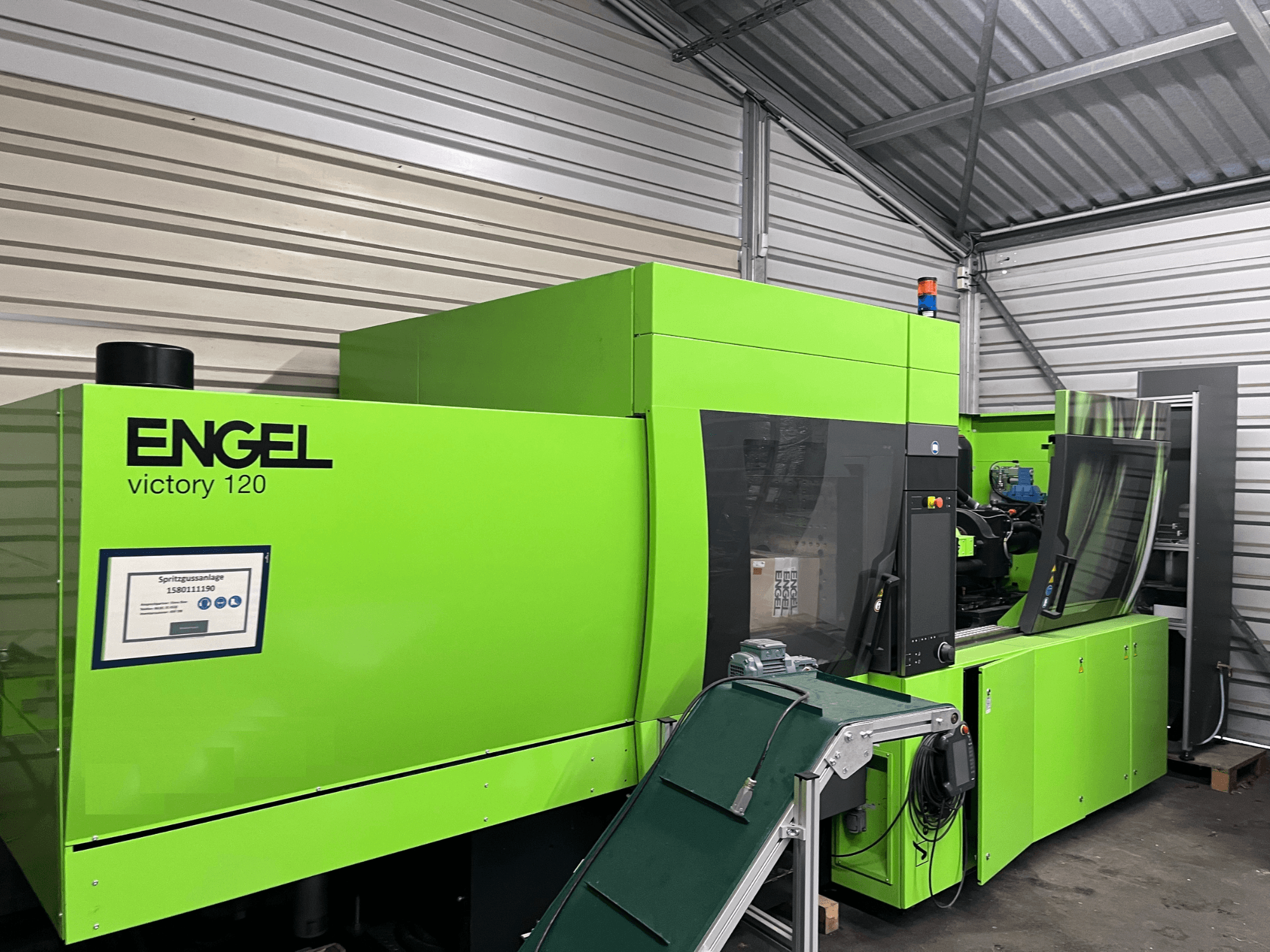

Hydraulic injection moulding machine manufactured in 2019. This Engel Victory 120 BMG features a clamping force of 120 t and a tie-bar-less design, ensuring efficient operation. It includes a high-speed injection unit and an advanced CC300 control system with a 21.5" full HD touchscreen. If you are looking to get high-quality injection moulding capabilities, consider the Engel Victory 120 BMG machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Engel
- year: 2019
- MODEL: Victory 120 BMG
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel Victory 120 BMG
Dimensions
- Machine Height: 2065 mm
- Machine Length: 5259 mm
- Machine Weight: 8450 kg
- Machine Width: 2200 mm
Technical Specification
- Clamping Force: 1200 kN
Additional Information
Tie-bar-less design
Machine hours: on-time 2,767 h; estimated operating time ~200 h (never used for regular series production)
Oil filling: 300 L
Power supply: 3x400 V + N + PE / 50 Hz
Control system: CC300, 21.5" full HD touchscreen
Hydraulic system: ecodrive SHV3-HSI servo-hydraulic
High-speed injection with accumulator
Oil cooler: standard
Injection unit size: hydraulic 200
Platen size: standard Euromap
Mould height: increased +200 mm
Opening stroke: extended +200 mm
Ejector system: platen ejector
Core pull: hydraulic and pneumatic
Cooling water connections: machine and mould separate
Flow regulator: 0–10 l/min
e-flomo temperature control system: 4 and 6 circuits
Remote service: e-connect.24 (2 years)
Additional equipment
Robot: ENGEL viper 12 RC300
Max payload: 12 kg
Strokes: Z 1,160 mm; X 600 mm; Y 900 mm
C axis: pneumatic 0–90°, 30 Nm
Max system height: 3,600 mm
Min deposit height: 1,000 mm
Integrated conveyor belt
Belt width: 350 mm
Belt temperature resistance: up to 300 °C
Temperature control unit: HB-Therm Thermo-5 HB-160Z1
Max temperature: 160 °C
Heating power: 8.0 kW
Pump: 0.50 kW, 30 L/min, 52 m
Cooling capacity: 30 kW @ 60 K
Vacuum pump: Pfeiffer DUO 35, 32 m³/h
Induction heating system: 50 kW, 50–200 kHz
Melting chamber: max ingot weight 100 g
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
