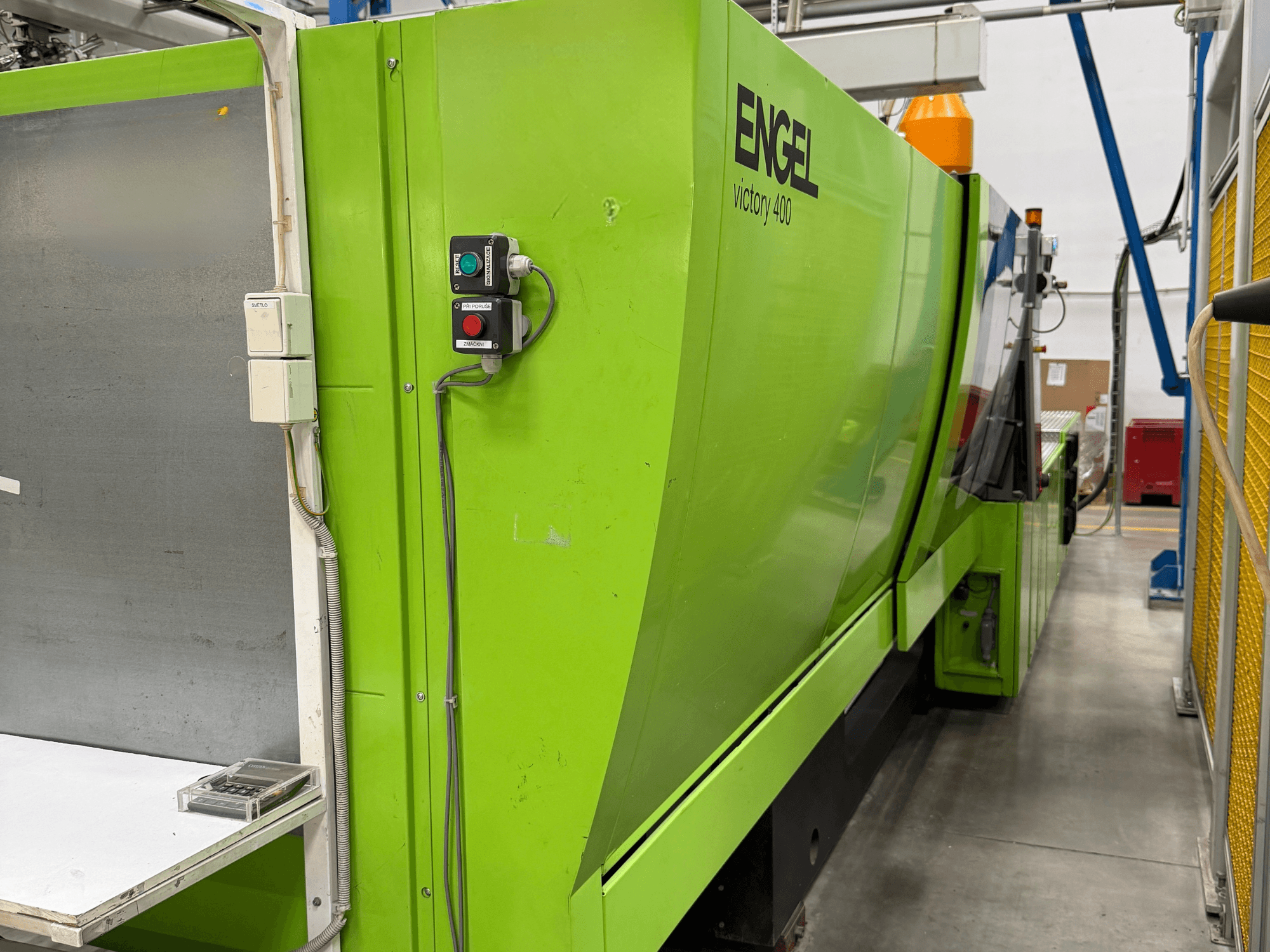

Engel - Victory 3550/400 techCZ-INJ-ENG-2016-00002

• Injection unit: 3550

• L/D ratio: 25

• Control unit: ENGEL CC300 (21.5" Full HD touchscreen)

• Drive system: ECODRIVE SHV3-HSI, 2 pump systems, accumulator

• Electrical connection: 3 x 400 V + N + PE, 50 Hz

• Nominal connected load: approx. 282 kW

• Clamping system: Tiebarless, fully hydraulic ENGEL clamping system

• Centering: 160 mm

• Ejector stroke: 250 mm

• Hydraulic core pulls: 2 on moving platen, 2 on stationary platen

• Vacuum/compressed air circuits: 4 on moving platen with Venturi nozzle and pressure switch

• Pneumatic valve: 2/2-way valve R 1/4" on stationary platen

• Pneumatic mold valve control: 4-fold FESTO, up to 16 bar

• Mold heating: 32 control zones, max heating power 43 kW

• Screw drive: Electromotoric, speed-controlled, max 150 rpm, rated power 47 kW, torque 3700 Nm

• Nozzle radius: 15 mm

• Nozzle bore: 6 mm

• Nozzle contact force: approx. 150 kN

• Metering stroke: 390 mm

• MuCell equipment: MuCell Advanced Package; cylinder L/D 24/25; MuCell G25 screw Ø 80 mm; gas injector bore; melt pressure sensor; RS-485 interface to SCF gas plant; emergency stop connection

• Mold temperature control: 3 ENGEL flomo distributors with 8 zones each (24 monitored circuits total)

• Hydraulic tank capacity: Main tank approx. 690 l; suction tank approx. 290 l

• Robot interface: Euromap 67 / AN-146

• Languages: Czech and German

Additional equipment

• GEKU automation with conveyor belts (included)
